24 LED Waterproof Wall Wash Par Light City Color

24 LED Waterproof Wall Wash Par Light City Color

The 24 LED Waterproof Wall Wash Par Light City Color is a 200W outdoor colour-wash fixture designed for building facades, wedding venues, outdoor stages, gardens and architectural lighting. Its 24 × 18W RGBW 4-in-1 LEDs combine red, green, blue and dedicated white output, while the IP65-rated enclosure makes the fixture suitable for protected outdoor event and architectural applications.

With 4/8-channel DMX512, Sound, Auto, Manual and Master/Slave operation, 0–100% electronic dimming and manually adjustable tilt, the fixture can be used for permanent-style facade illumination or temporary event lighting where broad colour coverage is required.

Technical Specifications

Specification	Details
Product Type	Waterproof LED Wall Wash / City Color PAR Light
Fixture Power Consumption	200W
LED Quantity	24 LEDs
LED Rating	24 × 18W
LED Type	RGBW 4-in-1
Colours	Red / Green / Blue / White
DMX Modes	4CH / 8CH
Control Protocol	DMX512
Operating Modes	DMX512 / Sound / Auto / Manual / Master-Slave
Dimming	Electronic 0–100%
Tilt	Manually adjustable
Protection Rating	IP65
Input Voltage	AC100–240V
Frequency	50–60Hz
Product Dimensions	320 × 220 × 270 mm
Product Weight	7.4 kg
Recommended Applications	Facades, outdoor events, stages, buildings and architectural colour wash

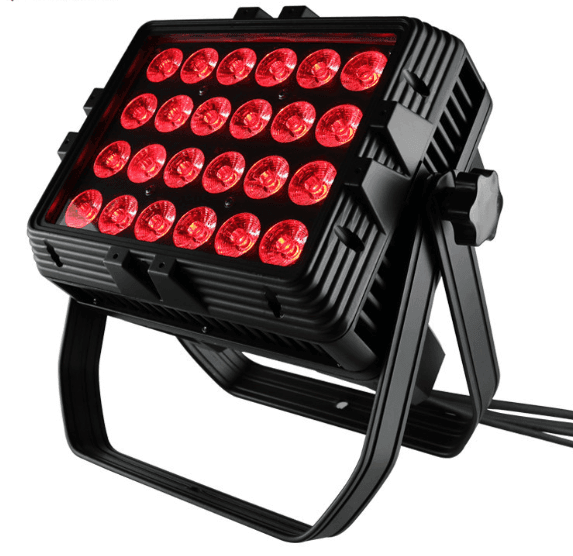

24 × 18W RGBW 4-in-1 LED System

The fixture uses 24 individual 18W RGBW 4-in-1 LED packages.

Each LED combines four colour elements:

• Red

• Green

• Blue

• White

RGBW provides significantly more flexibility than a basic RGB colour system because the fixture has a dedicated white component rather than generating white only by mixing red, green and blue.

This makes it useful for both saturated colour effects and cleaner architectural white-light looks.

Dedicated White Output

The W in RGBW represents a dedicated white LED component.

That can be useful when the fixture needs to move between colourful event lighting and more neutral illumination.

For example, a wedding venue may use:

• Warm-looking colour combinations during guest arrival

• Static architectural colours during dinner

• Brighter RGB effects during entertainment

• White illumination during setup or selected presentation moments

The exact white colour temperature and CRI are not published for this SKU, so Stagify should not advertise a specific Kelvin or CRI value.

200W Fixture Power Consumption

The complete fixture has a published electrical consumption of:

200W

This is the correct value to use for electrical load planning.

For example:

• 2 fixtures ≈ 400W

• 4 fixtures ≈ 800W

• 8 fixtures ≈ 1.6kW

These figures represent the wall-wash fixtures only.

Other stage lighting, audio equipment, LED screens and effects must be calculated separately.

Why 24 × 18W Does Not Mean 432W Fixture Consumption

Twenty-four LEDs rated at 18W each mathematically equal 432W of nominal LED-package capacity.

However, the exact manufacturer specification lists the complete fixture power consumption as 200W.

This can occur because high-power LED packages are not necessarily driven continuously at their maximum theoretical rating.

For the Stagify listing:

Use 24 × 18W for LED specification.

Use 200W for electrical fixture consumption.

Do not describe this product as a 432W fixture.

IP65 Waterproof Protection

The fixture carries a confirmed:

IP65 rating

This is one of the key differences between this product and conventional indoor PAR fixtures.

IP65 means the enclosure is designed for strong protection against dust and resistance to water jets, making it appropriate for many outdoor lighting applications.

This can include:

• Outdoor wedding venues

• Building facades

• Garden events

• Outdoor stages

• Hotel exteriors

• Entrance lighting

• Temporary architectural installations

IP65 does not mean the fixture is designed for underwater operation.

Built for UAE Outdoor Lighting Applications

Outdoor lighting equipment in the UAE faces conditions that indoor fixtures are not designed to handle, including:

• Fine dust

• Humidity

• Coastal air

• Outdoor event exposure

• Elevated temperatures

The supplier specifically places this model in its Waterproof Lights and Wall Washer Light ranges. Its wall-washer guidance recommends IP65 or IP66 protection for outdoor facade and architectural installations in the UAE.

That makes this fixture more appropriate for outdoor installations than an equivalent IP20 stage PAR.

IP65 Does Not Mean Submersible

The fixture should still be installed correctly.

Do not:

• Submerge it in water

• Install it inside fountains

• Leave electrical junctions in standing water

• Use damaged seals or connectors

• Assume ordinary indoor extension leads become waterproof

The IP rating of a lighting setup is only as useful as the weakest connection point.

Power and signal connections should therefore be protected appropriately when the fixture is used outdoors.

City Color Lighting for Buildings

The term City Color refers to the fixture's role as a high-output architectural colour-wash light.

Instead of projecting a small decorative spot, this type of fixture is intended to add broad colour to larger surfaces.

Typical targets include:

• Building facades

• Hotel exteriors

• Event entrances

• Architectural walls

• Pillars

• Scenic structures

• Outdoor stage backdrops

Multiple fixtures can be positioned along a building to create coordinated colour changes across a much larger surface.

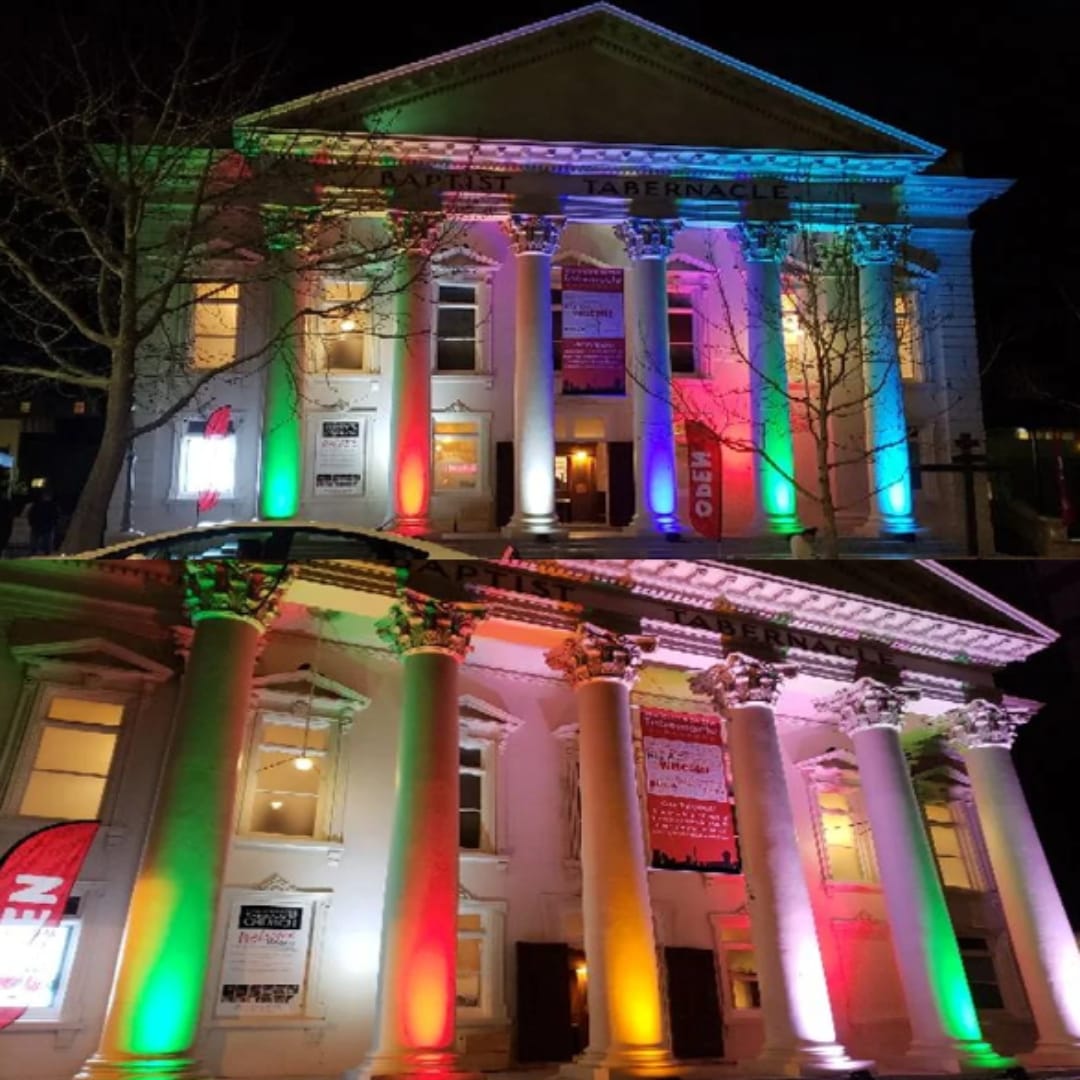

Architectural Facade Lighting

For facade work, fixture spacing and distance from the wall have a significant effect on the final appearance.

If a fixture is positioned very close to the surface, the wash may appear:

• Brighter

• More concentrated

• Less evenly blended

Moving the fixture farther away generally increases coverage and allows neighbouring fixtures to overlap more smoothly.

The exact beam angle for this model is not published, so final spacing should be tested on site rather than calculated from an assumed angle.

Manually Adjustable Tilt

The exact product description confirms a manually adjustable tilt angle.

This allows the installer to physically aim the wash upward, downward or toward a particular architectural feature.

This is useful for:

• Walls

• Columns

• Building elevations

• Stage scenery

• Outdoor signs

• Entrance structures

Unlike a moving head, however, the fixture does not automatically change its physical aiming angle during operation.

Once positioned, its direction remains fixed until manually adjusted.

Wall Washer vs Moving Head Wash

The two fixture types can both create wash lighting, but they are intended for different jobs.

Choose this Wall Wash City Color fixture when:

• The target surface stays in one position

• Building or facade lighting is required

• Outdoor protection matters

• A fixed wash direction is acceptable

• Multiple units will form a permanent or semi-permanent layout

Choose a Moving Head Wash when:

• The light must physically move during the show

• Pan and tilt cues are required

• Dynamic stage programming is the priority

• Different areas must be illuminated from one fixture

This product is better positioned around fixed architectural coverage, not moving effects.

Wall Washer vs Standard LED PAR

A conventional PAR is normally used as a point-source wash for:

• Performers

• Small stage areas

• Uplighting

• DJ setups

A City Color / wall-wash fixture is better suited to larger architectural surfaces and outdoor installations.

The Stagify catalogue therefore benefits from keeping both categories separate.

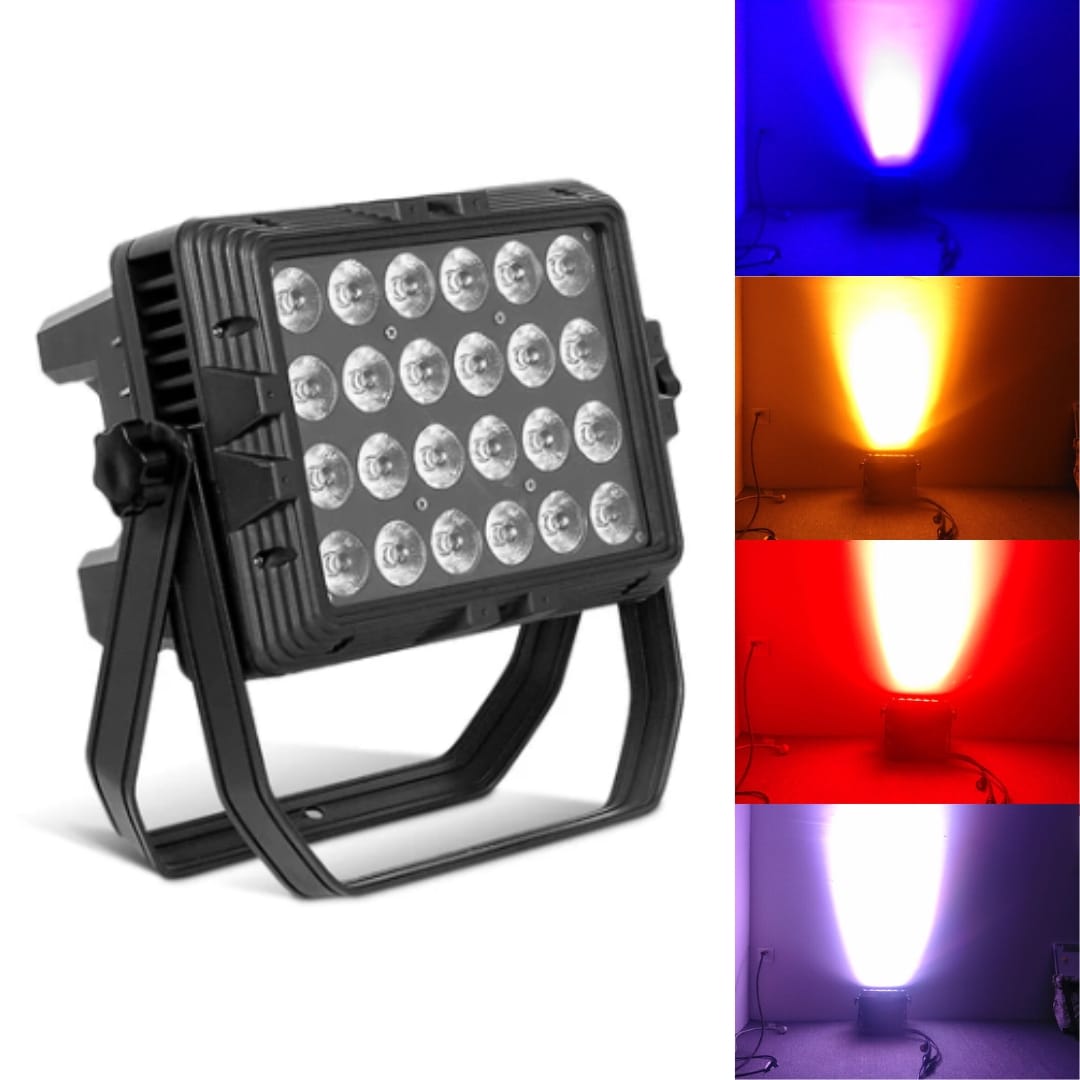

RGBW Colour Mixing for Event Design

DMX control allows red, green, blue and white intensities to be combined for different looks.

Possible uses include:

• Corporate brand colours

• Wedding themes

• National-day colours

• Hotel facade lighting

• Concert stage colour

• Seasonal decorations

• Product launches

Precise colour values depend on DMX settings and the physical LED output.

0–100% Electronic Dimming

The exact specification confirms:

0–100% electronic dimming

This allows the fixture intensity to be adjusted gradually.

Dimming is useful for:

• Evening fade-ins

• Stage transitions

• Matching neighbouring fixtures

• Reducing brightness for photography

• Creating slower architectural changes

DMX provides the most practical method for coordinating dimming across several fixtures.

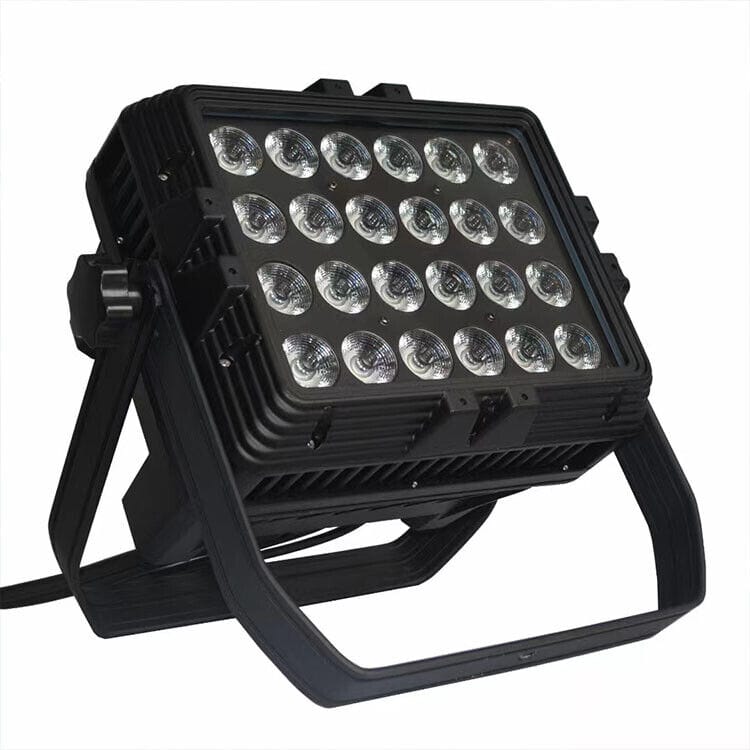

4-Channel DMX Mode

The fixture supports a 4CH DMX personality.

A four-channel mode is particularly efficient when the primary goal is direct RGBW control.

A lighting programmer can use relatively few DMX addresses even when several fixtures are installed.

For example:

10 fixtures × 4 channels = 40 DMX addresses

This leaves substantial room within one 512-channel universe for other lighting equipment.

8-Channel DMX Mode

The fixture also supports 8CH DMX.

The expanded personality can provide access to additional fixture functions beyond basic RGBW control.

The exact channel-by-channel map is not published on the current supplier page.

Therefore, Stagify should not invent functions for channels 5–8.

The actual manual should be used when programming a lighting console.

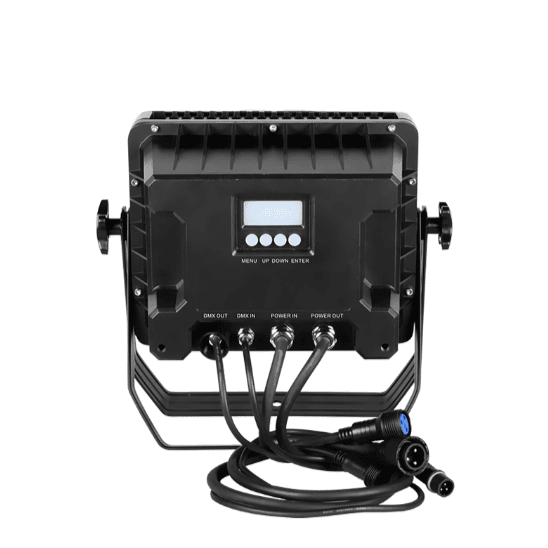

DMX512 Integration

DMX512 allows the fixture to work as part of a larger lighting system.

It can be coordinated with:

• Other wall washers

• Outdoor PAR fixtures

• Moving heads

• Strobes

• Architectural lights

• Stage fixtures

This is particularly useful for buildings where several lights must change colour at the same moment.

Manual Mode

A confirmed Manual mode allows basic fixture operation without a DMX controller.

This can be useful during:

• Installation

• Testing

• Static architectural lighting

• Small events

• Venue setup

For applications where only one static colour is required, a full lighting console may not be necessary.

Automatic Mode

The fixture also supports Auto operation.

Built-in automatic programmes can run without continuous console control.

This can be useful for:

• Decorative lighting

• Small events

• Venue entrances

• Garden parties

• Temporary installations

For architectural projects that require exact colours and scheduled transitions, DMX control provides greater consistency.

Sound-Activated Operation

Sound mode is confirmed.

This allows built-in effects to respond to music.

Sound activation is particularly useful for temporary event applications such as:

• DJs

• Outdoor parties

• Wedding entertainment

• Music events

For permanent facade lighting, Sound mode is generally less important than DMX or Manual operation.

Master/Slave Operation

The fixture also supports Master/Slave mode.

This allows matching units to operate together without assigning every fixture separately through a DMX controller.

A Master/Slave setup can be practical for:

• Small facade installations

• Wedding backdrops

• Outdoor entrance structures

• Temporary stages

For complex installations where each fixture requires a different colour or intensity, individual DMX addressing should be used.

Outdoor Wedding Lighting

IP65 construction makes the fixture particularly relevant to UAE wedding productions that use:

• Hotel gardens

• Outdoor stages

• Villa venues

• Beach-adjacent venues

• Open-air entrances

Wall washers can illuminate:

• Wedding stages

• Decorative walls

• Floral structures

• Building elevations

• Outdoor pathways

• Entrance façades

RGBW control allows the colour scheme to change as the event progresses.

Hotel and Resort Facades

Hotels frequently use architectural colour lighting to change the appearance of their exterior after sunset.

Multiple City Color fixtures can be arranged to highlight:

• Main entrances

• Columns

• Exterior walls

• Architectural recesses

• Landscaping structures

DMX programming can then coordinate colours across the installation.

Corporate Event Lighting

For corporate events, architectural lighting can reinforce brand colours without placing logos on every surface.

RGBW fixtures can be programmed around:

• Corporate blue

• Brand red

• White

• Mixed colour combinations

Actual colour accuracy should be checked visually because standard RGBW stage lighting is not the same as calibrated print or display colour.

Concert and Stage Backdrops

Although the product is well suited to architectural work, it can also be used as an outdoor stage wash.

It can illuminate:

• Scenic walls

• Rear-stage structures

• Truss towers

• Stage façades

• Decorative panels

Because no exact beam angle is published, fixture spacing should be tested during setup.

Dedicated White for Practical Event Use

The dedicated white component makes RGBW useful for more than colourful effects.

White output can assist during:

• Setup

• Venue cleaning

• Stage changeovers

• Photography

• Corporate presentations

The fixture should still not be described as a high-CRI film light because CRI is not published.

320 × 220 × 270 mm Body

The exact dimensions are:

320 × 220 × 270 mm

or approximately:

32 × 22 × 27 cm

These dimensions help with:

• Fixture spacing

• Transport

• Storage

• Architectural mounting

• Flight-case planning

The unit is larger and heavier than many compact indoor PAR fixtures because of its outdoor enclosure and higher-output format.

7.4 kg Fixture Weight

The published weight is:

7.4 kg

This should be considered when planning:

• Wall mounting

• Truss mounting

• Floor stands

• Structural brackets

• Transport cases

For overhead installations, use appropriately rated mounting hardware and a secondary safety attachment where required.

Best For

The 24 LED Waterproof Wall Wash Par Light City Color is particularly suited to:

• Outdoor weddings

• Building facades

• Hotels and resorts

• Concert stages

• Corporate events

• Gardens

• Event entrances

• Architectural structures

• Clubs with outdoor areas

• Rental companies

• Event-production companies

• Permanent or temporary colour-wash installations

Its strongest catalogue position is outdoor RGBW architectural wash with DMX control and IP65 protection.

What This Fixture Is Not Best For

Another fixture may be more appropriate where the requirement involves:

• Battery-powered uplighting

• Moving pan and tilt

• Very narrow beams

• Pixel-by-pixel effects

• UV blacklight

• High-CRI video lighting

• Underwater installation

This model is primarily a fixed-direction outdoor RGBW wash fixture.

24 LED Waterproof City Color vs 18 LED Wall Wash Bar

Stagify also carries an 18 LED Waterproof Wall Wash Bar Light.

The products should be positioned differently.

The 18 LED model uses a long linear bar form factor, while this 24 LED City Color model uses a more compact flood/PAR-style architecture.

Choose the 24 LED City Color when:

• A compact architectural flood format is preferred

• 24 × 18W RGBW LEDs are required

• 200W fixture consumption fits the installation

• Manual aiming of a concentrated fixture is useful

Choose the 18 LED Wall Wash Bar when:

• A long linear wash source is preferred

• Continuous coverage along a wall is important

• Fixture shape better suits long architectural surfaces

This gives customers two distinct wall-washing approaches.

24 LED City Color vs 54 LED Waterproof PAR

The Waterproof 54 LED PAR Light is another outdoor option.

The 54 LED fixture is closer to a traditional stage PAR design, while the City Color product is positioned around architecture and facade washing.

Choose according to:

• Target surface

• Fixture placement

• Coverage requirements

• Desired body shape

• Available mounting locations

LED count alone should not determine the choice.

24 LED City Color vs 48 × 10W Outdoor City Color

The larger RGBW Outdoor LED City Color Light uses 48 × 10W RGBW LEDs and a 480W fixture platform, making it a significantly larger option for projects requiring more output.

The 24 LED product provides a smaller:

• 200W power draw

• 7.4 kg body

• 32 × 22 × 27 cm footprint

This makes the 24 LED unit the more manageable option for smaller architectural sections and event installations.

UAE Voltage Compatibility

The exact electrical input is:

AC100–240V / 50–60Hz

This covers the UAE's standard 220–240V / 50Hz mains supply.

The exact mains plug supplied with Stagify stock is not documented.

Do not claim an included UAE/UK Type G plug until the physical stock is checked.

Outdoor Electrical Connections

When using IP65 fixtures outdoors, the rest of the electrical system must also be planned for outdoor exposure.

Consider:

• Rated power connections

• Protected DMX connections

• Elevated cable junctions

• Proper distribution boxes

• Cable routing away from standing water

An IP65 fixture does not make an indoor extension connector waterproof.

Installation and Aiming

Before installation:

• Identify the wall or structure to be illuminated.

• Position the fixture at an appropriate distance.

• Adjust the physical tilt.

• Test coverage.

• Overlap neighbouring fixtures where required.

• Confirm power and DMX routing.

• Secure the mounting hardware.

For a permanent facade installation, final spacing should be tested before drilling or completing cable infrastructure.

Rigging and Safety

For overhead or elevated use:

• Use appropriately rated clamps or brackets.

• Use a secondary safety attachment where required.

• Confirm the mounting structure can support the 7.4 kg fixture.

• Keep cables secured.

• Maintain appropriate weather protection.

• Do not obstruct the fixture unnecessarily.

Professional architectural installation should account for both fixture weight and environmental exposure.

Maintenance for Outdoor Fixtures

Even an IP65-rated product requires maintenance.

Outdoor fixtures can collect:

• Dust

• Sand

• Salt residue

• Dirt

• Pollution

Periodic maintenance should include:

• Cleaning the lens

• Inspecting seals

• Checking cable entries

• Inspecting mounting hardware

• Checking connectors

• Looking for enclosure damage

Do not open the sealed housing outdoors during wet conditions.

What's Included

The exact supplier packing list confirms:

• 1 × 24 LED Waterproof Wall Wash Par Light

• 1 × User Manual

No:

• DMX cable

• Flight case

• Mounting clamp

• Safety cable

is specifically listed as included.

Do not add those items to the package contents unless Stagify inventory confirms them.

How Many LEDs Does It Have?

The fixture contains:

24 × 18W RGBW 4-in-1 LEDs

What Colours Does It Produce?

The confirmed colour system is:

RGBW

providing:

• Red

• Green

• Blue

• White

How Much Power Does It Use?

The complete fixture is specified at:

200W power consumption

Is It a 432W Fixture?

No.

Although the 24 LED packages are labelled 18W each, the supplier specifies 200W total fixture consumption.

Use 200W when calculating electrical load.

Is It Waterproof?

It is rated:

IP65

This makes it suitable for many outdoor applications but does not make it submersible.

Can It Be Used for Building Facades?

Yes.

Architectural structures and facade illumination are specifically identified as intended applications for this City Color fixture.

Can the Angle Be Adjusted?

Yes.

The product description confirms a manually adjustable tilt angle.

Does It Support DMX512?

Yes.

DMX512 is confirmed.

How Many DMX Channels Does It Use?

The exact specification confirms:

• 4CH

• 8CH

Can It Work Without DMX?

Yes.

The supported modes include:

• Sound

• Auto

• Manual

• Master/Slave

in addition to DMX512.

Does It Have Dimming?

Yes.

The fixture provides:

0–100% electronic dimming

Does It Have Strobe?

A numerical strobe specification is not published on the exact product page.

Do not copy a strobe rate from another 24 LED waterproof PAR.

What Is the Beam Angle?

The exact product page does not publish a beam-angle specification.

Do not assume 15°, 25°, 40° or 45° from similar fixtures.

Does It Have Pixel Control?

Pixel-level or individual-LED control is not documented.

Do not advertise pixel mapping.

What Are the Dimensions?

The exact published size is:

320 × 220 × 270 mm

How Much Does It Weigh?

The exact weight is:

7.4 kg

Does It Work on UAE Power?

Yes.

Its AC100–240V / 50–60Hz input range covers standard UAE electrical supply.

The supplied plug type still requires confirmation.

Contact Stagify with your dance-floor model or controller details to confirm compatibility before purchase.
