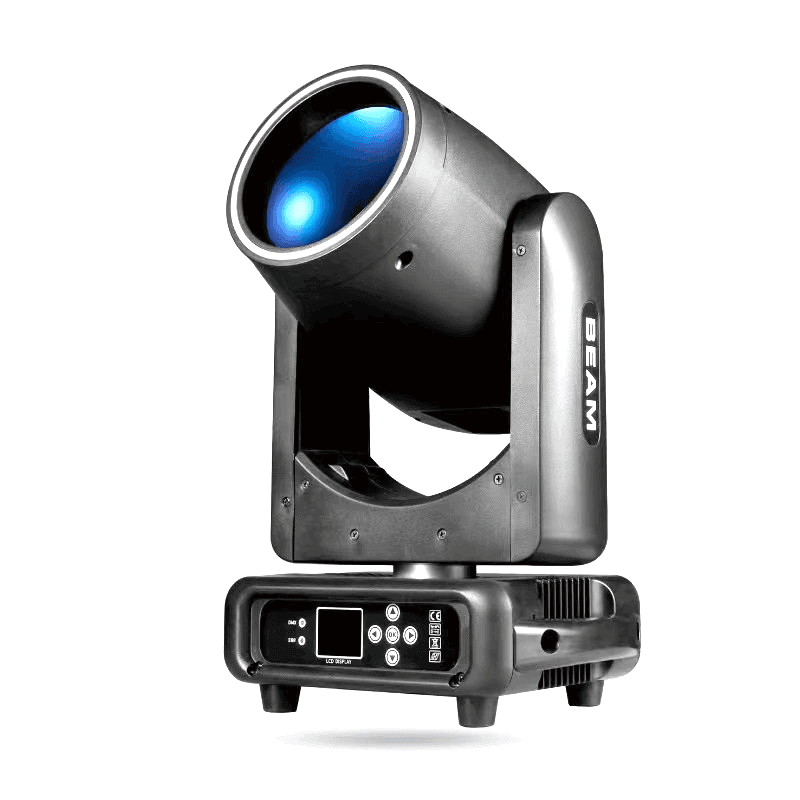

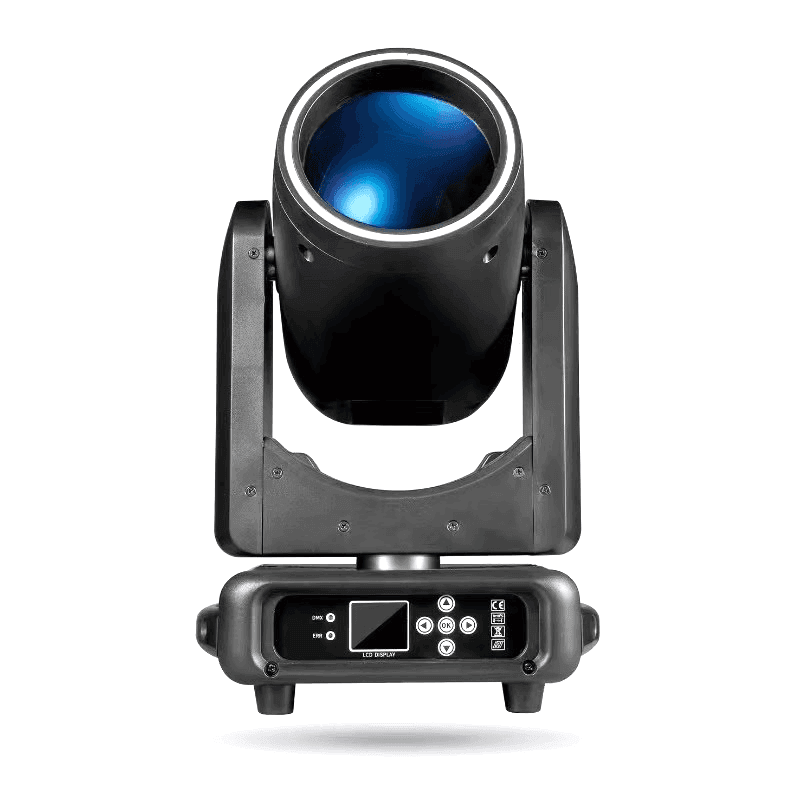

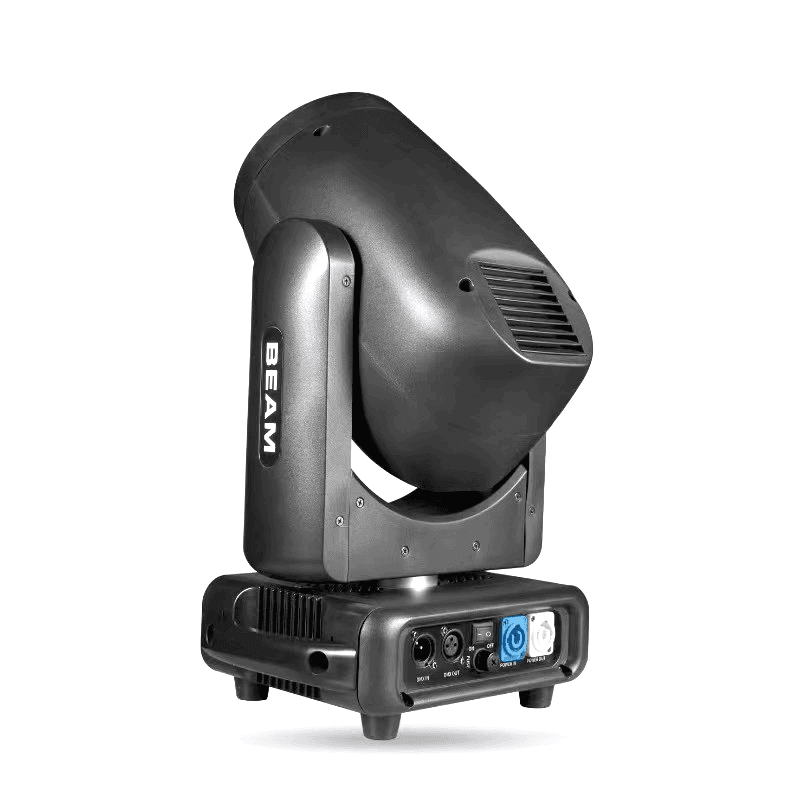

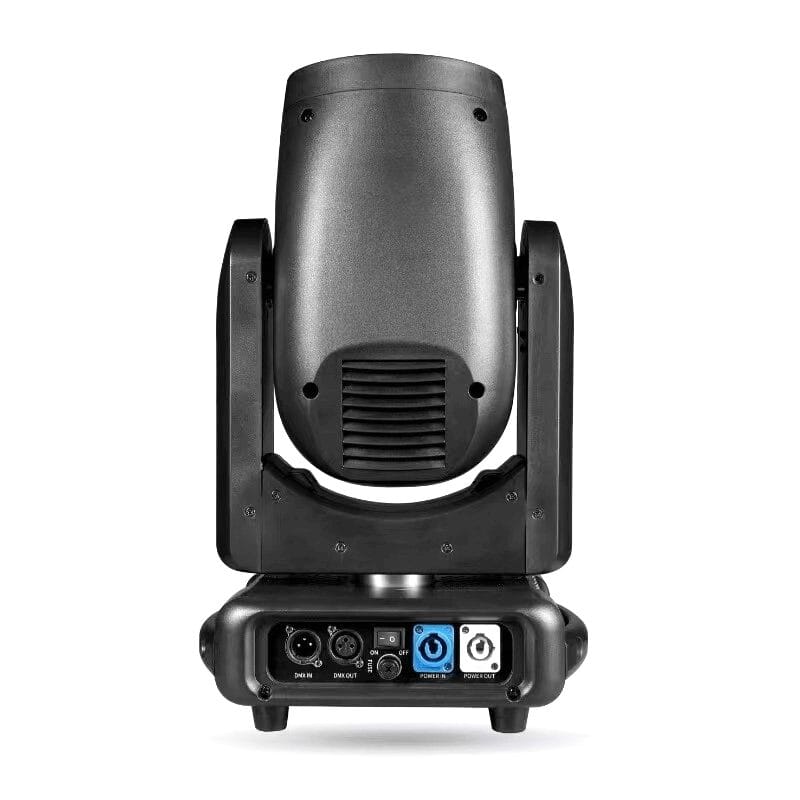

230W Mini 7R Beam Moving Head Light

230W Mini 7R Beam Moving Head Light for Stage Events UAE

The 230W Mini 7R Beam Moving Head Light is a compact professional fixture designed for sharp aerial effects across weddings, concerts, clubs and live productions. It combines a 230W discharge lamp, 0–3.9° beam, 24-facet rotating prism, 18-channel DMX control and precise 540° pan with 270° tilt in a 10.8 kg housing.

Technical Specifications

Narrow 0–3.9° Beam for Defined Aerial Effects

This Mini 7R is designed around a focused beam rather than a broad wash, giving lighting programmers a narrow shaft that remains visually defined across larger spaces.

The optical system reaches a beam angle of up to approximately 3.9°, which is particularly effective when atmospheric haze is present. Instead of spreading output across an entire stage, the fixture concentrates light into a strong line that can be swept, crossed or grouped with additional units.

That makes it useful for creating:

• Parallel aerial beams

• Crossing stage looks

• Fan-shaped lighting sequences

• Entrance and reveal cues

• Fast concert sweeps

• Dance-floor effects

For weddings and ballroom productions, several fixtures can be positioned symmetrically to frame a stage or entrance. Concert and club programmers can use faster movement and prism effects for more energetic sequences.

230W 7R Lamp with 350W Total Fixture Power

The fixture uses a 230W 7R discharge bulb, while total electrical consumption is approximately 350W.

This distinction matters because the 230W figure describes the lamp itself. Additional electrical power is required for the movement motors, cooling system, control electronics, focus system, prism and integrated ring effect.

The lamp has an average operating life of approximately 2,000 hours under suitable operating and maintenance conditions.

For rental inventories, keeping track of lamp hours helps crews plan replacements before a fixture reaches an important production.

Six-Layer Coated Optical System

A six-layer coated lens system manages the light produced by the discharge source and concentrates it into the narrow beam.

The documented electronic focus produces approximately 50,000 lux at 20 metres, giving operators useful output for medium and larger indoor venues.

Electronic focus also allows adjustments from the lighting desk rather than requiring technicians to manually refocus the fixture once it has been installed on the truss.

This becomes particularly useful when fixtures are mounted several metres above the stage.

14 Colours Plus White

The colour system provides 14 colours plus open white, giving lighting designers a useful selection for different production styles.

Instead of relying on colour mixing, the physical colour wheel places selected colours directly into the optical path.

The system can create:

• Individual colour looks

• White beam scenes

• Fast colour changes

• Rainbow sequences

• Alternating fixture colours

• Music-driven transitions

For corporate and wedding events, colours can be selected to complement the stage design. Faster colour changes can be introduced during entertainment segments, concerts or DJ performances.

14-Pattern Gobo Wheel

The built-in pattern system provides 14 gobo patterns plus an open position.

Gobos change the shape and texture of the output, allowing the fixture to create more than a standard circular beam.

Pattern shake and positioning functions provide additional control for dynamic stage looks.

When haze is present, gobos can alter the appearance of the aerial effect. When projected onto a suitable surface, they can also create visible patterns on floors, backdrops and scenic elements.

24-Facet Prism Creates Wider Multi-Beam Effects

A key effect inside this compact beam fixture is its 24-facet prism, arranged as an 8+8+8 configuration.

The prism divides the original beam into multiple outputs, creating a much larger visual effect without adding more fixtures.

It supports:

• Clockwise rotation

• Counter-clockwise rotation

• Prism positioning

This makes the prism particularly useful during high-energy moments such as wedding entrances, concert drops, DJ transitions and stage reveals.

The operator can move between a clean single beam and a wider multi-beam effect as the programme changes.

Integrated Ring Strip Adds a Second Visual Layer

Alongside the 230W discharge source, the fixture incorporates a RING 5020 strip-light effect.

This gives the body of the moving head an additional visual element rather than relying only on the beam projected from the lens.

The ring effect is useful when the fixtures themselves remain visible as part of the stage design, particularly in:

• DJ booths

• Wedding stages

• Clubs

• Concert risers

• Entertainment venues

It adds another layer to the visual appearance of the rig while preserving the focused 7R beam as the main optical effect.

540° Pan and 270° Tilt with 16-Bit Precision

The motorised head provides 540° pan and 270° tilt, giving operators a wide positioning range across the performance area.

16-bit movement control improves positioning accuracy, particularly when several fixtures need to hit matching points.

This allows multiple Mini 7R units to create:

• Mirrored movement

• Symmetrical beam positions

• Crossing patterns

• Coordinated sweeps

• Slow scenic movement

• Fast music-driven effects

The movement range also gives lighting designers more flexibility when fixtures are installed above or beside a stage.

18-Channel DMX Control

The fixture uses 18 DMX channels for integration with professional stage-lighting consoles.

DMX control gives operators access to the fixture's movement and optical effects from a central desk, including functions such as:

• Pan and tilt

• Fine movement

• Colour selection

• Gobo effects

• Prism control

• Prism rotation

• Electronic focus

• Dimming

• Strobe

• Frost

• Fixture control

For production companies already using DMX-based lighting systems, the Mini 7R can be programmed alongside moving head washes, PAR fixtures, strobes and effect lights.

0–100% Dimming, Frost and Strobe Control

The fixture includes 0–100% linear dimming, allowing output to be adjusted rather than operating only at full brightness.

Its double-blade strobe can operate at speeds of up to approximately 13 flashes per second, supporting fast rhythmic effects for music-driven productions.

A separate 0–100% frost or atomisation function softens the concentrated beam when a less defined output is required.

This gives programmers three distinctly different looks from the same fixture:

• Sharp beam

• Multi-beam prism effect

• Softer frost effect

The result is greater flexibility without increasing the number of fixture types installed on the rig.

Compact 10.8KG Housing for Touring and Rental

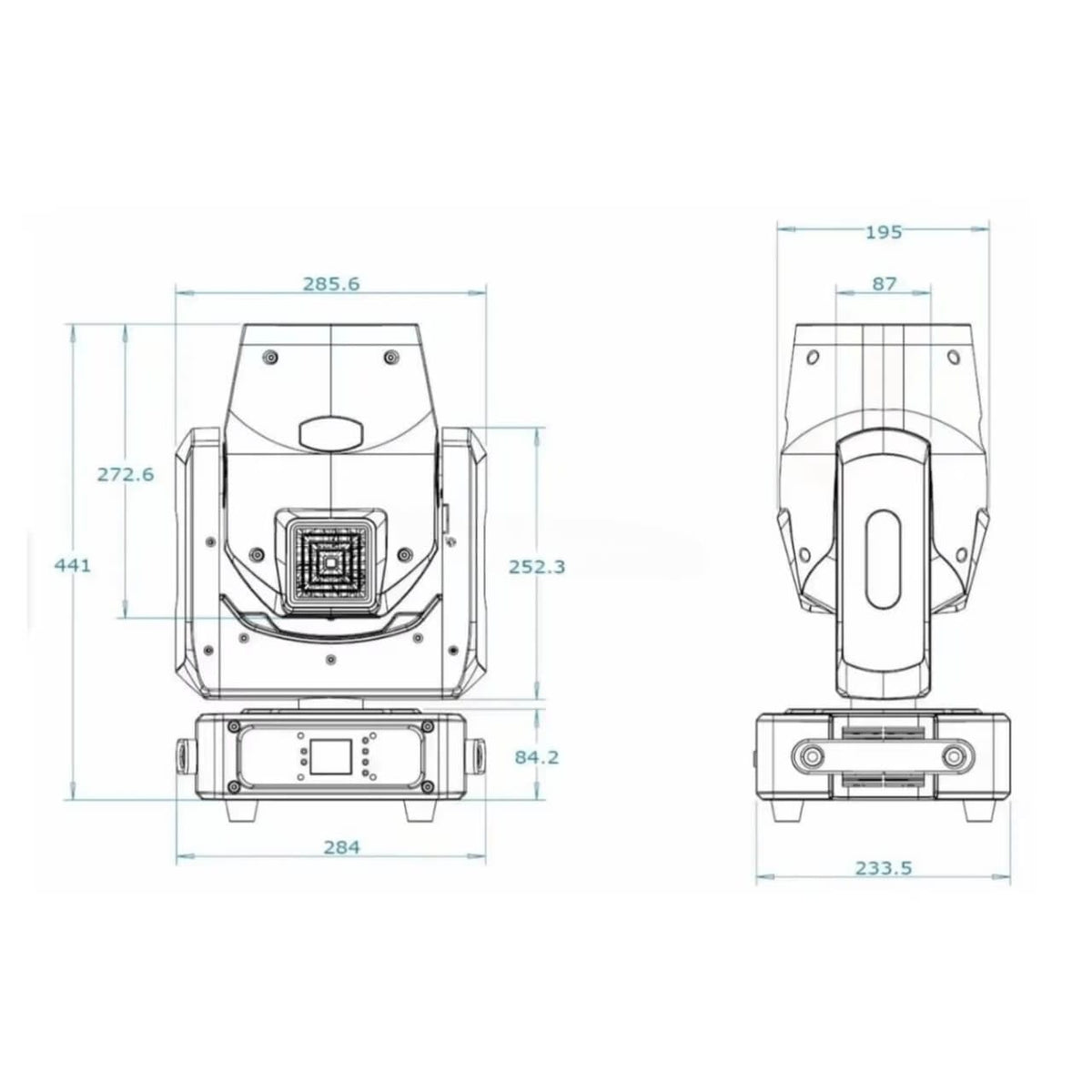

The fixture measures approximately 280 × 200 × 460 mm and weighs 10.8 kg.

That compact format is one of its key practical advantages.

A production company deploying 8, 12 or more moving heads needs to consider more than optical performance. Fixture size affects:

• Flight-case capacity

• Vehicle space

• Truss loading

• Storage

• Crew handling

• Setup time

At 10.8 kg per fixture, the Mini 7R is easier to manage in multi-unit event setups than many larger discharge moving heads.

Best For

The 230W Mini 7R Beam is particularly suited to:

• Wedding stages and hotel ballrooms

• Concerts and live music events

• Nightclubs, lounges and DJ venues

• Corporate events and product launches

• Theatre and performance stages

• Event-production and lighting rental companies

What's Included & Compatibility

The core product includes:

• 1 × 230W Mini 7R Beam Moving Head fixture

It can be integrated with compatible:

• DMX512 lighting controllers

• Professional aluminium stage truss

• Rated moving-head clamps

• Independent secondary safety cables

• DMX signal cabling

• Professional power distribution

• Haze machines for visible aerial effects

Only accessories supplied with the actual Stagify package should be listed as included on the final Shopify product page.

Does the 230W Mini 7R Work on UAE Power?

Yes. The fixture accepts AC100–240V at 50/60Hz, which covers the UAE's 220–240V / 50Hz mains supply.

The supplied plug type should be checked on the actual Stagify stock before publication.

How Narrow Is the Beam?

The optical system provides an approximately 0–3.9° beam angle.

This narrow output is intended for concentrated aerial effects rather than broad stage washing.

How Many Colours and Patterns Does It Have?

The fixture provides 14 colours plus white and a separate wheel with 14 patterns plus an open position.

These can be combined with movement, prism, strobe and focus functions to create different programmed looks.

What Does the 24-Facet Prism Do?

The 24-facet prism splits one beam into multiple visible beams.

It can rotate in either direction and supports positioning control, allowing the effect to be incorporated into programmed transitions rather than running continuously.

Can Several Mini 7R Fixtures Be Controlled Together?

Yes. The 18-channel DMX configuration allows multiple fixtures to be addressed and programmed from a compatible DMX512 console.

This is useful for coordinated wedding stages, concerts, club installations and larger lighting rigs.

Is This Moving Head Suitable for Outdoor Events?

The supplier specification does not confirm an outdoor IP rating for this exact unit, so it should not be described as weatherproof or outdoor-rated.

For exposed outdoor installations, use a moving head with a verified IP65 or IP66 rating.

Installation & Safety Requirements

The fixture weighs approximately 10.8 kg, so overhead installation requires appropriately rated clamps, truss and suspension hardware.

Always use an independent secondary safety cable when the unit is mounted above people or equipment.

Allow sufficient clearance for its full 540° pan and 270° tilt movement. Cooling openings should remain unobstructed during operation.

Because the fixture uses a discharge lamp, internal components and the lamp can become hot. Disconnect power and allow the unit to cool before servicing or replacing the bulb.

Professional overhead installations should be completed by personnel familiar with stage-lighting and truss systems.

Professional Beam Moving Heads in the UAE

Stagify supplies professional beam moving heads, stage lighting and event-production equipment across Dubai and the UAE for AV companies, venues, DJs, event contractors and rental businesses.

The Mini 7R combines a 3.9° beam, 24-facet prism, 14-colour wheel and 18-channel DMX control in a compact 10.8 kg fixture, making it particularly practical for multi-unit event-lighting installations.

Contact Stagify for current availability, bulk quantities and help matching moving heads with truss, clamps, controllers and atmospheric effects.
