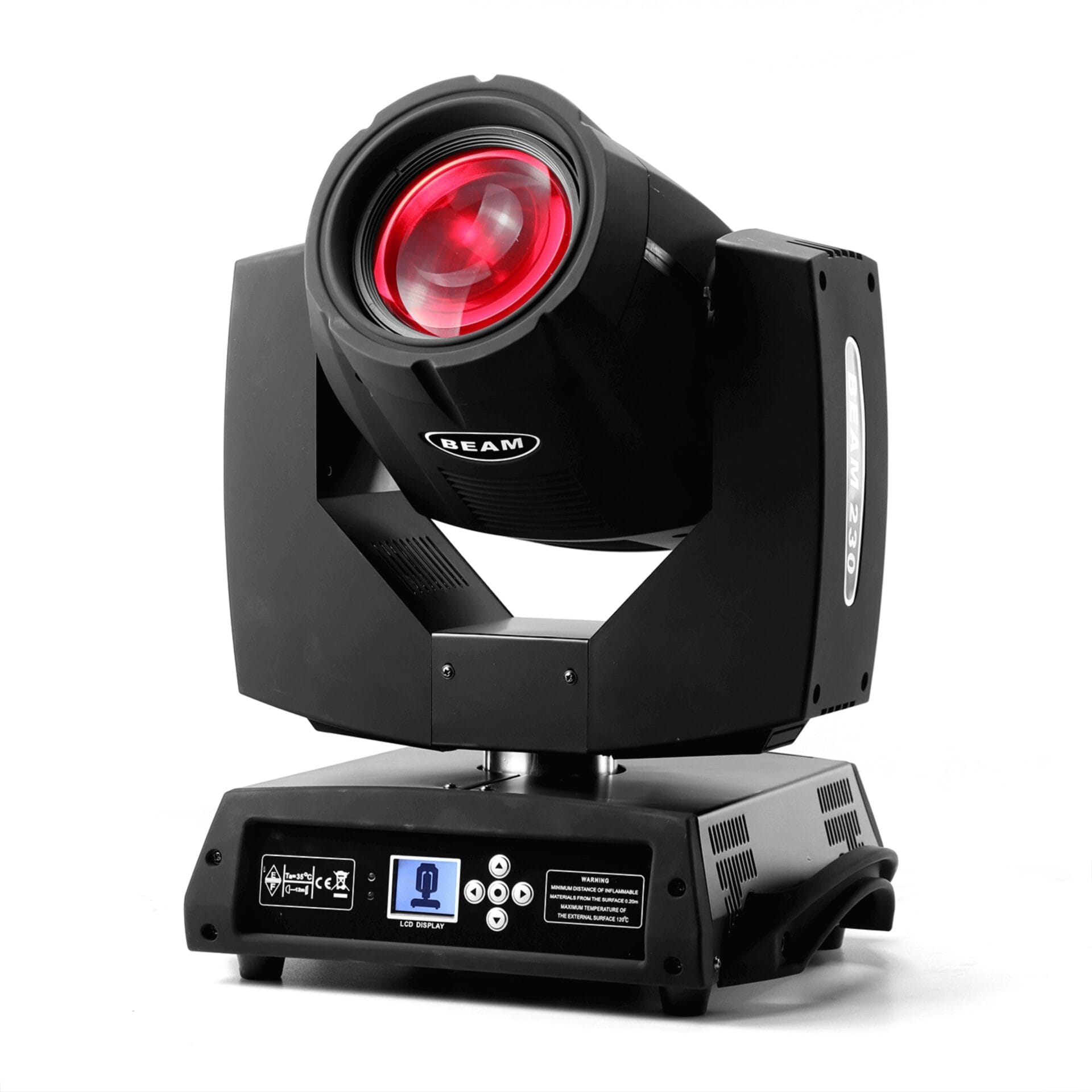

230W BEAM MOVING HEAD STAGE LIGHT

230W Beam Moving Head Stage Light – 7R Beam for Events UAE

The 230W Beam Moving Head Stage Light is a professional 7R beam fixture designed to produce narrow, high-intensity aerial effects for concerts, weddings, clubs, DJ events and stage productions. It combines a 230W discharge lamp with 540° pan, 270° tilt, 14 colours, 17 fixed gobos, rotating prism effects and DMX512 control for dynamic lighting installations.

Technical Specifications

These specifications are consistently documented across professional 230W 7R beam fixtures from TourGo, Laisi Lighting and other manufacturers.

Narrow Beam Output for Stage and Event Productions

The main advantage of a 230W beam moving head is its narrow optical output. Rather than spreading light across a wide area like a wash fixture, the beam concentrates the lamp output into a tight shaft of light.

With a beam angle of approximately 0–3.8°, the fixture is designed for visible aerial effects across stages, ballrooms, clubs and entertainment venues. When haze or fog is present, the narrow beam becomes clearly visible through the air, creating the crossing, sweeping and fan effects commonly used in professional concert and event lighting.

The 230W 7R format has become widely used in production lighting because it combines strong beam projection with a fixture size suitable for mobile production, rental and venue installations.

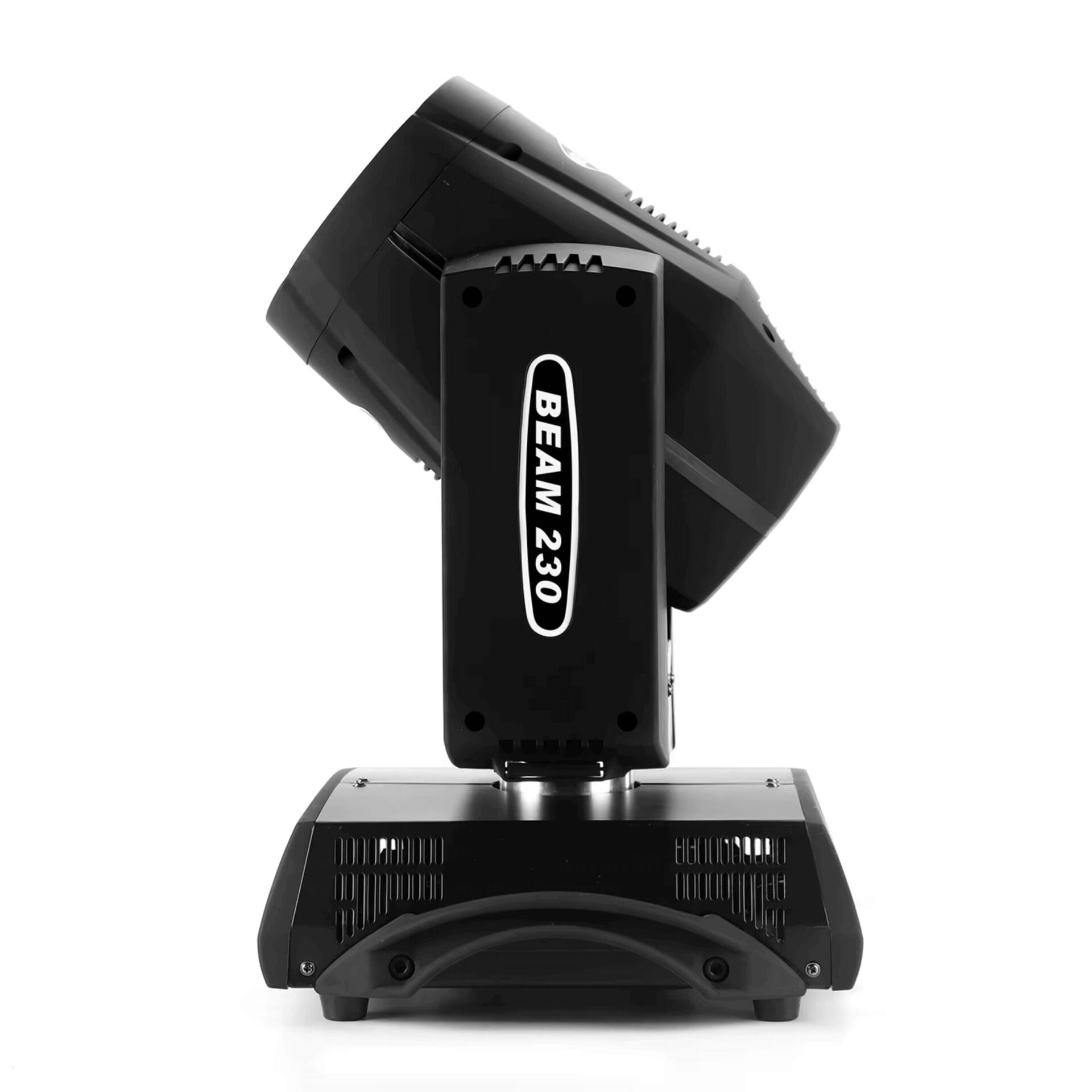

540° Pan and 270° Tilt Movement

The moving head provides 540° pan and 270° tilt, allowing the beam to travel across a large part of the performance area without repositioning the fixture manually.

16-bit movement control provides finer positioning when the fixture is operated through a compatible DMX console.

Multiple units can be programmed together to produce:

• Crossing beam effects

• Symmetrical movements

• Circular sweeps

• Audience-overhead effects where appropriate

• Fan patterns

• Stage entrance effects

• Synchronized concert looks

This makes the fixture considerably more flexible than a static beam light.

14 Colours for Fast Lighting Changes

The integrated colour wheel provides 14 fixed colours plus an open/white position.

A lighting operator can move between colours through DMX programming to match different songs, event themes, stage scenes or show cues.

Colour-wheel movement can also be incorporated into dynamic effects, particularly when several moving heads are programmed as part of the same lighting rig.

17 Fixed Gobos for Pattern Effects

A dedicated gobo wheel provides 17 fixed gobos plus an open position.

These patterns reshape the beam and add visual texture to stage looks. Rather than producing only a single solid shaft of light, the operator can introduce different geometric and pattern effects according to the show design.

Gobo effects are particularly effective when combined with:

• Prism

• Movement

• Colour changes

• Strobe

• Fog or haze

Rotating 8-Facet Prism

The 8-facet rotating prism splits the original beam into multiple visible beams.

This can transform one moving head into a wider multi-beam visual effect without requiring additional fixtures.

Prism rotation adds continuous movement to the effect and is especially useful for:

• DJ performances

• Concert drops

• Dance-floor lighting

• Wedding entrances

• Club installations

• High-energy stage sequences

Professional 230W 7R platforms consistently document an 8-facet rotating prism, although some higher-spec versions add secondary prisms.

Electronic Focus and Frost Effect

Electronic focus allows the operator to sharpen the projected beam and gobo effects remotely rather than manually adjusting the fixture during a production.

A frost filter provides another visual option by softening the concentrated beam when a less defined effect is required.

Together, these functions make the fixture more adaptable within a lighting design instead of limiting it to one fixed beam appearance.

DMX512 Control for Professional Lighting Systems

The fixture supports DMX512 control with 16/20-channel operation, depending on the selected operating mode.

DMX control gives a lighting operator access to functions including:

• Pan and tilt

• Fine movement

• Colour selection

• Gobo selection

• Prism

• Electronic focus

• Frost

• Dimmer

• Strobe

• Lamp and fixture functions

This makes the 230W Beam Moving Head suitable for integration with professional DMX consoles and programmed stage-lighting systems.

Best For

The 230W Beam Moving Head Stage Light is suitable for:

• Concerts and live performances

• Wedding stages and entrances

• DJ events

• Nightclubs and lounges

• Corporate productions

• Festivals

• Theatre productions

• Hotel ballrooms

• Exhibition entertainment

• Event-production companies

• AV rental companies

• Permanent venue lighting installations

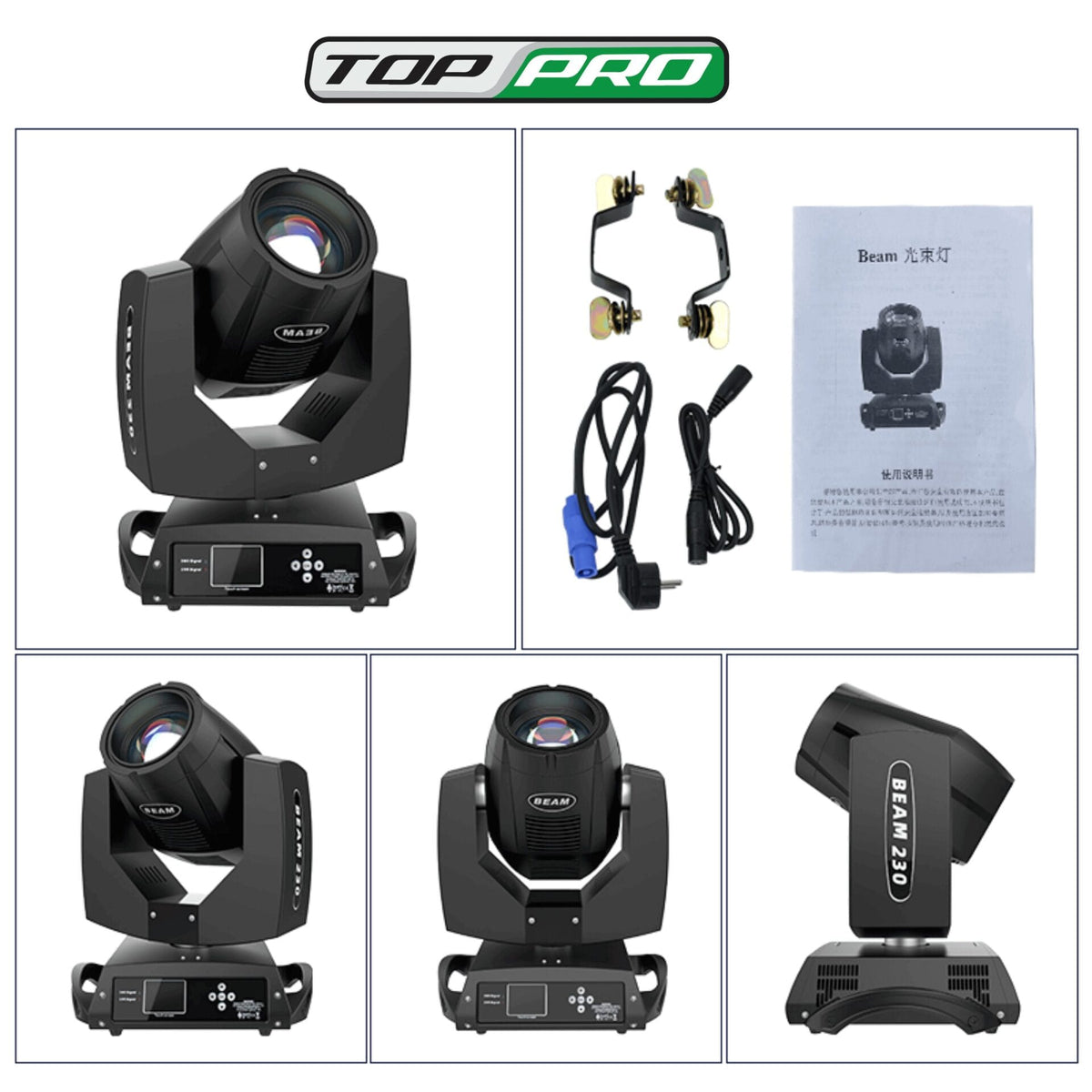

What's Included & Compatibility

The fixture is designed to integrate with professional stage-lighting systems using:

• DMX512 controllers

• DMX signal cables

• Stage truss systems

• Lighting clamps

• Safety cables

• Fog machines

• Haze machines

• Other moving-head fixtures

• LED PAR and wash lights

Exact supplied accessories should follow the package configuration for the Stagify SKU.

What Is a 230W Beam Moving Head Used For?

A 230W beam moving head is primarily used to produce narrow aerial beams and moving lighting effects for stages, concerts, weddings, clubs and professional events.

Its motorised head allows the light to move horizontally and vertically while colour, gobo and prism effects are controlled through DMX.

How Wide Is the Beam?

Professional 230W 7R beam fixtures typically use a very narrow optical angle of approximately 0–3.8°.

This concentrated beam is what creates the long, defined shafts of light associated with beam moving heads.

How Many Colours Does the 230W Beam Moving Head Have?

This 230W 7R configuration uses a colour wheel with 14 colours plus an open/white position.

Colours can be selected and changed remotely through a compatible DMX controller.

How Many Gobos Are Available?

The fixture provides 17 fixed gobos plus an open position.

The gobo wheel can be combined with colour, prism, movement and strobe functions to create more complex stage effects.

Does It Have a Prism Effect?

Yes. The standard configuration uses a rotating 8-facet prism that splits the main beam into multiple beams.

Some 230W models offer additional prism systems, but only the verified 8-facet configuration should be assumed for this product unless the Stagify supplier specification confirms otherwise.

Can It Be Controlled by DMX?

Yes. The fixture uses the DMX512 protocol and commonly provides 16/20-channel operation.

This allows professional control of movement, colours, gobos, prism, dimming, focus and other lighting functions.

Does the 230W Moving Head Work on UAE Power?

The professional 230W 7R platforms checked use wide-range AC power supplies that include the 220–240V mains range used in the UAE.

The exact plug supplied with the Stagify product should be confirmed before publication rather than assumed.

Does Beam Lighting Work Better With Haze?

Yes. A beam fixture projects light through the air, but its shaft becomes significantly more visible when atmospheric haze or fog is present.

For concerts and stage productions, pairing beam moving heads with a suitable haze or fog machine helps reveal the full aerial lighting effect.

Installation & Safety

The 230W Beam Moving Head is professional electrical stage equipment and should be installed using appropriate clamps and an independent safety attachment when suspended from truss.

Allow adequate ventilation around the fixture and do not obstruct cooling openings.

The fixture is intended for indoor use under an IP20 configuration. Rigged installations should be completed by personnel familiar with professional stage lighting and truss systems.

Order 230W Beam Moving Head Lights in the UAE

Stagify supplies professional moving head lights and stage lighting equipment across Dubai and the UAE for event-production companies, venues, DJs, AV installers and rental houses.

The 230W Beam Moving Head can be combined with haze machines, DMX controllers, stage truss, PAR lights and wash fixtures to build a complete professional lighting system.

Contact Stagify for project quantities, multi-unit lighting setups and bulk requirements.
