19 LED RGBW MOVING WASH LIGHT

19 LED RGBW Moving Wash Light – Bright, Smooth, Reliable Lighting for Every Event

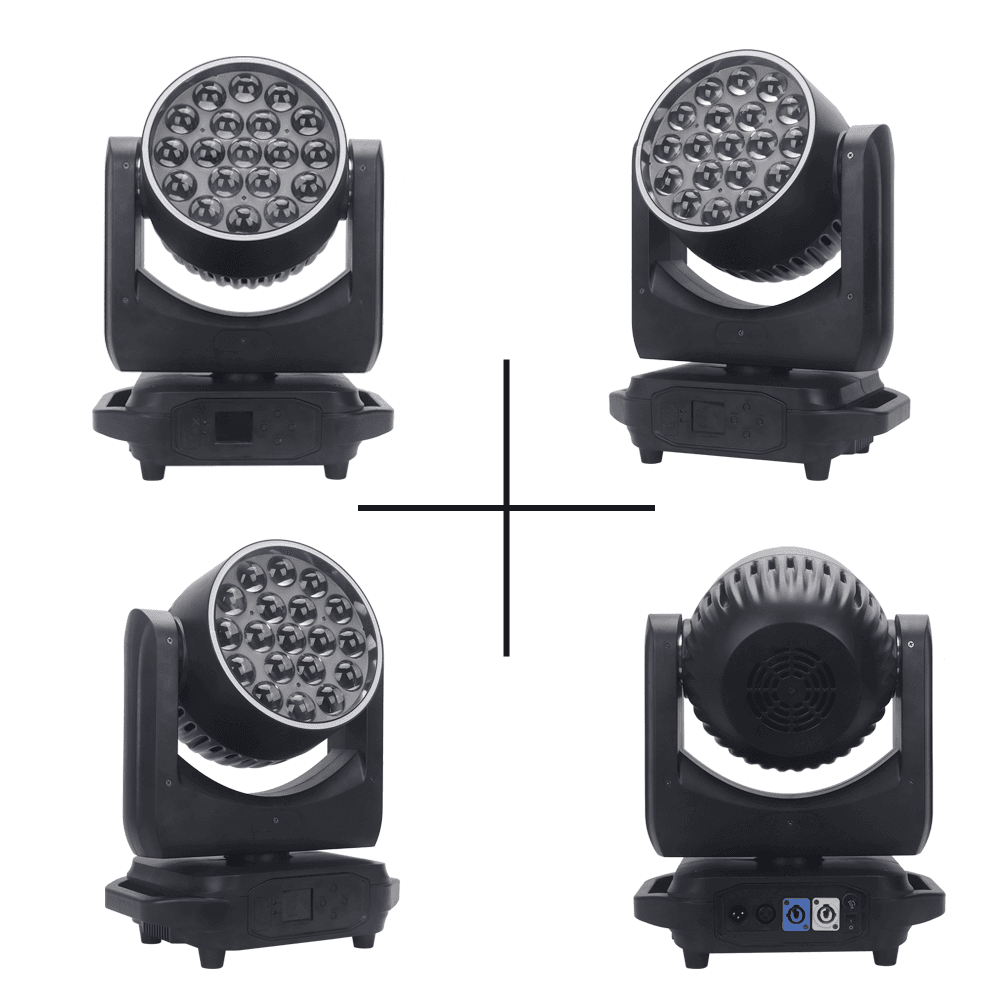

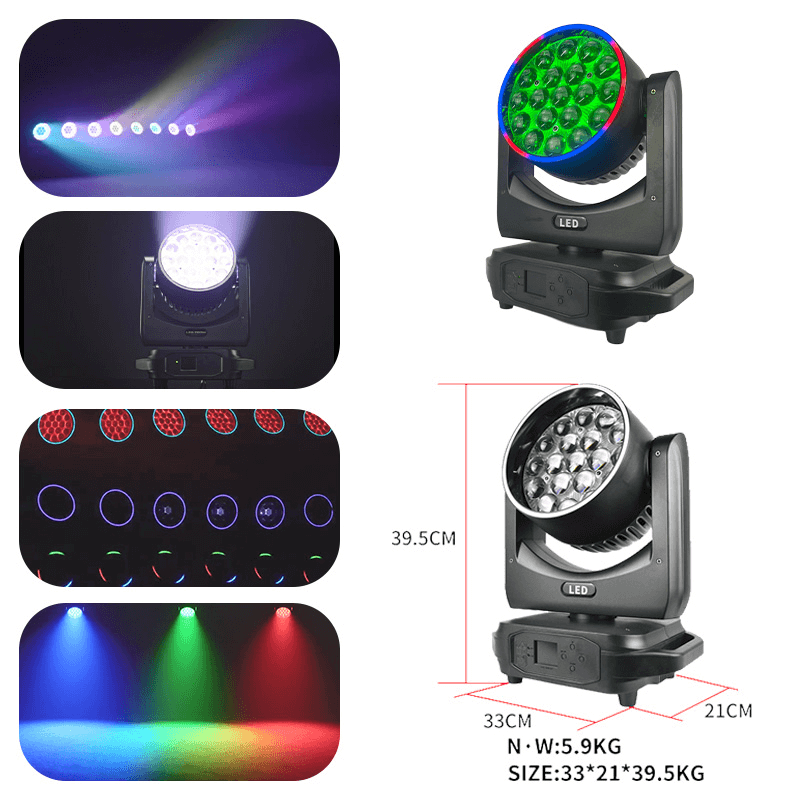

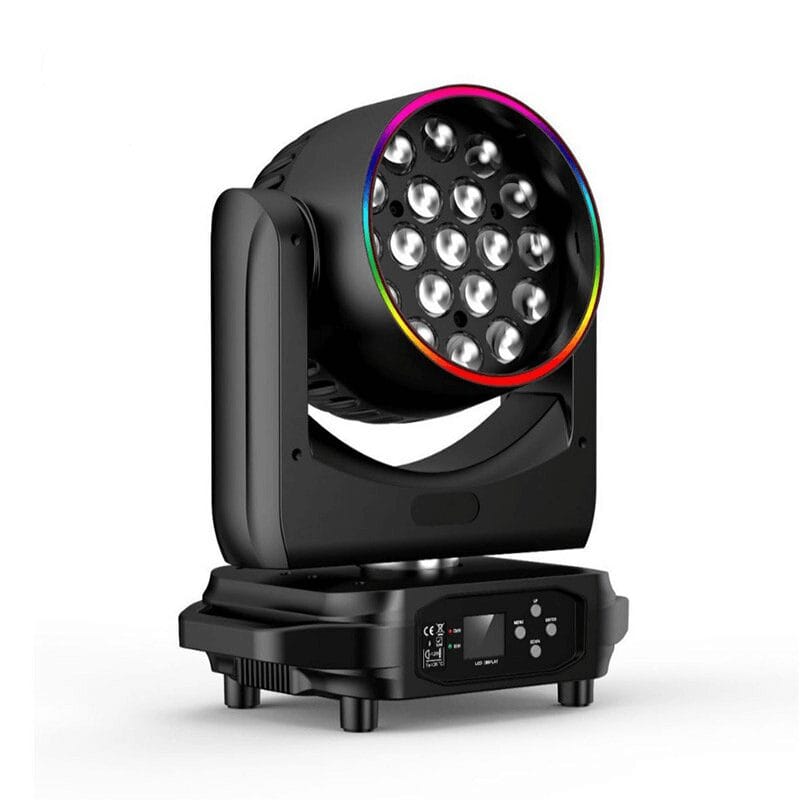

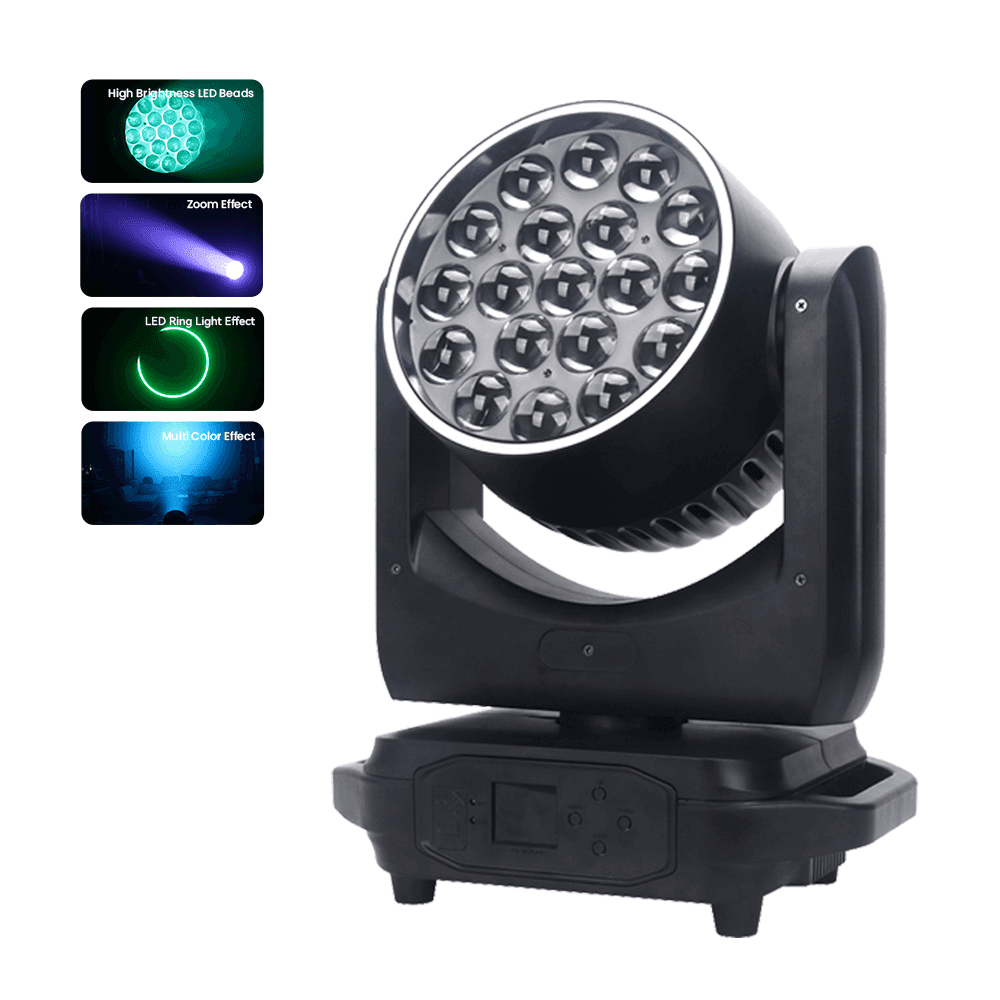

The 19 LED RGBW Moving Wash Light is a professional moving-head fixture powered by 19 × 15W RGBW 4-in-1 LEDs. It combines smooth colour mixing, motorised 8°-50° zoom and 540°/270° pan-and-tilt movement for stage washes, focused lighting and dynamic movement across weddings, concerts, clubs and event productions.

Technical Specifications

The core specifications above are supported by professional 19 × 15W RGBW wash fixtures from ESR Light and BKlite. Both document the same 19-LED RGBW engine, 8°-50° zoom, 540° pan, 270° tilt and 14/25-channel control configuration.

19 × 15W RGBW LED Wash System

The fixture uses 19 individual 15W RGBW 4-in-1 LEDs to create saturated colours, pastel shades and adjustable white output from a single moving-head unit.

Unlike conventional RGB fixtures, the dedicated white LED component improves white output and allows cleaner pastel colour mixing. This makes the fixture useful for applications where the lighting design needs to move between saturated stage colours and more neutral illumination during the same event.

The circular 19-LED arrangement also produces an even wash across stages, dance floors, décor and performance areas.

For event-production companies, this gives one fixture enough flexibility to handle background colour, stage coverage and moving effects instead of relying on a separate static wash for every position.

Motorised 8°-50° Zoom

The 8°-50° motorised zoom range allows the operator to change the projected light spread directly through the lighting controller.

At the narrower end of the zoom range, the fixture produces a more concentrated projection suitable for highlighting smaller stage areas or creating defined aerial effects when haze is present.

Opening the zoom toward 50° produces a much broader wash for:

• Stage backgrounds
• Dance floors
• Wedding stages
• Performance areas
• Club interiors
• Exhibition spaces

This gives lighting operators considerably more flexibility than a fixed-angle wash fixture.

Smooth RGBW Colour Mixing

Four-colour RGBW mixing allows the fixture to generate a wide range of colours without using mechanical colour wheels.

Red, green, blue and white output can be blended electronically to create both saturated and softer shades. Multiple fixtures can therefore be programmed to match wedding themes, corporate colours, concert scenes or venue ambience.

The 0-100% electronic dimming system also allows gradual intensity transitions rather than relying only on full-output colour changes.

540° Pan and 270° Tilt Movement

The moving-head platform provides 540° pan and 270° tilt, allowing the wash output to cover different stage positions without manually repositioning the fixture.

Fixtures can be programmed to:

• Sweep across a stage
• Move between performers
• Cover a dance floor
• Create symmetrical movement
• Change position between event scenes
• Produce dynamic aerial effects

This makes moving washes especially useful for productions where the lighting design changes throughout the event.

DMX512 Lighting Control

For professional installations, the 19 LED Moving Wash Light supports DMX512 control with 14 or 25 channel modes.

DMX control gives the lighting operator access to functions such as:

• RGBW colour mixing
• Dimmer
• Pan
• Tilt
• Zoom
• Strobe
• Movement
• Built-in programmes

The different channel modes also allow the fixture to be adapted to simpler or more detailed lighting-console programming.

Auto, Sound and Master/Slave Modes

A DMX controller is not required for every application.

The fixture also supports:

• Auto mode
• Sound-active mode
• Master/Slave mode
• DMX512 mode

These operating options are useful for mobile DJs, smaller venues and temporary event setups where a full lighting console may not be available.

Master/Slave operation allows compatible fixtures to run coordinated programmes, while sound mode can trigger effects according to music.

Best For

The 19 LED RGBW Moving Wash Light is suitable for:

• Wedding stages and ballrooms
• Concerts and live performances
• DJ events
• Nightclubs and lounges
• Corporate events
• Theatre productions
• Fashion shows
• Exhibition stands
• Hotel entertainment venues
• School and university stages
• Event-production companies
• AV and lighting rental businesses

What's Included & Compatibility

A typical fixture setup requires:

• 1 × 19 LED RGBW Moving Wash Light
• Power connection
• DMX signal connection
• Mounting hardware
• Safety cable when suspended

It can be integrated with:

• DMX512 lighting controllers
• Lighting truss
• Stage lighting stands
• Moving beam lights
• Moving spot lights
• LED PAR lights
• Strobe lights
• Haze and fog effects

Exact package contents should follow the Stagify SKU supplied with the product.

How Wide Is the Beam on the 19 LED Moving Wash Light?

The fixture provides a motorised zoom range from approximately 8° to 50°.

The narrower setting creates a concentrated projection, while wider zoom positions spread the RGBW output across larger stage or event areas.

How Many LEDs Does This Moving Wash Light Have?

The light source consists of 19 × 15W RGBW 4-in-1 LEDs.

Each LED combines red, green, blue and white output to provide flexible colour mixing from one fixture.

Does It Support DMX512?

Yes. The documented 19 × 15W configuration supports DMX512 with 14 and 25-channel modes.

It can therefore be integrated into professional stage-lighting consoles and programmed alongside other DMX fixtures.

Can I Use the Light Without a DMX Controller?

Yes. In addition to DMX512, the fixture supports Auto, Sound and Master/Slave operating modes.

These modes are useful for DJs, smaller venues and standalone lighting installations.

How Far Can the Moving Head Rotate?

The moving-head system provides approximately 540° pan and 270° tilt.

This range allows the fixture to redirect its wash output across different stage positions during a programmed show.

Is This a Beam Light or a Wash Light?

Its primary purpose is wash lighting, but the motorised zoom allows the output to become significantly narrower at the 8° setting.

For very narrow long-distance aerial beams, a dedicated beam moving head remains the better choice.

Does It Work on UAE Power?

The documented fixtures support AC 100-240V at 50/60Hz, which covers the UAE mains voltage range.

The exact plug supplied with the Stagify unit should still be confirmed before publishing the final product page.

Installation & Safety

When the moving wash light is installed overhead on a truss, use a suitable mounting clamp together with an independent safety cable attached to an approved safety point.

The truss, clamp and supporting structure must be rated for the complete installed load. Lighting fixtures installed above people should be rigged by personnel familiar with professional stage-lighting and event-rigging practices.

The referenced models are IP20 indoor fixtures, so they should not be exposed to rain or uncontrolled outdoor weather unless the exact Stagify model has a different documented IP rating.

Order 19 LED RGBW Moving Wash Lights in the UAE

Stagify supplies professional moving head lights and stage lighting equipment across Dubai and the UAE for event-production companies, wedding planners, venues, DJs, AV installers and rental businesses.

The 19 LED RGBW Moving Wash Light can be combined with beam moving heads, PAR lights, strobes and haze effects to create a complete professional lighting setup.

Contact Stagify for multi-unit orders, venue projects and stage-lighting system requirements.
