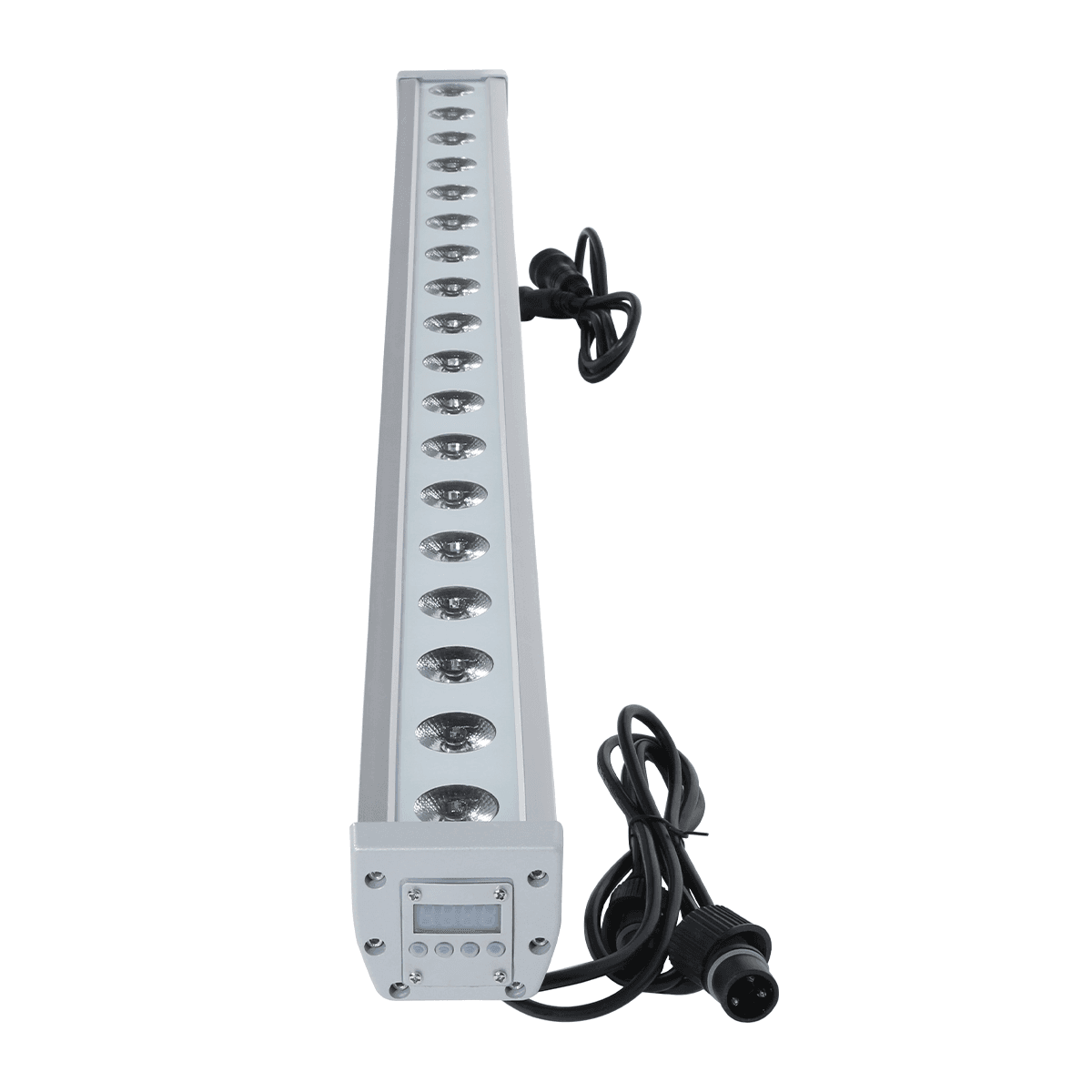

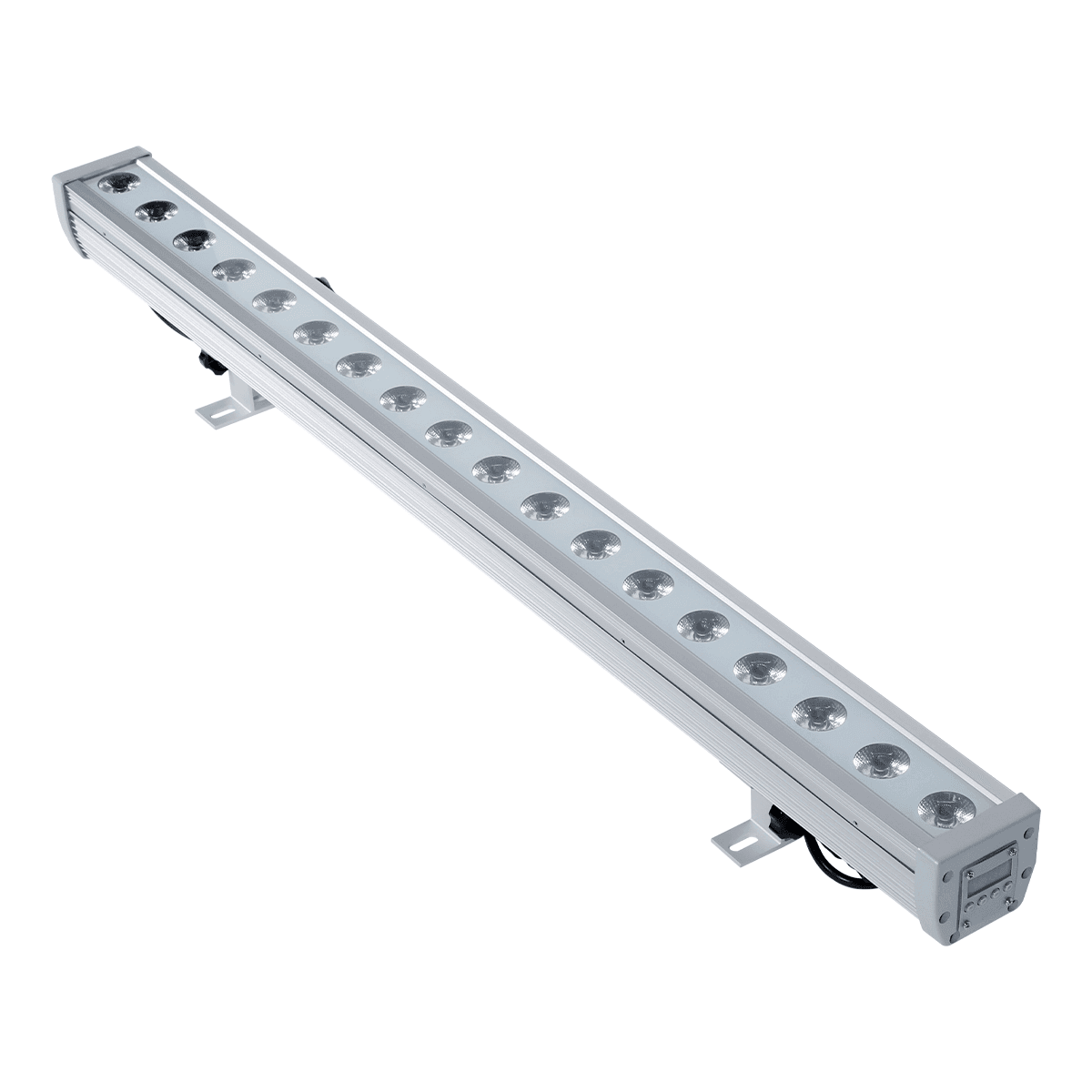

18 LED WATERPROOF WALL WASH BAR LIGHT

18 LED Waterproof Wall Wash Bar Light – Vibrant Lighting for Indoor and Outdoor Spaces

The 18 LED Waterproof Wall Wash Bar Light is a linear RGBW architectural and event-lighting fixture designed to add colour across walls, building facades, wedding backdrops, gardens, entrances and outdoor entertainment spaces. Its 18 × 3W RGBW 4-in-1 LEDs provide red, green, blue and dedicated white output, while the IP65-rated aluminium enclosure makes it suitable for outdoor installations where resistance to dust and water exposure is required.

With 0–100% adjustable intensity, RGBW colour mixing and up to 10 flashes per second, the fixture can move from static architectural illumination to more energetic event effects. Its long linear form makes it particularly useful where an even line of colour is preferred over the concentrated output of a conventional PAR-style fixture.

Technical Specifications

Specification	Details
Product Type	Waterproof RGBW LED Wall Wash Bar
Fixture Rating	80W
LED Quantity	18 LEDs
LED Rating	18 × 3W
LED Type	RGBW 4-in-1
Colour System	Red / Green / Blue / White
Colour Range	Supplier-listed 16.7 million RGBW colours
Intensity Control	Continuous variable intensity
Dimming	0–100%
Strobe	Up to 10 flashes per second
Protection Rating	IP65
Housing	Aluminium
Input Voltage	AC100–240V
Frequency	50–60Hz

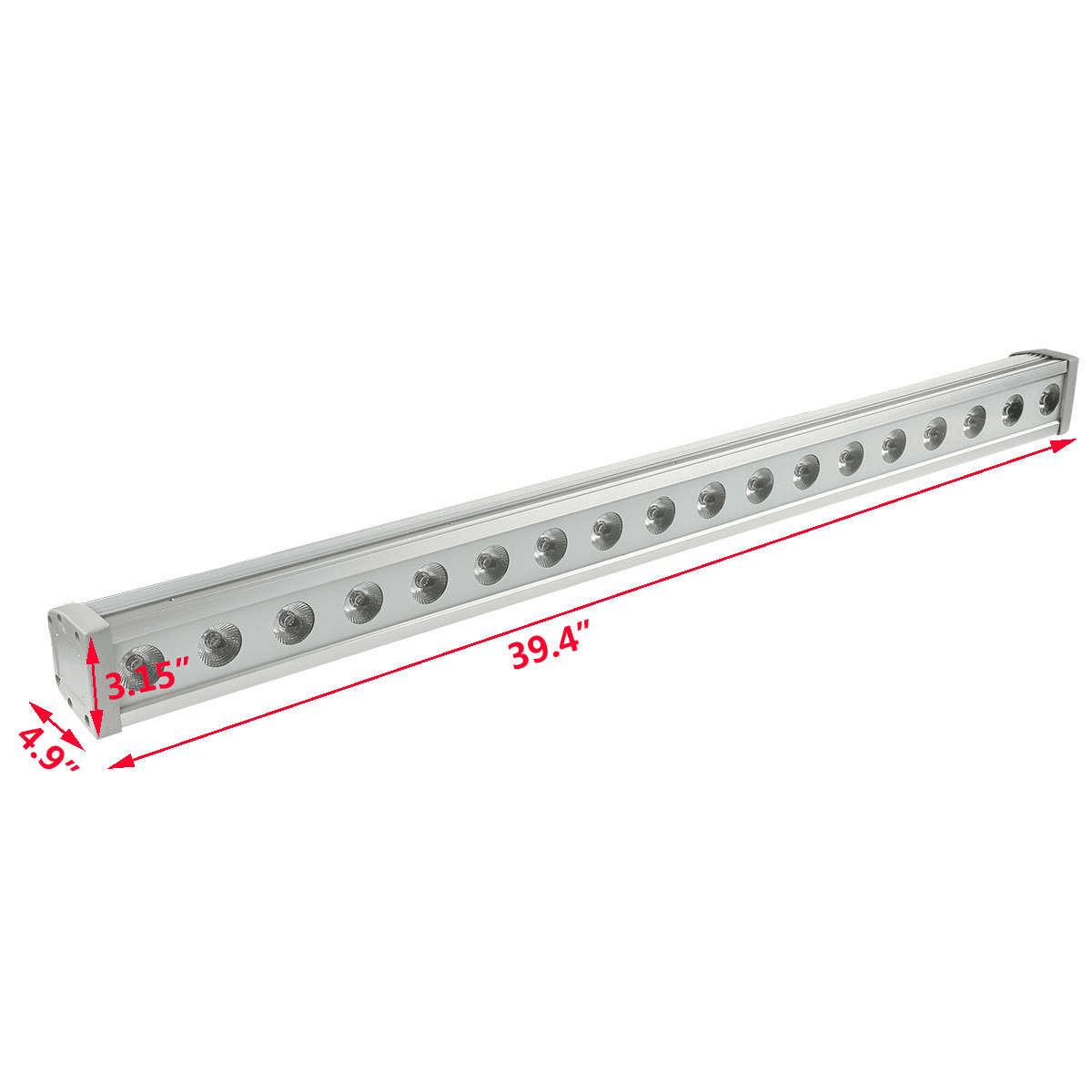

Supplier-Listed Size	1080 × 140 × 180 mm
Supplier-Listed Weight	4.5 kg
Recommended Applications	Architectural walls, facades, gardens, weddings and event spaces

18 × 3W RGBW 4-in-1 LEDs

The fixture uses:

18 × 3W RGBW 4-in-1 LEDs

Each RGBW LED package integrates:

• Red

• Green

• Blue

• White

within the same lighting source.

This gives the wall washer a more flexible colour system than RGB-only fixtures.

Dedicated white is particularly useful where the installation needs to move between:

• Saturated architectural colours

• Pastel-style mixes

• Event themes

• White illumination

• Decorative colour effects

without relying entirely on red, green and blue mixing to create a white-looking output.

RGBW Rather Than RGB-Only

The difference between RGB and RGBW matters for this type of architectural fixture.

An RGB fixture provides:

• Red

• Green

• Blue

and creates other colours by mixing those channels.

This product adds:

White

as a dedicated fourth component.

That can help produce cleaner white effects and broaden the usable colour palette for:

• Weddings

• Building lighting

• Hospitality venues

• Event entrances

• Outdoor décor

The exact white colour temperature is not published, so Stagify should not advertise a particular Kelvin value.

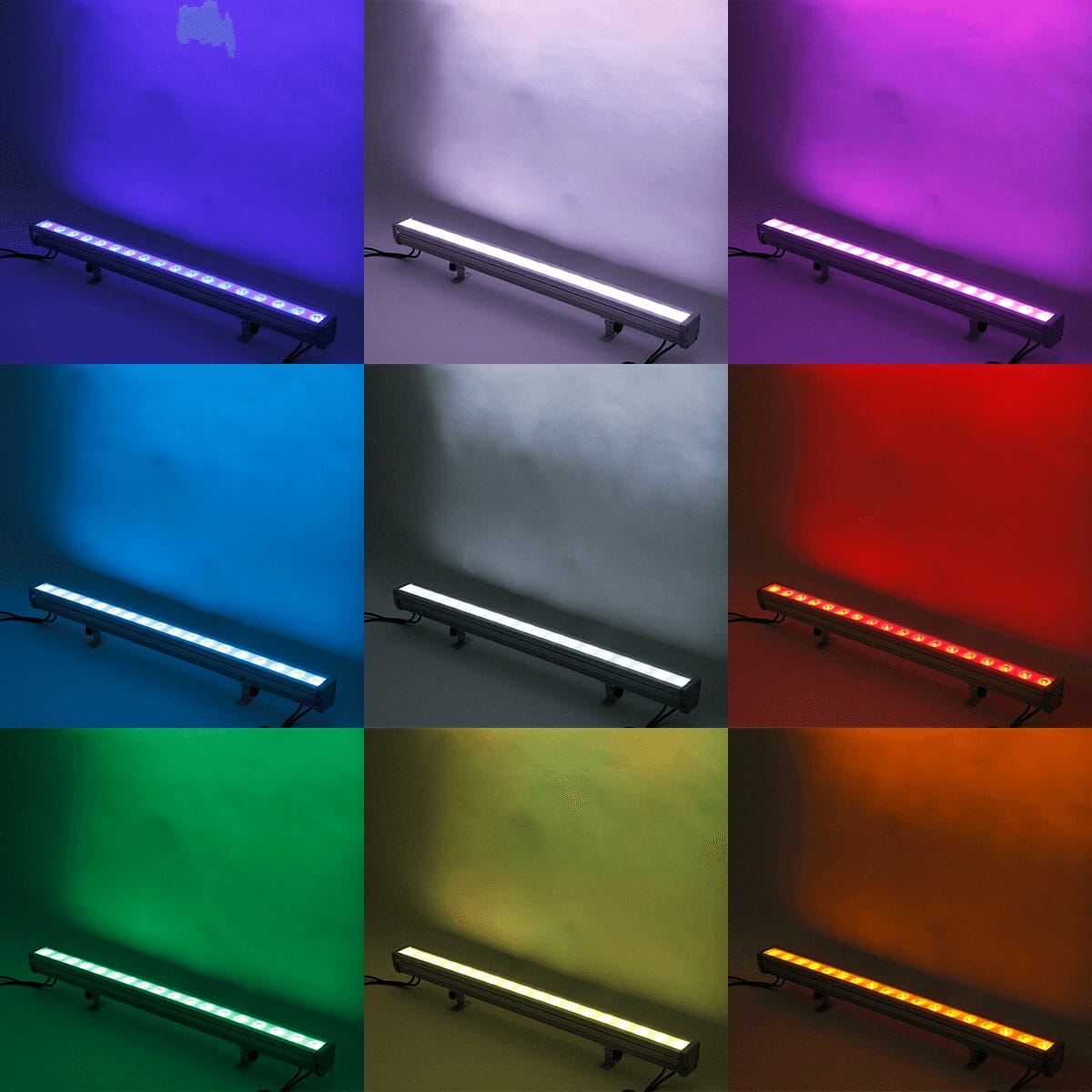

16.7 Million Supplier-Listed Colours

The exact specification states:

16.7 million RGBW colours

with:

continuous variable intensity

This figure refers to the large range of colour combinations that can theoretically be generated through variable mixing of the RGBW channels.

For customer-facing purposes, the more useful takeaway is that the fixture is designed for continuously adjustable RGBW colour mixing, rather than only a small set of fixed preset colours.

Suitable for Architectural Wall Washing

A wall washer serves a different role from a compact PAR.

Instead of concentrating light into a relatively small circular area, a linear wall-wash bar is designed to spread colour along architectural surfaces.

Typical target areas include:

• Building walls

• Hotel facades

• Wedding backdrops

• Entrance structures

• Garden walls

• Columns

• Event scenery

• Decorative exterior surfaces

Several units can be placed in sequence where longer continuous areas need illumination.

Linear Bar Format

The long body shape is particularly useful for architectural work.

A linear fixture can create a more continuous visual line across:

• Walls

• Facades

• Long decorative panels

• Event backdrops

than a small point-source PAR.

This makes the fixture suitable for installations where the goal is to reveal the shape or texture of a surface rather than create narrow beams through the air.

Wall Washing vs Wall Grazing

Fixture placement strongly affects the appearance of architectural lighting.

When positioned farther from a wall, a wall washer can produce broader and more even coverage.

When positioned very close to a textured surface, the light may produce stronger shadows and reveal surface texture.

That closer technique is commonly associated with wall grazing.

The best distance depends on:

• Wall height

• Surface texture

• Fixture spacing

• Desired brightness

• Lens configuration

Because the exact beam angle is not published for this SKU, final placement should be tested on site.

Beam Angle Is Not Confirmed

The exact supplier page does not publish a beam angle.

This is important because visually similar waterproof wall washers are available with optics such as:

• 15°

• 25°

• 30°

• 40°

• 45°

and sometimes multiple interchangeable or optional lens choices.

Stagify should not select one of these figures from another model.

The customer-facing specification should simply omit beam angle until the physical fixture or manual confirms it.

80W Fixture Rating

The supplier lists:

Power Model: 80W

for the complete fixture.

This should be used as the published overall power figure.

The individual LEDs are listed as:

18 × 3W

which gives a nominal LED-source total of:

54W

These two figures are not necessarily contradictory because the complete electrical fixture also contains:

• LED drivers

• Power conversion electronics

• Control circuitry

and manufacturers may rate complete fixtures differently from the simple arithmetic total of LED package labels.

For the product page, keep both source specifications exactly as published:

18 × 3W LEDs
80W fixture rating

Do Not Advertise This as a 54W Fixture

Although:

18 × 3W = 54W

the exact supplier does not describe the complete product as 54W.

The published product rating is:

80W

Therefore, use 80W for the Stagify product specification rather than replacing it with a calculated number.

Electrical Load Planning

Using the supplier's 80W fixture rating:

2 fixtures: approximately 160W
4 fixtures: approximately 320W
8 fixtures: approximately 640W
10 fixtures: approximately 800W

These figures only cover the wall-wash fixtures.

Other equipment in the installation must be calculated separately.

0–100% Dimming

The exact product provides:

0–100% dimming

with what the supplier describes as:

regulated constant colour control

This allows brightness to be reduced while creating different architectural and event-lighting looks.

Dimming can be useful for:

• Guest arrival

• Dinner periods

• Wedding décor

• Corporate presentations

• Building ambience

• Event transitions

A facade does not always need to operate at maximum intensity.

Continuous Variable Intensity

Continuous intensity adjustment also makes it easier to balance several fixtures.

For example, one part of a building may be:

• Lighter in colour

• More reflective

• Closer to the fixture

than another.

Reducing selected fixture intensity can help create a more visually balanced installation.

The exact method used to control intensity externally is not documented on the supplier page.

Up to 10 Flashes Per Second

The supplier lists:

10 flashes per second – any colour

for the strobe function.

This means the RGBW output can be used for flashing effects rather than the fixture being restricted to static architectural illumination.

The strobe effect can be useful for:

• DJ events

• Concerts

• Wedding entertainment

• Stage entrances

• Music events

For permanent architectural applications, static colours and slow changes will usually be more appropriate.

RGBW Colour Strobe

Because the supplier specifically says the strobe can operate with any colour, flashing effects are not limited to white.

This gives event designers the ability to use coloured strobe-style effects that match the overall visual theme.

For example:

• Red flashes

• Blue flashes

• Mixed RGB effects

• White flashes

may be used depending on the selected setting and available fixture controls.

IP65 Weather Protection

The exact fixture carries a confirmed:

IP65 rating

This is one of the product's main advantages.

IP65 provides substantial protection against:

• Dust ingress

• Water jets

and makes the fixture appropriate for many outdoor architectural and event-lighting applications.

What IP65 Means

The first digit:

6

indicates a high level of protection against dust.

The second digit:

5

indicates protection against water jets.

This makes an IP65 fixture substantially more appropriate for exposed outdoor lighting than an indoor IP20 product.

IP65 Does Not Mean Underwater

IP65 should not be interpreted as:

• Submersible

• Fountain-rated

• Swimming-pool rated

• Underwater lighting

Do not install this fixture under water.

If submerged lighting is required, use products specifically designed and rated for that application.

Outdoor Electrical Connections Still Matter

An IP65 lighting fixture does not automatically make the complete installation IP65.

Particular attention should be given to:

• Mains connectors

• Cable joints

• Extension leads

• DMX connections, if fitted

• Distribution equipment

• Junction boxes

A waterproof fixture connected through an unprotected indoor extension connection can still create an unsafe installation.

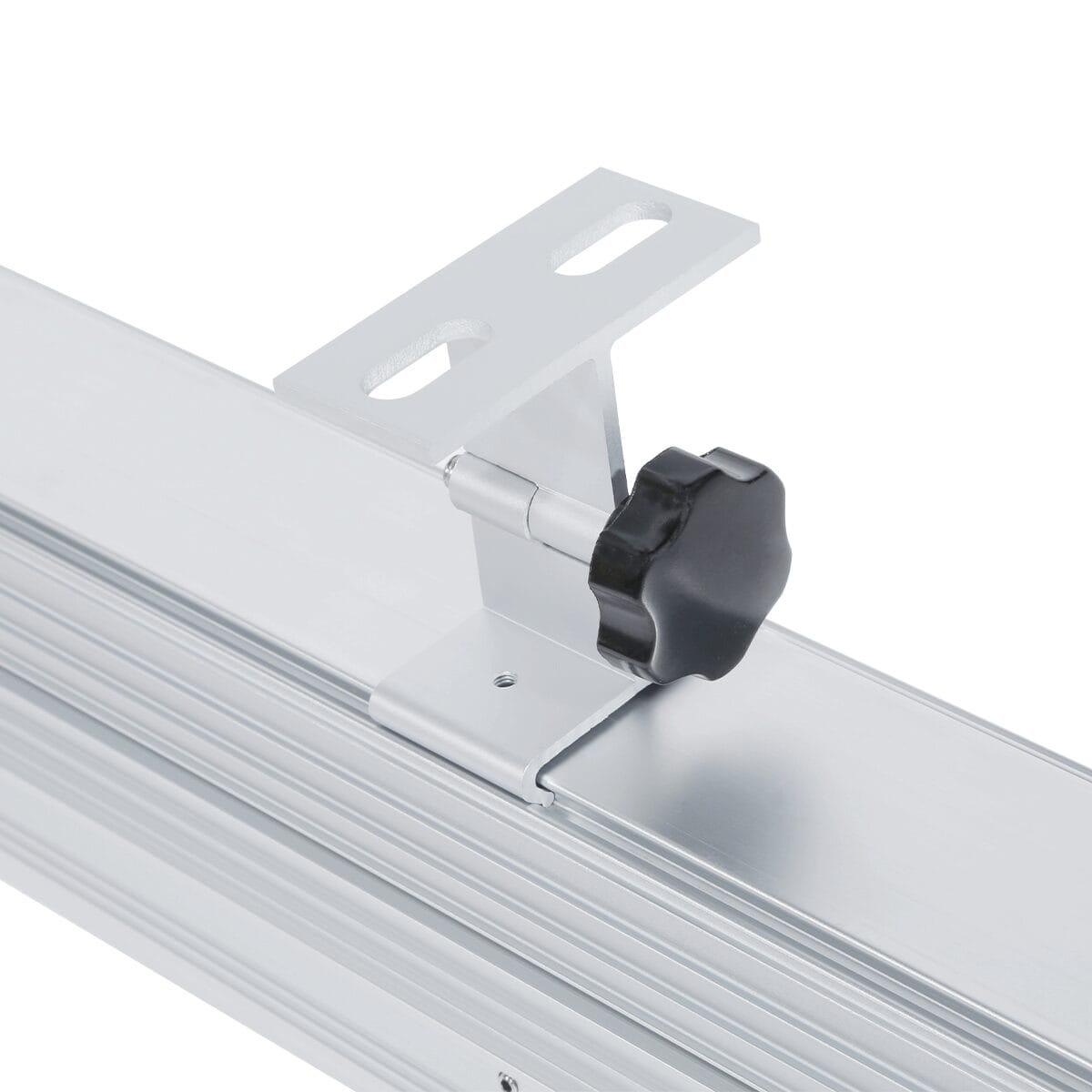

Aluminium Housing

The exact specification identifies the cover/housing material as:

Aluminium

Aluminium is commonly used for outdoor lighting fixtures because it can provide:

• Structural rigidity

• Heat dissipation

• Relatively low weight compared with some steel designs

• Corrosion-resistant performance when appropriately finished

The exact aluminium grade and coating process are not published.

Do not claim aircraft aluminium, die-cast aluminium or another specific alloy unless verified.

Heat Dissipation

LED fixtures still generate heat during operation.

An aluminium body can help transfer heat away from internal components.

For reliable operation:

• Do not cover the housing.

• Maintain normal airflow.

• Keep ventilation or drainage areas clear if present.

• Remove heavy dirt buildup.

• Follow the mounting orientation in the supplied manual.

Outdoor Wedding Lighting

The fixture is well suited to UAE wedding productions using:

• Hotel gardens

• Villa venues

• Outdoor stages

• Courtyards

• Event entrances

• Decorative walls

RGBW output lets the lighting team match the venue to different wedding colour themes.

Possible looks can include:

• Blue

• Pink-style mixed colours

• Purple

• Red

• White

• Green

• Custom RGBW combinations

Wedding Backdrop Lighting

Linear wall washers can be useful behind:

• Floral walls

• Stage décor

• Drapes

• Architectural panels

• Wedding entrances

Several fixtures can be positioned along the base of a backdrop to create more continuous colour.

Care should be taken to avoid visible hot spots where one fixture overlaps another too strongly.

Building Facade Lighting

Architectural facades are another key application.

The bar can be used to highlight:

• Exterior walls

• Columns

• Arches

• Recesses

• Landscape walls

• Entry structures

For large buildings, several fixtures are normally required.

Spacing should be tested according to the building geometry and the actual optical angle.

Hotels and Resorts

Hotels and resorts can use RGBW wall washers to change the visual appearance of outdoor areas after sunset.

Potential locations include:

• Main entrances

• Garden walls

• Outdoor function areas

• Columns

• Decorative architectural features

RGBW gives the venue the flexibility to change colour according to:

• Events

• Seasons

• Weddings

• Corporate branding

• Celebrations

Garden Lighting

The supplier specifically positions the fixture for garden applications.

Possible uses include illuminating:

• Garden walls

• Landscape structures

• Decorative stonework

• Outdoor event areas

The light should be positioned so that it does not create unnecessary glare toward guests or nearby properties.

Corporate Events

RGBW architectural lighting can also support corporate events.

A venue can use coloured walls and backdrops to complement:

• Brand colours

• Product launches

• Conferences

• Awards

• Exhibitions

Stage-light colour mixing is not the same as calibrated digital colour reproduction, so exact brand colours should be checked visually during setup.

Concert and Entertainment Use

The fixture's 10-flashes-per-second effect also gives it a role beyond static architecture.

It can supplement:

• Concert stages

• DJ events

• Outdoor entertainment

• Stage backdrops

where the long linear wash format is useful.

For performer front lighting, dedicated stage wash or profile fixtures are normally more appropriate.

Fixed Fixture Rather Than Moving Head

The wall washer does not provide moving-head pan and tilt.

Its physical direction is set during installation.

Choose this fixture when:

• The target wall stays in one place

• Outdoor protection matters

• Linear coverage is required

• Architectural colour is the priority

Choose a moving-head fixture when:

• The beam must move during the show

• Pan/tilt cues are required

• Dynamic aerial effects are important

Adjustable Installation Angle

The supplier states that the light provides an adjustable angle for directing its output.

This is appropriate for a wall washer because correct aiming is essential for:

• Coverage

• Uniformity

• Avoiding glare

• Matching adjacent fixtures

The exact numerical tilt range is not published.

Do not invent a 180° or 270° bracket range without checking the actual hardware.

Mounting Hardware

The supplier also states that mounting hardware is included.

The exact components and their quantities are not fully detailed.

For permanent architectural installation, use hardware suitable for:

• Fixture weight

• Mounting surface

• Environmental conditions

• Wind exposure where relevant

Do not assume generic screws supplied with a fixture are appropriate for every concrete, steel or masonry structure.

Supplier-Listed 108 cm Length

The supplier publishes:

108 × 14 × 18 cm

for the product size.

Expressed in millimetres:

1080 × 140 × 180 mm

The long 108cm format supports the fixture's role as a linear wall washer.

However, there is an important sourcing note: an older independent lighting catalogue uses 108 × 14 × 18 cm as a packing-size figure for another linear wall-wash platform, so Stagify should physically verify whether TOP PRO's 108cm figure refers to the bare housing or the packed product before using it for tight installation drawings.

Why the Dimension Matters

For architectural projects, dimensions affect:

• Fixture spacing

• Mounting positions

• Cable planning

• Transport

• Storage

• Concealment behind architectural details

If a project requires millimetre-accurate recess or bracket design, measure an actual Stagify unit before fabrication.

4.5 kg Supplier-Listed Weight

The exact supplier table states:

N.W./G.W.: 4.5 KG

This label is ambiguous because:

N.W. normally means net weight
G.W. normally means gross weight

but only one number is supplied.

Therefore, Stagify should not confidently call 4.5kg either:

• Exact net fixture weight

• Exact packed gross weight

The safest catalogue wording is:

Supplier-listed weight: 4.5 kg

until physical weighing or packaging data clarifies it.

AC100–240V Wide-Voltage Input

The exact electrical input is:

AC100–240V / 50–60Hz

This range covers standard UAE mains:

220–240V / 50Hz

Therefore, the fixture's documented electrical range is compatible with normal UAE supply voltage.

UAE Plug Type Is Not Confirmed

Voltage compatibility does not confirm the connector or plug supplied.

The product page does not specify:

• Type G plug

• PowerCon

• Waterproof connector

• Bare cable

• Schuko plug

Do not advertise a particular plug type until current Stagify stock is inspected.

DMX512 Is Not Confirmed on the Exact Page

This is an important publishing point.

Many outdoor wall washers use DMX512.

However, the exact supplier listing for this SKU does not provide:

• DMX protocol

• DMX channels

• DMX IN/OUT

• Control connector

• Control modes

Therefore, Stagify should not add DMX512 to the hard technical table simply because similar products use it.

Why We Should Not Copy DMX from Similar Wall Washers

Other 18-LED wall washers use very different DMX configurations.

Depending on the hardware, similar-looking products may provide:

• 3/7CH

• 4/8CH

• 6/10CH

• 9/23/72CH

• Pixel control

The visual appearance of the housing is not enough to determine the channel structure.

The actual fixture/manual should be checked before DMX is advertised.

Pixel Control Is Not Confirmed

Individual LED or pixel control is also not published.

Do not describe the unit as:

• Pixel bar

• Pixel-mappable

• Individual LED control

• Art-Net controlled

unless those functions are confirmed for the exact hardware.

This product should currently be positioned as an RGBW wall wash bar, not a pixel-effects fixture.

Sound Mode Is Not Confirmed

Some similar stage wall washers include Sound-Activated operation.

The exact supplier page does not list it.

Do not add Sound mode from another model.

Auto and Master/Slave Are Not Confirmed

The same applies to:

• Auto mode

• Master/Slave

These are common in entertainment wall washers but are absent from the exact specification.

Until the control panel/manual is checked, they should stay out.

Best For

The 18 LED Waterproof Wall Wash Bar Light is particularly suitable for:

• Building facades

• Outdoor weddings

• Hotels and resorts

• Gardens

• Event entrances

• Architectural walls

• Corporate events

• Outdoor stages

• Event backdrops

• Restaurants with outdoor areas

• Rental companies

• Event-production companies

Its clearest product position is an IP65 linear RGBW architectural wash with 18 × 3W LEDs and aluminium construction.

What This Fixture Is Not Best For

Consider another product where the requirement involves:

• Moving pan and tilt

• Narrow aerial beam effects

• Individual pixel mapping

• Battery-powered operation

• Underwater installation

• High-CRI filming

• Confirmed DMX programming

• Long-distance follow-spot use

This is primarily a fixed linear wall-wash fixture for architectural and event colour lighting.

18 LED Wall Wash Bar vs 24 LED Waterproof City Color

The 24 LED Waterproof Wall Wash Par Light City Color serves a related but different purpose.

Choose the 18 LED Wall Wash Bar when:

• Long linear coverage is preferred

• The mounting space suits a bar-style body

• Architectural walls are the primary target

• 18 × 3W RGBW output is sufficient

Choose the 24 LED City Color when:

• A more compact flood/PAR-style format is preferred

• A higher-power architectural wash is required

• A single concentrated fixture format better suits the installation

This gives customers two different architectural-lighting form factors.

Wall Wash Bar vs Standard LED PAR

A standard PAR creates a more concentrated pool of light.

A linear wall washer spreads its sources across a long housing.

Choose a PAR for:

• Small stage areas

• DJ lighting

• Performer colour wash

• Compact uplighting

Choose this wall washer for:

• Long walls

• Building facades

• Architectural surfaces

• Extended backdrops

Neither format is universally better; they solve different lighting problems.

Wall Wash Bar vs RGBW Outdoor City Color

A larger RGBW City Color fixture is better suited where the installation requires substantially more output from each individual point.

This 18 LED wall washer is more appropriate where the project benefits from multiple linear fixtures distributed along a surface.

UAE Outdoor Applications

The combination of:

• IP65 enclosure

• Aluminium housing

• AC100–240V input

• RGBW colour

makes the fixture relevant to UAE architectural and event work.

However, UAE conditions can involve:

• High temperatures

• Fine dust

• Humidity

• Coastal salt

• Strong sunlight

An IP65 rating does not remove the need for appropriate installation, maintenance and environmental planning.

Heat and Sun Exposure

The supplier does not publish a maximum ambient operating temperature.

Therefore, do not claim the fixture is rated for:

• 45°C

• 50°C

• 55°C

simply because another outdoor fixture supports those conditions.

For installations exposed to UAE summer heat or direct sunlight, confirm the manufacturer-rated ambient temperature before permanent installation.

Coastal Installations

IP65 addresses water and dust ingress but does not specify salt-spray corrosion resistance.

For hotels or structures near the coast, periodic inspection is sensible.

Check:

• Housing finish

• Mounting bolts

• Brackets

• Cable entries

• Connectors

for signs of corrosion.

Do not advertise a salt-spray certification unless actual testing documentation is available.

Maintenance

Outdoor fixtures should be inspected periodically.

Recommended maintenance includes:

• Cleaning the front lens

• Removing dust and sand

• Inspecting the enclosure

• Checking seals

• Checking cable entries

• Tightening mounting hardware

• Looking for water ingress

• Inspecting electrical connections

Always disconnect mains power before maintenance.

Installation Planning

Before permanently mounting the wall washer:

1. Test the fixture at night.

2. Confirm the required distance from the wall.

3. Check the illuminated height and width.

4. Test overlap between adjacent units.

5. Adjust aiming.

6. Confirm cable routes.

7. Verify outdoor electrical protection.

8. Only then complete permanent mounting.

This is particularly important because the exact beam angle is not published.

Rigging and Mounting Safety

For elevated installations:

• Use mounting hardware rated for the installation.

• Confirm the supporting structure.

• Use corrosion-resistant hardware where appropriate.

• Secure cables.

• Prevent cable strain.

• Add secondary safety retention where required by the installation method.

• Protect all electrical connections from weather.

Permanent architectural installations should be completed by suitably competent personnel.

What's Included & Compatibility

The supplier states that mounting hardware is included, although it does not provide a detailed packing list.

Confirmed core product:

• 1 × 18 LED Waterproof Wall Wash Bar Light

The exact page does not clearly confirm inclusion of:

• DMX cable

• Power extension

• Safety cable

• Flight case

• Remote control

• Specific wall anchors

Do not add these to package contents without checking current stock.

How Many LEDs Does It Have?

The fixture uses:

18 × 3W RGBW 4-in-1 LEDs

Is It RGB or RGBW?

It is RGBW.

The four colour components are:

• Red

• Green

• Blue

• White

Does It Have Dedicated White LEDs?

White is integrated into the documented RGBW 4-in-1 LED packages.

How Much Power Does It Use?

The supplier lists the complete fixture as:

80W

Why Doesn't 18 × 3W Equal 80W?

The LED package labels total 54W, while the supplier separately gives an 80W complete-fixture rating.

The complete product includes drivers and electronics in addition to the LED packages.

Use the supplier's 80W fixture rating rather than replacing it with 54W.

Is It Waterproof?

The fixture has a confirmed:

IP65 rating

making it appropriate for many outdoor installations.

It is not designed to be submerged.

Can It Be Used in Rain?

IP65 provides protection against water jets and is suitable for many exposed outdoor applications when correctly installed.

Electrical connections and other components in the installation must also have suitable environmental protection.

Can It Be Used Underwater?

No.

IP65 is not a submersible rating.

Does It Have Dimming?

Yes.

The supplier confirms:

0–100% dimming

How Fast Is the Strobe?

The exact specification lists:

up to 10 flashes per second

Can It Strobe in Different Colours?

Yes.

The supplier specifically states:

10 flashes per second – any colour

Does It Support DMX512?

DMX512 is not documented on the exact supplier page.

Do not add DMX capability until the physical control interface or manual confirms it.

How Many DMX Channels Does It Have?

No exact DMX channel count is confirmed.

Does It Have Pixel Control?

Pixel-level control is not documented.

Does It Have Sound-Activated Mode?

Sound mode is not confirmed by the exact supplier.

What Is the Beam Angle?

The exact beam angle is not published.

Fixture spacing should be tested on site.

What Is the Housing Material?

The supplier lists:

Aluminium

What Size Is It?

The supplier lists:

1080 × 140 × 180 mm

However, because similar linear wall-wash catalogues sometimes use approximately this measurement as a packing dimension, physical verification is recommended before using it for precise architectural fabrication.

How Much Does It Weigh?

The supplier provides one 4.5 kg figure under the combined field “N.W./G.W.”

The source does not make clear whether this is net or gross weight.

What Voltage Does It Use?

The exact specification is:

AC100–240V / 50–60Hz

Does It Work on UAE Voltage?

Yes.

The input range covers standard UAE 220–240V / 50Hz mains power.

The supplied plug/connector type is not confirmed.

Is It Suitable for Outdoor Weddings?

Yes.

The confirmed IP65 enclosure and RGBW colour system make it suitable for correctly installed outdoor wedding and event-lighting applications.

Contact Stagify for current availability and confirmation of the exact supplied accessories before ordering.
