120W Spot LED Moving Head Light For DJ Disco Party

120W Spot LED Moving Head Light For DJ Disco Party

The 120W Spot LED Moving Head Light For DJ Disco Party is a compact LED spot fixture designed for sharp gobo projection, colour effects and controlled moving-light coverage. Its 120W white LED, 15° optics, dual gobo system, rotating 5-facet prism, motorised focus and 11/16-channel DMX512 control make it suitable for DJs, weddings, discos, clubs, concerts and mobile event-production systems.

Technical Specifications

*See Notes Before Publishing regarding the independently documented gobo-count discrepancy.

120W White LED Spot Source

The fixture is built around a 120W high-brightness white LED with a published colour temperature of approximately 7500K.

Unlike an RGB wash moving head, this unit starts with a concentrated white source and then creates colours and patterns through internal optical wheels.

That makes it better suited to:

• Gobo projection

• Defined spot effects

• Moving patterns

• Aerial beams through haze

• Performer accents

• DJ and dance-floor effects

The supplier publishes an LED life rating of up to 50,000 hours. This should be treated as the manufacturer's rated LED life rather than a guaranteed service interval.

15° Spot Optics

The exact supplier specifies a 15° beam angle.

This gives the fixture a focused spot-style output that is broader than a very narrow discharge beam but considerably more controlled than a wash light.

The 15° optic works well for:

• Gobo projection

• Stage-area accents

• DJ booths

• Dance floors

• Medium event stages

• Scenic projection

It is particularly useful where buyers want visible pattern projection rather than only narrow aerial shafts.

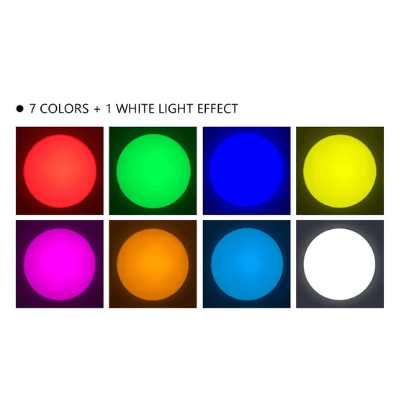

7 Colours Plus Open

The colour wheel provides 7 colours plus open/white.

The supplier also confirms:

• Adjustable colour-wheel speed

• Variable-direction rainbow effect

This allows the fixture to produce both fixed colours and continuously moving colour sequences.

For weddings and corporate events, operators can select individual colours to match the stage design.

For club or DJ applications, rotating rainbow effects can create faster visual transitions.

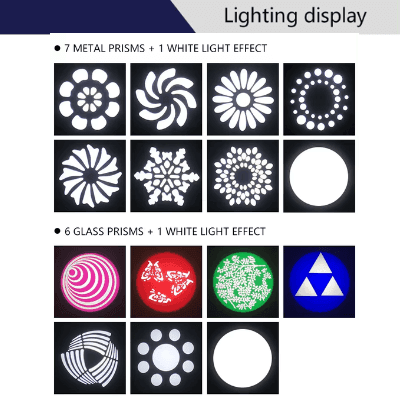

Dual Gobo System

One of the strongest features of this spot moving head is its use of both static and rotating gobo wheels.

The exact supplier table lists:

• Static wheel: 7 gobos + open

• Rotating wheel: 6 rotatable/interchangeable gobos + open

The rotating gobo system also supports:

• Variable rotation speed

• Clockwise rotation

• Counter-clockwise rotation

• Stream effects

• Dithering / shake-style effects

This makes the fixture more versatile than a basic beam moving head with only a fixed gobo wheel.

Rotating and Interchangeable Gobos

Rotating gobos allow patterns to move independently of the fixture's pan and tilt motion.

This can produce:

• Spinning projected shapes

• Animated floor patterns

• Scenic wall effects

• Moving aerial textures

• Dynamic DJ visuals

The supplier describes the rotating gobos as interchangeable, making the optical system potentially useful for productions that want different physical pattern designs.

The exact gobo dimensions are not published and should not be guessed.

5-Facet Rotating Prism

The fixture includes a confirmed 5-facet rotating prism.

Prism effects multiply the original projected pattern, creating several visible copies from one source.

The prism supports adjustable:

• Rotation speed

• Direction

This is useful for creating more complex effects during:

• DJ drops

• Concert transitions

• Wedding entrances

• Dance performances

• Club shows

Prism works particularly well when combined with gobos and haze.

Motorised Focus from 2 Metres to Infinity

The fixture includes electric focus, documented from approximately 2 metres to infinity.

This allows the operator to sharpen gobo or spot projection remotely rather than manually adjusting the lens at the fixture.

Motorised focus is especially useful where the moving head is mounted:

• On truss

• High above a stage

• Behind a DJ

• Across a ballroom

The operator can adjust projection clarity directly through the lighting system.

540° Pan and 270° Tilt

Movement is specified at:

• Pan: 540°

• Tilt: 270°

Both support 8-bit and 16-bit positioning.

Sixteen-bit movement provides finer positional control, which is useful for slow movements and accurate repeatable cues.

Several fixtures can be programmed together to create:

• Mirrored sweeps

• Crossing spots

• Fan movements

• Symmetrical positioning

• Coordinated gobo patterns

11CH and 16CH DMX512

The fixture provides two DMX personalities:

• 11 channels

• 16 channels

The smaller 11CH mode is useful for simpler rigs where conserving DMX addresses matters.

The expanded 16CH personality offers access to more detailed fixture functions.

DMX512 allows the Spot 120W to operate alongside:

• Beam moving heads

• Moving washes

• LED PAR lights

• Blinders

• Pixel effects

• Other spot fixtures

Sound-Activated Operation

Sound mode is confirmed for music-responsive operation.

This is useful for:

• Mobile DJs

• Bars

• Clubs

• Parties

• Wedding entertainment

The fixture can respond to music using its built-in programmes without requiring continuous console operation.

For precise event cues, DMX remains the preferred option.

Automatic Programmes

The fixture also supports Auto operation.

This allows built-in shows to run without an external lighting controller.

Auto mode is suitable for:

• Small parties

• DJ setups

• Bars

• Temporary installations

This gives the fixture useful plug-and-play functionality while retaining full DMX capability for professional productions.

Master-Slave Mode

Several compatible fixtures can operate in Master-Slave configuration.

One light runs the selected programme while the others follow.

This provides a simple way to create synchronised effects without programming every fixture individually.

DMX should be used when each moving head needs different colours, gobos or positions.

1–25Hz Strobe

The fixture offers a documented 1–25 flashes-per-second shutter effect.

This allows lighting designers to move from slower pulse effects to rapid entertainment strobes.

Strobe works particularly well with:

• Gobos

• Prism

• Fast movement

• Colour changes

Rapid flashing should be used responsibly around guests or performers who may be sensitive to strobe effects.

0–100% Linear Dimming

The LED source supports 0–100% linear dimming.

This lets the fixture transition from blackout to full output without relying solely on the shutter.

Dimming is useful for:

• Slow stage fades

• Wedding entrances

• Corporate event transitions

• Concert build-ups

• DJ performances

Full-Colour LCD Display

A full-colour LCD display is built into the fixture for configuration.

Technicians can use it to set supported parameters such as:

• DMX address

• DMX personality

• Auto operation

• Sound mode

• Master-Slave configuration

This is particularly useful for rental companies that regularly reconfigure fixtures for different events.

AC100–240V / 50–60Hz Input

The confirmed power-input range is AC100–240V at 50/60Hz.

This covers standard UAE 220–240V / 50Hz mains supply.

The exact mains plug supplied with Stagify stock should still be checked before claiming that a UAE Type G plug is included.

7KG Net Weight

The fixture has a documented 7kg net weight and approximately 8kg gross packed weight.

The published packing size is:

430 × 315 × 240mm

This is packing information rather than confirmed bare-fixture dimensions.

The 7kg fixture weight should be considered when selecting:

• Truss

• Clamps

• Safety attachments

• Flight cases

• Transport systems

Spot Moving Head vs Beam Moving Head

These two fixture types serve different purposes.

Choose this 120W Spot when you need:

• Sharp gobos

• Rotating gobos

• Pattern projection

• Motorised focus

• 15° spot coverage

• Colour and prism effects

Choose a Beam Moving Head when you need:

• Much narrower aerial shafts

• Long-distance beam effects

• High-intensity haze-visible lines

• Beam-focused optics

The 120W Spot is therefore the better option when pattern projection and optical versatility matter more than creating the narrowest possible beam.

Spot Moving Head vs Moving Wash

A wash fixture is designed to spread colour over a wide stage area.

This Spot is designed to produce more defined projection.

Choose a Moving Wash for:

• Broad performer coverage

• RGB colour mixing

• General stage illumination

Choose the 120W Spot for:

• Gobos

• Focused spot projection

• Patterns

• Prism effects

• Controlled moving highlights

Best For

The 120W Spot LED Moving Head Light is particularly suitable for:

• Mobile DJs

• Nightclubs

• Discos

• Wedding stages

• Live bands

• Concerts

• Hotel ballrooms

• Corporate entertainment

• Event-production companies

• Lighting rental businesses

What's Included & Compatibility

Core product:

• 1 × 120W Spot LED Moving Head Light

Compatible with suitable:

• DMX512 controllers

• 3-pin DMX cabling

• Aluminium stage truss

• Rated moving-head clamps

• Independent secondary safety cables

• Controlled haze equipment

A matching hardware listing documents a manual and power cable in the carton, but the exact supplier page does not clearly list the Stagify package contents. Confirm the physical stock before advertising those accessories as included.

What Is the Beam Angle?

The exact supplier confirms a 15° beam angle.

How Many Colours Does It Have?

The colour wheel includes 7 colours plus open/white, with variable rainbow rotation.

Does It Have Rotating Gobos?

Yes.

The exact supplier confirms both static and rotating gobo wheels.

The rotating gobos can run clockwise or counter-clockwise and support adjustable rotation speed.

Does It Have a Prism?

Yes.

The fixture includes a 5-facet rotating prism with adjustable rotation speed and direction.

Does It Have Motorised Focus?

Yes.

Electric focus is confirmed from approximately 2m to infinity.

What Are the Pan and Tilt Ranges?

The documented movement is:

• 540° pan

• 270° tilt

with 8/16-bit resolution.

How Many DMX Channels Does It Use?

The fixture supports 11CH and 16CH DMX512 modes.

Can It Work Without DMX?

Yes.

Confirmed modes include:

• Auto

• Sound

• Master-Slave

• DMX512

Does It Work on UAE Power?

Yes.

The AC100–240V / 50–60Hz specification covers standard UAE mains power.

The exact plug still requires physical verification.

Is It Waterproof?

No confirmed IP rating is published on the exact supplier page.

Do not market this exact SKU as:

• Waterproof

• IP65

• Rain-resistant

• Outdoor-rated

unless the physical fixture label or manufacturer documentation confirms an ingress-protection rating.

Installation & Rigging

For overhead installation:

• Use an appropriately rated lighting clamp.

• Add independent secondary safety retention.

• Include the 7kg fixture weight in truss calculations.

• Leave clearance for full 540° pan and 270° tilt movement.

• Keep DMX and power cables away from moving sections.

• Maintain ventilation around the fixture.

• Keep the light protected from moisture unless an IP rating is confirmed.

120W Spot Moving Head Lights in the UAE

Stagify supplies spot moving heads, beam lights and professional stage-lighting equipment across the UAE for DJs, wedding companies, venues and event-production businesses.

This 120W fixture fills the compact spot role in the range: 15° optics, dual gobo wheels, motorised focus and a rotating 5-facet prism, rather than the narrow aerial-beam focus of a 230W 7R moving head.

Contact Stagify for current availability and confirmation of the flight-case configuration, DMX personality and complete bundle contents before ordering.
