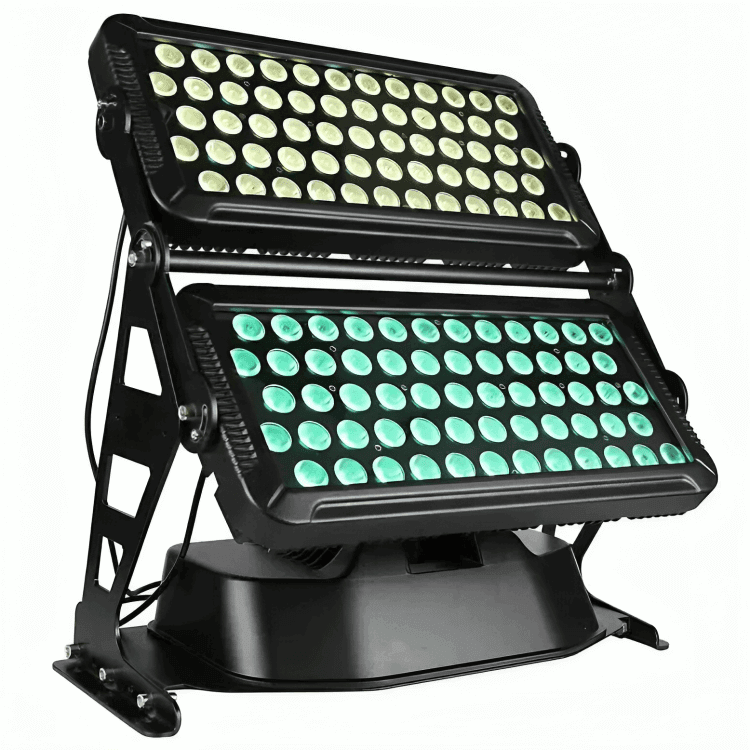

120Px12W LED City Color Outdoor Light IP65 Waterproof

120Px12W LED City Color Outdoor Light IP65 Waterproof

The 120Px12W LED City Color Outdoor Light IP65 Waterproof is a high-output architectural and event wash fixture designed for building façades, outdoor stages, festivals and large venues. Its verified configuration uses 120 × 10W RGBWA+UV LEDs with 1200W total power, IP65 weather protection, DMX512 control and selectable beam-angle options for large-area colour coverage.

Technical Specifications

Important Note About the 120Px12W Product Name

The product is currently marketed under the name 120Px12W LED City Color Outdoor Light.

However, the supplier's technical specification lists the actual light source as:

120 × 10W RGBWA+UV LEDs

with a total fixture power rating of:

1200W

For this reason, “120Px12W” should be treated as the current product designation rather than a confirmed statement that every LED operates at 12W.

Stagify should not change the LED specification to 120 × 12W unless the physical fixture label or manufacturer datasheet confirms a different version.

1200W Output for Large Outdoor Wash Applications

With a documented 1200W total fixture power, this City Color light is designed for applications where much broader coverage is required than a conventional LED PAR.

It is particularly useful for lighting:

• Building façades

• Outdoor stages

• Hotels

• Event structures

• Large scenic walls

• Exhibition exteriors

• Festival environments

• Architectural features

The large LED array spreads colour across substantial surfaces rather than concentrating output into the narrow shaft associated with a beam moving head.

For production companies, this makes the fixture useful when the goal is to transform the colour of an entire structure or stage background.

120 RGBWA+UV 6-in-1 LEDs

The verified source consists of 120 × 10W RGBWA+UV six-in-one LEDs.

Each colour system incorporates:

• Red

• Green

• Blue

• White

• Amber

• Ultraviolet

Adding white, amber and UV channels expands the colour range beyond a standard RGB fixture.

White can support cleaner neutral output, while amber allows warmer tones that work well on building façades, wedding venues and architectural surfaces.

UV introduces another effect option for entertainment environments and UV-reactive materials.

Wider Colour Range Than Standard RGB Wash Lights

A conventional RGB city wash creates colours through red, green and blue mixing.

The RGBWA+UV system provides three additional components.

This allows lighting designers to develop:

• Saturated RGB colours

• Warm amber tones

• Cleaner white output

• Pastel-style colour mixtures

• UV effects

• Complex architectural colour combinations

This broader palette is particularly useful when the fixture is being used for corporate branding or themed events where the required colour needs to match the production design more closely.

Four Beam-Angle Options

The supplier lists 15°, 25°, 45° and 60° beam-angle options.

Each angle serves a different type of installation.

15° provides a tighter and more concentrated projection.

25° balances throw distance and coverage.

45° produces a broader wash.

60° is suited to wide-area illumination where the fixture is positioned relatively close to the target surface.

These published angles should not be described as a motorised zoom range unless the physical fixture confirms that functionality.

Before ordering multiple units, confirm which optical configuration is fitted to the Stagify stock.

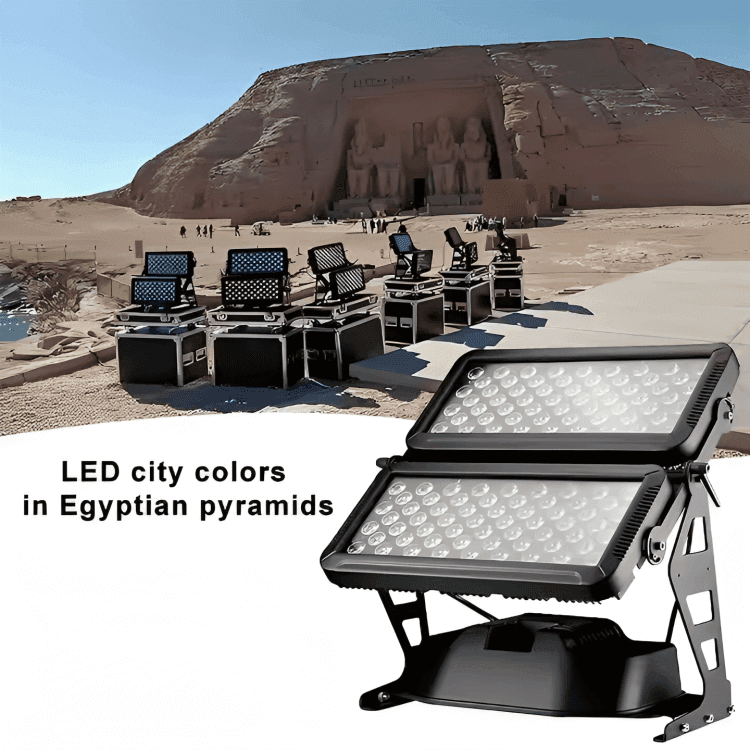

Designed for Building Façade Lighting

The high LED count and broad optical choices make this model particularly relevant to architectural façade lighting.

A fixture can be positioned at ground level and directed upward toward a building, or installed from another approved position depending on the project.

Several units can be arranged along a façade to create:

• Single-colour architectural washes

• Corporate colour schemes

• Alternating colour sections

• Event-specific themes

• Slow colour transitions

For large buildings, fixture spacing, projection distance and beam angle should be planned before installation.

IP65 Protection for Outdoor Use

The fixture carries a verified IP65 protection rating.

IP65 means the enclosure is designed to resist dust ingress and water jets, making it more appropriate for outdoor production and architectural installations than standard IP20 indoor stage lights.

Typical outdoor applications include:

• Festivals

• Outdoor wedding stages

• Building façades

• Hotel exteriors

• Outdoor concerts

• Temporary event structures

IP65 does not mean the fixture can be submerged in water.

Connectors, cabling and the complete electrical installation should also be suitable for the environment.

Silent Convection Cooling

The fixture uses convection cooling rather than a conventional continuously operating cooling fan.

This provides an important advantage in applications where operating noise matters.

Potential environments include:

• Film sets

• Television production

• Theatre

• Corporate events

• Architectural installations

• Formal outdoor ceremonies

Fanless or convection-based cooling also removes one common mechanical noise source from the lighting installation.

Adequate airflow around the enclosure should still be maintained.

Flicker-Free LED Driver for Camera Use

The exact supplier specification identifies a flicker-free LED driver.

This is useful when the fixture is used around:

• Television cameras

• Event videography

• Live streaming

• Film production

• Concert recording

• Corporate broadcasts

Poorly controlled LED drivers can produce visible banding or flicker on camera even when the light appears stable to the human eye.

A flicker-controlled driver makes the fixture more appropriate for events where lighting needs to perform both for the audience and for recorded video.

32-Bit Precision Dimming

The fixture provides 32-bit precision dimming for smoother intensity transitions.

High-resolution dimming is particularly useful for architectural and broadcast applications where gradual fades should appear continuous rather than stepped.

The operator can use controlled intensity changes for:

• Slow façade transitions

• Wedding entrances

• Corporate reveals

• Scenic fades

• Television lighting

• Concert programming

This gives the City Color fixture more flexibility than simply operating at full output.

Five Selectable Dimming Curves

The fixture also provides five user-selectable 32-bit dimming curves.

Different curves change how the light responds as the DMX dimmer value increases or decreases.

This allows a programmer to select dimming behaviour according to the type of production.

A concert may benefit from more immediate intensity response, while theatre, television or architectural lighting may require slower and smoother transitions.

Variable Electronic Strobe

A variable electronic strobe is built into the fixture.

Although the primary purpose of a City Color light is large-area wash illumination, the strobe function gives the fixture another role during entertainment productions.

Strobe can be introduced during:

• Concert drops

• Festival sequences

• DJ performances

• Stage reveals

• Music-driven effects

For architectural installations and formal events, the same fixture can remain in static or slowly changing colour modes.

Built-In Colour and Chase Macros

The fixture includes built-in colour and chase macros available through DMX.

These pre-programmed effects can reduce the time required to create common colour sequences.

Instead of manually programming every transition, an operator can use built-in effects as a starting point and integrate them with the rest of the event lighting.

This is particularly useful when several City Color fixtures are arranged around a large stage or building.

DMX512 Control

Professional DMX512 control allows the fixture to integrate into a complete event-lighting system.

It can operate alongside compatible:

• Moving head lights

• LED wall washers

• PAR fixtures

• Pixel lights

• Strobes

• Stage effects

A central lighting console can coordinate colour, dimming, strobe and other supported functions across the production.

The exact DMX channel count is not clearly published for this SKU, so Stagify should verify the channel chart before adding that number to the technical specification.

Standalone Operation

A full DMX console is not required for every installation.

The fixture also supports standalone operation, allowing it to run without an external controller.

This can be useful for:

• Permanent façade lighting

• Decorative installations

• Smaller events

• Venue exterior lighting

For complex shows or installations containing several different fixture types, DMX remains the more flexible control method.

Master-Slave for Multiple City Color Fixtures

Master-Slave operation allows compatible fixtures to run synchronised effects.

This is useful when several identical lights are distributed along:

• A building façade

• Stage wings

• Large scenic walls

• Outdoor structures

• Event entrances

For more complex colour zoning, individual DMX addressing allows each unit to be controlled separately.

28KG Professional Outdoor Fixture

The documented net weight is approximately 28 kg, with a gross packed weight of approximately 35 kg.

This is therefore a substantial professional lighting fixture rather than a lightweight portable PAR.

Its body measures approximately:

660 × 300 × 750 mm

Transport, rigging and installation plans should account for both size and weight.

Several units can represent a significant structural load when installed on truss or elevated support systems.

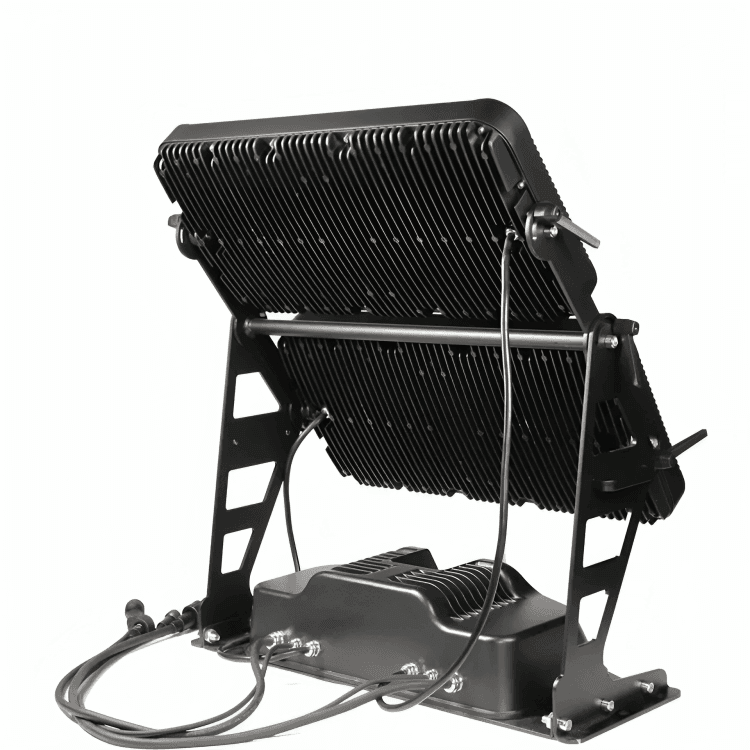

Dual Mounting Brackets

The fixture is equipped with dual mounting brackets for positioning and installation.

The bracket arrangement helps support the large housing while allowing the projection direction to be adjusted.

Depending on the project, the light may be used:

• From ground level

• On a suitable platform

• On an engineered support structure

• With compatible professional stage rigging

Any elevated installation must use hardware rated for the complete fixture weight.

AC90–265V Wide-Voltage Input

The published electrical range is AC90–265V at 50/60Hz.

This comfortably covers the UAE's standard 220–240V / 50Hz mains supply.

The wide-voltage design also makes the fixture practical for rental and touring environments where professional lighting equipment may operate from different power systems.

The exact plug or outdoor power connector supplied with the Stagify unit should still be physically confirmed before publication.

Best For

The 1200W City Color fixture is particularly suitable for:

• Building façade illumination

• Outdoor concerts

• Festivals

• Large wedding stages

• Hotel exterior lighting

• Corporate events

• Product launches

• Exhibition structures

• Film and television production

• Event-production companies

• Architectural lighting contractors

• Professional rental businesses

What's Included & Compatibility

Core product:

• 1 × 120Px12W LED City Color Outdoor Light

The verified fixture includes:

• Dual mounting bracket system

• Integrated RGBWA+UV LED array

It is compatible with suitable:

• DMX512 controllers

• Professional outdoor-rated power systems

• Stage truss and engineered support structures

• Properly rated clamps and installation hardware

• Other DMX stage-lighting equipment

Power cables, DMX cables, flight cases, clamps and safety hardware should only be listed as included if the actual Stagify package confirms them.

Does This Light Really Use 120 × 12W LEDs?

The current product name says 120Px12W, but the supplier's technical table specifies 120 × 10W RGBWA+UV LEDs and 1200W fixture power.

Until the physical unit or manufacturer datasheet confirms otherwise, Stagify should publish 120 × 10W as the verified LED-source specification.

What Colours Does the City Color Light Produce?

The fixture uses RGBWA+UV six-colour technology:

• Red

• Green

• Blue

• White

• Amber

• UV

These channels can be combined to create a broad range of architectural and event colours.

Is the City Color Light Waterproof?

The fixture carries an IP65 protection rating.

This makes it suitable for outdoor installations where dust and water exposure are expected, although it must not be submerged.

All connectors and surrounding electrical equipment should also be installed appropriately for outdoor use.

What Beam Angle Does It Have?

The supplier lists four optical options:

• 15°

• 25°

• 45°

• 60°

Stagify should confirm which lens or beam configuration is installed on current stock before promising a specific angle to the buyer.

Does It Support DMX512?

Yes.

Professional DMX512 control is confirmed, along with standalone and Master-Slave operation.

The exact number of DMX channels is not reliably published for this SKU and should be verified from the product manual.

Is It Suitable for Video and Television?

The supplier specifies a flicker-free LED driver, making this fixture more suitable for camera-facing applications than uncontrolled LED wash lights.

Actual camera performance will also depend on frame rate, shutter settings and the programmed dimming level.

Does It Work on UAE Power?

Yes.

Its AC90–265V / 50–60Hz input range covers standard UAE 220–240V / 50Hz mains power.

The supplied plug or connector type should still be confirmed from physical Stagify inventory.

Installation & Outdoor Safety Requirements

At approximately 28 kg, this fixture requires professional handling and appropriately rated mounting equipment.

For elevated installations:

• Verify structural capacity.

• Use correctly rated clamps and brackets.

• Add suitable secondary retention where required.

• Secure power and DMX cables.

• Maintain adequate clearance around the fixture.

• Do not exceed the rated load of truss or support structures.

Although the enclosure is IP65, the complete installation must be assessed as a system.

Outdoor power distribution, connectors and extension cables must also be suitable for the environment.

Professional permanent or elevated installations should be completed by qualified personnel familiar with outdoor event and architectural lighting systems.
