12 Way Power Distribution Box 63A

12 Way Power Distribution Box 63A for Stage & LED Screens UAE

The 12 Way Power Distribution Box 63A is a professional three-phase power breakout unit designed for stage lighting, LED screens and event-production equipment. It combines a 63A 5-pin industrial input with 12 × 16A outputs, a stated 35kW total capacity and three-phase voltage monitoring in a compact aluminium enclosure suitable for professional UAE production environments.

Technical Specifications

63A Three-Phase Input for Professional Event Power

Large stage productions rarely operate efficiently from a collection of independent extension leads. Lighting fixtures, LED screens and production equipment need power distributed from a central point into manageable branch circuits.

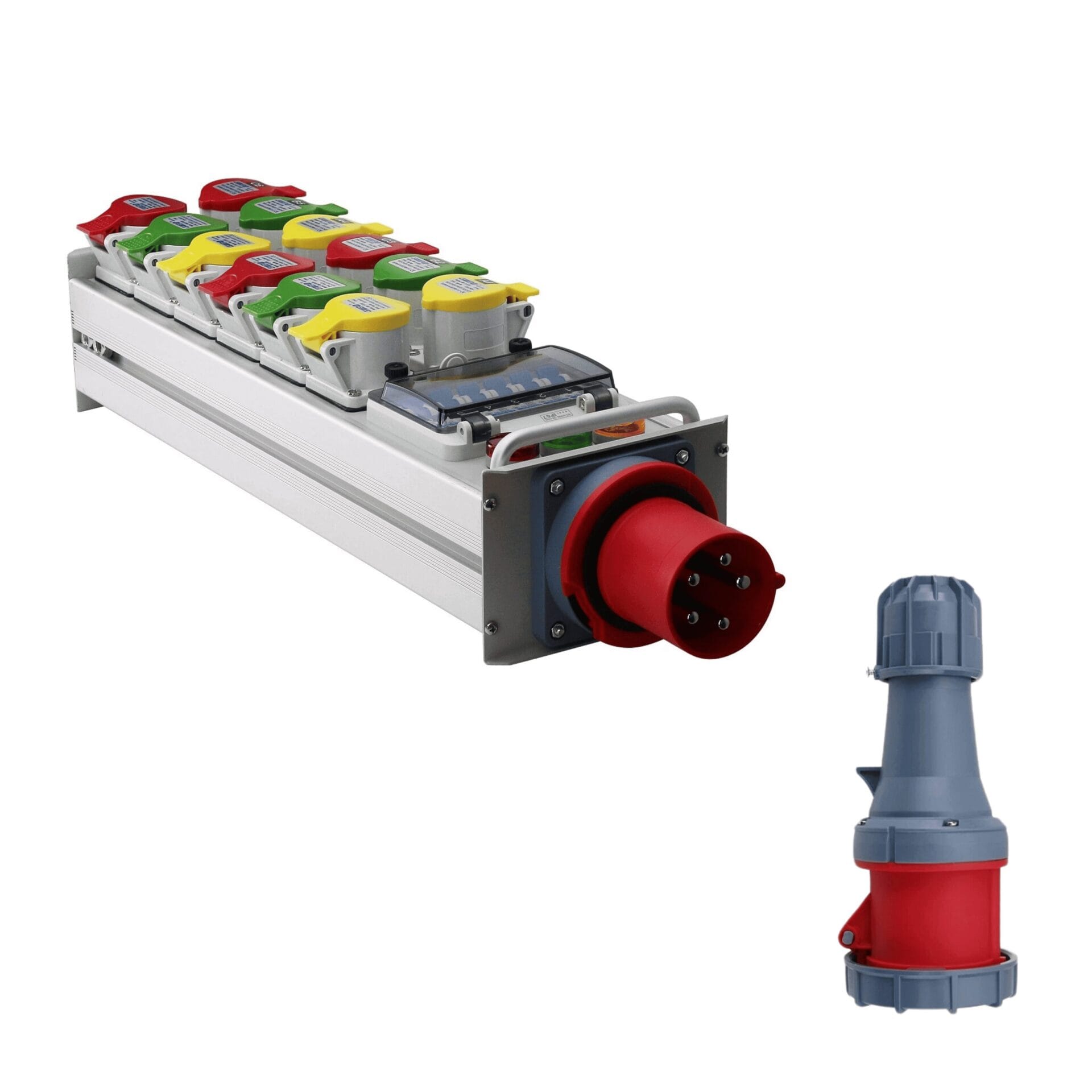

This unit uses a 63A 5-pin, three-phase, five-wire industrial input to receive the incoming event supply before distributing power through 12 separate outputs.

The manufacturer specifies a 35kW total power capacity, giving production teams a practical distribution point for temporary stage and display systems.

For event contractors, this centralised arrangement can make cabling easier to organise because several equipment groups can be supplied from one distribution box rather than running every circuit back to the main electrical source.

12 Independent 16A Industrial Outputs

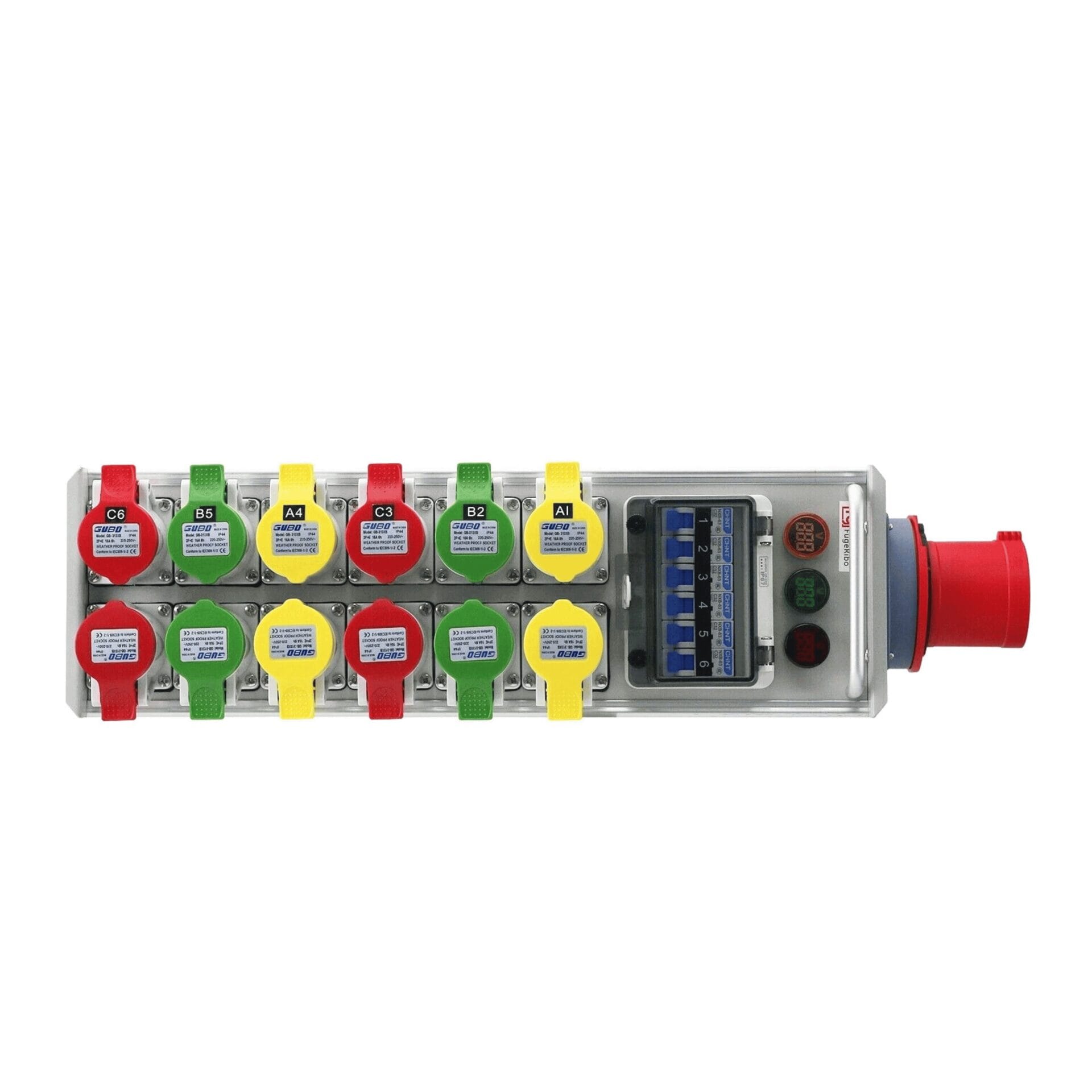

The front panel provides 12 × 16A 3-pin industrial output connections.

This allows different equipment groups to be separated across multiple feeds, such as:

• Moving head lights

• LED PAR fixtures

• Stage wash lights

• Beam fixtures

• LED screen sections

• Video processors

• Stage-effects equipment

• Supporting AV equipment

Using multiple outputs also makes cable management cleaner across a stage, truss or LED-screen structure.

The twelve outputs should not be interpreted as twelve circuits that can all be loaded to 16A simultaneously without considering the incoming supply. The 63A input and stated 35kW system limit remain the controlling overall capacity.

35KW Stated Total Power Capacity

The distribution box is specified for a total output capacity of approximately 35kW.

That capacity makes it suitable for demanding temporary installations where multiple lighting or display devices need to operate at the same time.

The supplier also positions this unit for large LED-screen installations and states that the platform can support screen systems up to approximately 40m² under suitable power requirements.

Actual LED-screen power demand varies substantially with:

• Panel model

• Pixel pitch

• Screen brightness

• Power-supply efficiency

• Display content

• Panel quantity

For that reason, screen size alone should never be used to determine electrical loading. Calculate the connected equipment's actual maximum current before assigning circuits.

12MM² Input Bus and 4MM² Output Wiring

The documented electrical configuration uses a 12mm² input bus connection from the 63A industrial supply.

Each output section uses 4mm² wiring to connect the branch distribution to its 16A industrial output.

These conductor sizes are part of the professional distribution design and distinguish the box from lightweight domestic multi-socket extensions that are not intended for stage-production loads.

Cable size alone does not determine the safe capacity of the complete installation. Connector ratings, protection devices, cable length, supply conditions and the connected load must all be considered together.

Three-Phase Voltage Monitoring

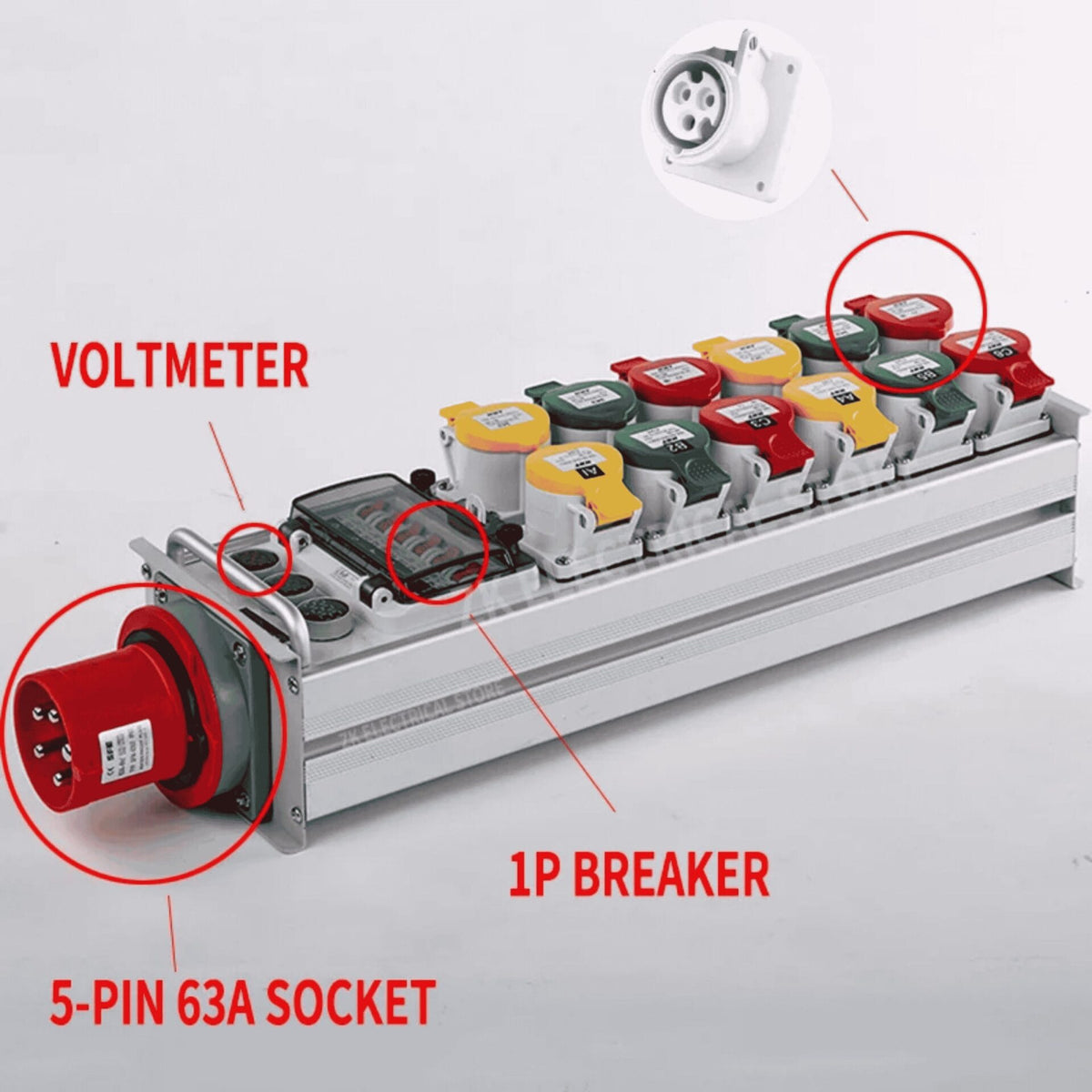

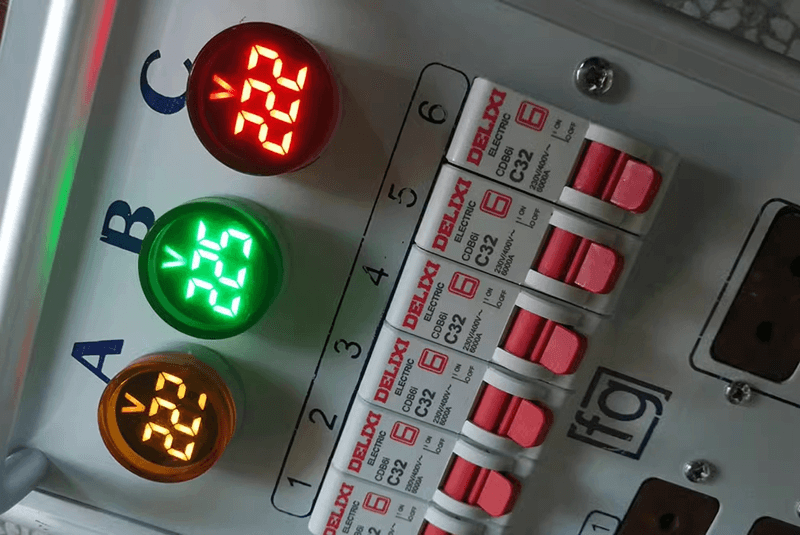

An integrated three-phase voltage display gives technicians a direct way to observe the incoming electrical supply at the distribution point.

Voltage monitoring is particularly useful during temporary productions because power conditions can change when generators, temporary mains connections or multiple high-current systems are involved.

For event technicians, visible phase information can help identify abnormal supply conditions before sensitive lighting or LED-screen equipment is placed under continuous load.

The display is a monitoring aid rather than a replacement for proper electrical testing equipment or qualified electrical supervision.

DELIXI 32A Air Switch Protection

The unit incorporates a DELIXI 32A air switch as part of its electrical protection system.

A circuit-protection device can disconnect the relevant circuit when operating conditions exceed its designed limits.

This adds an important protection layer to temporary event-power distribution, but safe operation still depends on correct:

• Supply sizing

• Cable selection

• Load calculation

• Earthing

• Phase allocation

• Connector condition

The protection device should never be bypassed or replaced with an incorrectly rated component.

Aluminium Housing for Production Environments

The electrical components are enclosed in a thickened aluminium-alloy housing.

Aluminium provides a practical combination of mechanical protection, corrosion resistance and heat dissipation while keeping the complete unit relatively manageable for portable event use.

The distribution box weighs approximately 6.5 kg and measures 550 × 220 × 160 mm.

That compact format is useful for production companies that regularly transport electrical equipment between warehouses, ballrooms, exhibition halls and temporary stage sites.

Truss-Mount Compatible Design

The enclosure includes adjustable screw holes for lighting hooks, allowing it to be positioned on a compatible truss system where the installation has been properly planned.

Mounting the distro closer to the lighting rig can reduce unnecessarily long individual power runs between the distribution point and fixtures.

This can be useful for:

• Overhead lighting grids

• Ground-support truss

• Stage side truss

• LED screen support systems

• Exhibition structures

Any overhead installation must use appropriately rated mounting hardware and secondary retention where required.

Power cables should be supported independently so their weight does not place excessive strain on the connectors or enclosure.

Built for Stage Lighting Power Distribution

A professional lighting rig can contain many fixtures with different power requirements.

Twelve output channels make it possible to organise equipment into logical groups rather than supplying an entire rig from one branch connection.

For example, a production electrician may separate:

• Stage-left moving heads

• Stage-right moving heads

• Back-truss fixtures

• Front lighting

• LED effects

• Additional production equipment

The exact circuit assignment should be calculated according to equipment current draw and the available three-phase supply.

This makes the box particularly useful for rental companies and production crews that rebuild different lighting systems for each event.

Practical Power Distribution for LED Screens

Large LED displays contain many individual power supplies distributed across multiple cabinets.

A multi-output distribution system lets technicians divide those cabinets or screen sections across separate feeds rather than depending on a single downstream connection.

The 12 × 16A output configuration gives LED technicians several branch connections from one 63A incoming source.

Loads should be distributed appropriately across the available supply, with particular attention to phase balancing and manufacturer-rated current requirements.

Never estimate LED-screen consumption only from physical screen dimensions.

Best For

The 12 Way Power Distribution Box 63A is suited to:

• Concert stage lighting

• LED video-wall installations

• Wedding and hotel ballroom productions

• Corporate events

• Exhibitions and trade shows

• Theatre lighting systems

• Touring productions

• Festival stages

• AV production companies

• Lighting rental businesses

• LED screen rental companies

• Temporary professional power systems

What's Included & Compatibility

The documented system consists of:

• 1 × 12-way power distribution box

• 1 × 63A main industrial plug

• 12 × compatible output plugs

Designed for professional systems using:

• 63A 5-pin three-phase incoming power

• 16A 3-pin industrial connections

• Stage lighting systems

• LED display systems

• Professional event power cabling

• Compatible truss mounting hardware

Cables, adapters, mounting clamps and other accessories should only be listed as included where confirmed with the actual Stagify package.

What Does a 12 Way Power Distribution Box Do?

A 12-way power distribution box takes one higher-capacity incoming electrical supply and distributes it across multiple smaller output connections.

This model accepts a 63A three-phase industrial input and provides twelve 16A industrial outputs for professional event equipment.

How Much Power Can the 63A Distribution Box Handle?

The manufacturer specifies a 35kW total power capacity for this configuration.

Actual connected load must remain within the rated limits of the incoming supply, distribution box, connectors, cables and protection devices.

Does It Have Three-Phase Power?

Yes. The main connection is a 63A 5-pin, three-phase, five-wire industrial input.

The box also includes a three-phase voltage display for supply monitoring.

How Many Outputs Does the Power Box Have?

There are 12 industrial output channels, each using a 16A 3-pin connection.

These outputs allow stage or screen equipment to be separated into multiple branch feeds.

Can I Run All 12 Outputs at 16A at the Same Time?

You should not calculate the system that way.

Although there are twelve 16A output connectors, the total connected load must remain within the 63A incoming supply and the manufacturer's stated 35kW overall capacity.

Three-phase load allocation should be planned by a qualified electrical technician.

Can This Power Distribution Box Be Used for LED Screens?

Yes. The manufacturer specifically positions the unit for large LED display installations as well as stage-lighting systems.

The required capacity should be calculated from the actual maximum current or power consumption of the selected LED panels rather than screen area alone.

Can the Distribution Box Be Mounted on Truss?

Yes. The enclosure includes adjustable mounting holes intended for lighting hooks, allowing compatible truss installation.

When mounted overhead, use properly rated hardware and secure the distribution unit and associated cables according to professional rigging practice.

Is This Suitable for UAE Event Power?

The 63A five-pin configuration is designed for professional three-phase event-power systems, but the exact input voltage marking and wiring configuration on Stagify stock must be verified before connection.

Temporary three-phase power should be installed and tested by qualified electrical personnel familiar with UAE event-power requirements.

Electrical Safety & Installation Requirements

This is high-current three-phase electrical distribution equipment and should only be connected, configured and tested by qualified personnel.

Before energising the system, verify:

• Incoming voltage and frequency

• Phase sequence where applicable

• Protective earth continuity

• Cable conductor size

• Connector condition

• Circuit protection

• Total connected load

• Phase loading

• Truss mounting security where used

Do not exceed the manufacturer's 63A input or 35kW stated overall capacity.

The twelve outputs must be treated as part of one complete distribution system rather than twelve unrelated 16A supplies.

Do not bypass protective devices, modify internal wiring or use damaged industrial connectors.

If the box is used in a temporary event installation, the incoming supply and final distribution arrangement should be checked by a qualified electrician before stage lighting, LED screens or AV equipment are energised.

Professional Stage Power Distribution in the UAE

Stagify supplies professional stage-lighting control, power distribution and event-production equipment across Dubai and the UAE for production companies, AV installers, venues, LED-screen contractors and rental businesses.

This 63A distribution platform is particularly useful when a production needs one three-phase input, twelve industrial outputs and central voltage monitoring in a compact unit suitable for stage and exhibition workflows.

Contact Stagify for project quantities and help matching power distribution equipment with your lighting, LED-screen or event-production setup.
