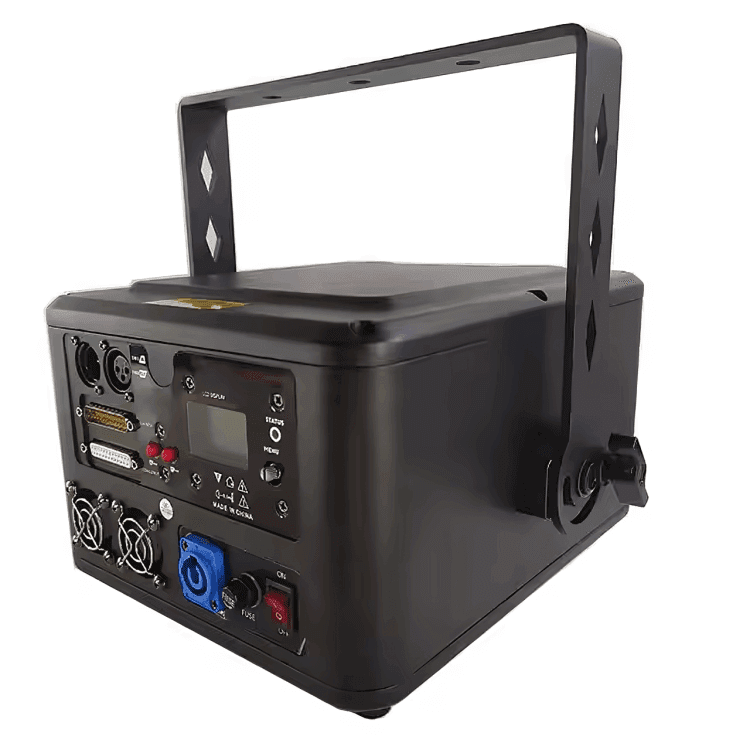

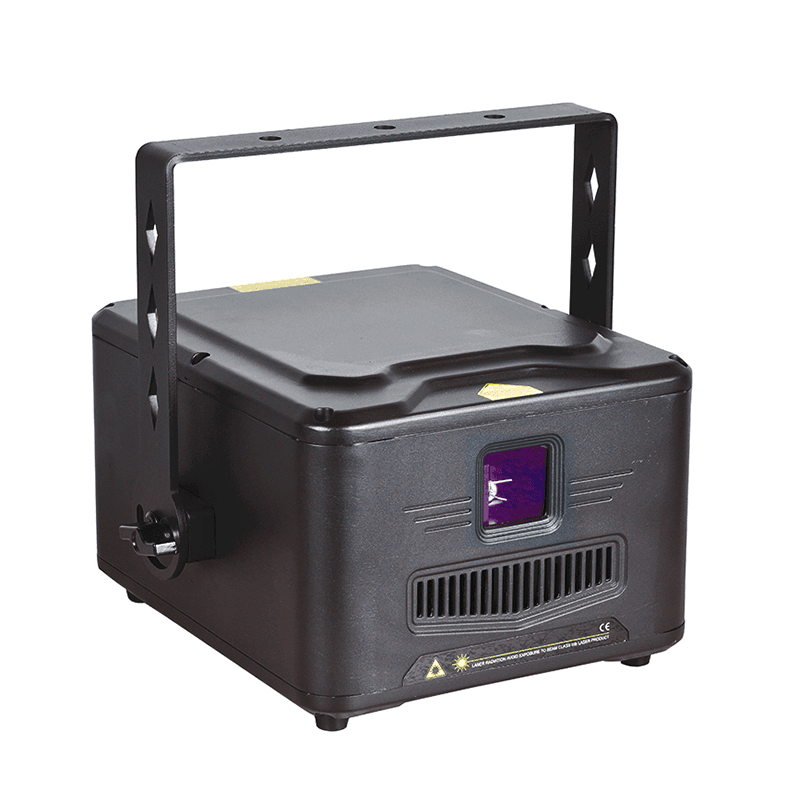

10W Animation Laser Stage Light

10W Animation Laser Stage Light – DJ, Party & Event Lighting

The 10W Animation Laser Stage Light is a high-output RGB animation projector designed for clubs, event halls, DJ productions, live stages and laser-show installations that require more than simple beam effects. Its optical system combines 3W green at 520nm, 3W red at 638nm and 4W blue at 445nm, producing a documented 10W total RGB laser output capable of creating full-colour animated patterns and scanned effects.

A 30KPPS high-speed scanning system, 21CH/40CH DMX control, TTL modulation, Voice, Automatic and Master/Slave modes, plus more than 2000 listed programme effects give operators a substantial amount of control for entertainment installations and programmed stage shows.

Technical Specifications

Specification	Details
Product Type	RGB Animation Laser Stage Light
Total Optical Laser Output	10W
Green Laser	3W @ 520nm
Red Laser	3W @ 638nm
Blue Laser	4W @ 445nm
Laser Technology	DPSS / RGB laser system
Scanning System	30KPPS high-speed scanning
Laser Modulation	TTL
DMX Modes	21CH General / 40CH Professional
Control Protocol	DMX512
Operating Modes	Voice / Auto / DMX512 / Master-Slave
Control Interface	Three-core DMX512 interface
Built-In Effects	2000+ supplier-listed programme effects
Display	HD LCD display
Electrical Consumption	≤120W
Input Voltage	AC100–240V
Frequency	50–60Hz
Operating Temperature	-10°C to 40°C
Product Dimensions	320 × 300 × 170 mm
Net Weight	6.6 kg
Inner Carton Size	370 × 350 × 330 mm
Gross Weight	7.2 kg
Outer Carton	2 units per carton
Outer Carton Size	725 × 390 × 355 mm
Outer Carton Gross Weight	15.5 kg
Recommended Applications	Clubs, stages, event halls, DJ productions and controlled laser-show environments

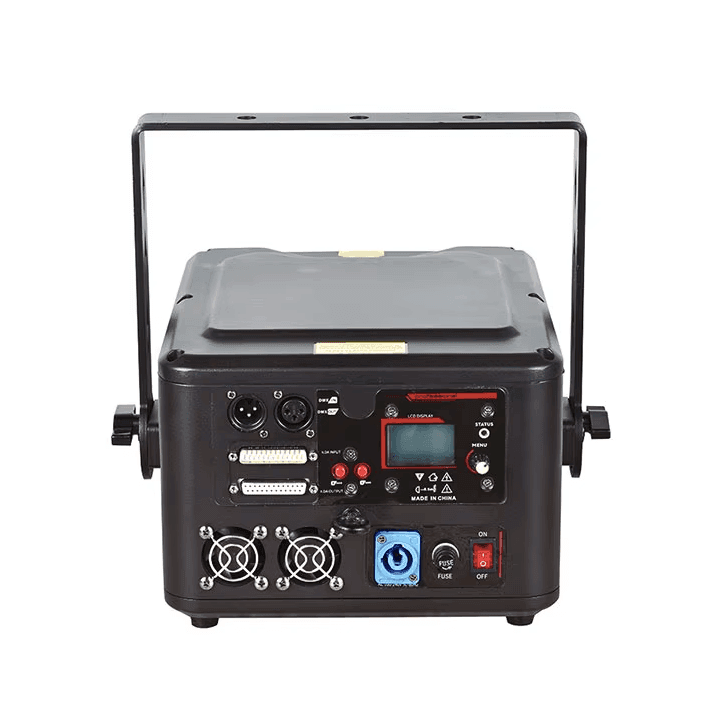

Genuine 10W Combined RGB Laser Output

Unlike products where the title wattage and individual laser-module specifications do not agree, this fixture's published RGB components add correctly to 10W:

• 3W Green

• 3W Red

• 4W Blue

Together:

3W + 3W + 4W = 10W nominal optical output

This is separate from the fixture's electrical consumption of up to 120W.

For Stagify, these figures should be kept clearly separated.

10W refers to the combined listed RGB laser output.

≤120W refers to the complete fixture's mains electrical consumption.

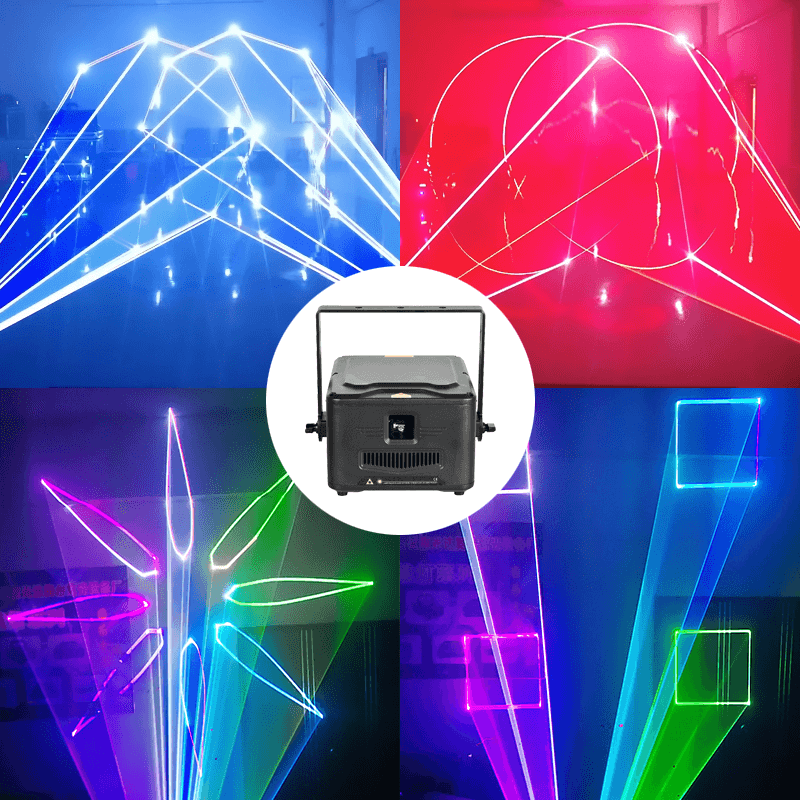

Full-Colour RGB Animation

The three laser wavelengths provide the basis for full-colour animation effects.

The confirmed sources are:

Green: 520nm
Red: 638nm
Blue: 445nm

Different combinations of these sources can produce a wider range of visual colours than a red/green-only party laser.

This makes the fixture more suitable for:

• Animated graphics

• Geometric patterns

• Full-colour effects

• Music-driven sequences

• Stage-show programming

than simple low-power beam projectors.

4W Blue Laser Source

The blue channel is the highest-powered individual source at:

4W / 445nm

The red and green channels are each specified at 3W.

This 3W / 3W / 4W balance is also independently documented on matching 10W animation-laser hardware, providing a strong cross-check for the platform.

638nm Red Output

The red channel operates at:

638nm

This is a useful technical distinction.

Different red laser wavelengths can vary substantially in perceived brightness at the same nominal power.

For this exact product, Stagify should publish the confirmed 638nm figure rather than using generic 650nm wording commonly seen on lower-cost red lasers.

520nm Green Output

The green source is specified at:

520nm / 3W

Again, use this documented wavelength instead of copying 532nm from older DPSS green-laser systems.

445nm Blue Output

The blue source is listed as:

445nm / 4W

This gives the animation engine its blue component for RGB colour mixing.

The three exact wavelength figures are strong enough to include in the technical table because they are explicitly published by the exact supplier.

30KPPS High-Speed Scanner

The fixture uses a documented:

30KPPS high-speed scanning system

KPPS means kilo points per second and relates to how quickly the scanner can position the laser beam while drawing patterns.

A faster animation scanner can produce smoother geometric and animated effects than a basic slow-scanning party laser.

The 30KPPS specification is particularly relevant for:

• Graphics

• Geometric animation

• Moving patterns

• Complex laser effects

Why Scanner Speed Matters

An animation laser does not project a complete image all at once.

Instead, its scanning system rapidly redirects the beam to draw the pattern.

The scanner therefore has a major influence on:

• Pattern smoothness

• Animation quality

• Line stability

• Complex-effect performance

This is one reason the 10W model should be positioned as an animation laser projector, not simply a high-power static beam unit.

Animation Laser vs Basic Beam Laser

The difference is important for customers.

A basic beam-effect laser may primarily create:

• Dots

• Lines

• Fans

• Simple moving beams

An animation laser adds a scanning system designed to create more complex visual structures.

This 10W model specifically supports effects such as:

• Rotation

• Movement

• Rolling

• Segmented patterns

• Gradual drawing

• Colour changes

• Pattern-size adjustment

• Strobe-style effects

according to the exact supplier specification.

More Than 2000 Listed Programme Effects

The supplier lists:

2000+ programme effects

through the built-in system.

This provides a large preset library for standalone and programmed operation.

The available effects can reduce the need to create every show element from scratch.

Typical uses can include:

• Clubs

• DJs

• Stage events

• Banquet halls

• Entertainment venues

The exact individual programme list is not published, so Stagify should avoid promising particular logos, text files or named animations.

HD LCD Display

The exact supplier also confirms an:

HD liquid crystal display

The display provides the operator with a visual interface for configuring the fixture.

This can make setup easier for:

• DMX addressing

• Automatic programmes

• Sound operation

• Master/Slave configuration

• Effect selection

The exact menu hierarchy should be taken from the physical manual.

21CH General DMX Mode

The fixture provides a:

21-channel General Mode

This gives operators a lower-channel option when universe space matters.

A 21CH mode can be useful when several lasers are installed alongside:

• Moving heads

• PAR lights

• Strobes

• Pixel fixtures

within one DMX system.

40CH Professional DMX Mode

A more detailed:

40-channel Professional Mode

is also confirmed.

The higher channel count is suitable where the operator wants greater access to the fixture's available animation and effect controls.

This gives the product a meaningful advantage over simple low-channel party lasers.

DMX512 Animation Control

The exact supplier confirms DMX effects including:

• Single-pattern control

• Broken-pen / blanking-style effect

• Strobe

• Rotation

• Movement

• Roll

• Sub-pattern effects

• Gradient drawing

• Colour change

• Pattern-size control

This shows that DMX is intended to provide more than simple on/off operation.

The exact 21CH and 40CH maps should still be taken from the manual rather than invented for the product page.

TTL Laser Modulation

The laser system uses:

TTL modulation

TTL modulation switches individual laser channels digitally.

This is different from analogue modulation.

Stagify should therefore not market the fixture as:

• Analogue RGB modulation

• 0–5V analogue laser colour control

unless a different physical version proves otherwise.

The exact supplier clearly lists TTL.

TTL vs Analogue Modulation

TTL modulation is well suited to:

• Strong colour switching

• Pattern effects

• Animation

• On/off colour combinations

Analogue modulation can provide more continuously variable intensity levels for each laser colour, but that capability is not documented here.

For this SKU, keep the specification accurate:

TTL modulation

Voice / Sound-Activated Mode

The supplier lists:

Voice

as a control method.

For customer-facing copy, this can be described as:

Sound-Activated Mode

This allows the laser to trigger built-in effects according to surrounding music.

It is useful for:

• DJs

• Clubs

• Dance floors

• Entertainment venues

where fully programmed DMX control is not always required.

Automatic Operation

Automatic Mode is also confirmed.

The fixture can run built-in effects without a DMX controller.

This can be useful for venues wanting an ongoing animation show without assigning a lighting operator to every cue.

Master/Slave Operation

Master/Slave Mode allows matching compatible fixtures to run together.

Possible applications include:

• Two lasers across rear stage

• Multiple units in a club

• Symmetrical laser installations

• Larger entertainment rigs

For more detailed individually addressed control, DMX512 should be used.

Exact Supplier Does Not Confirm ILDA

This is an important publishing decision.

An independently matching 10W animation-laser platform with virtually identical:

• RGB powers

• Wavelengths

• Scanner speed

• Dimensions

• Weight

• DMX modes

includes an ILDA DB25 interface.

However, the exact TOP PRO page only lists:

Three-core DMX512 interface

and does not mention ILDA.

Therefore, Stagify should not advertise ILDA control for this exact unit until the rear panel is physically checked.

Why ILDA Should Not Be Assumed

Animation lasers are often sold in multiple hardware versions.

One version may support:

• DMX

• ILDA

• Auto

• Sound

while another may support only:

• DMX

• Auto

• Sound

The cases can look nearly identical.

Because ILDA is an important purchasing feature, it should never be added based solely on a matching OEM product.

Custom Logos and Text Require Verification

For the same reason, Stagify should avoid automatically promising:

• Custom logos

• Computer-controlled text

• Pangolin compatibility

• Beyond compatibility

• QuickShow compatibility

without confirming the exact external-control interface.

The built-in animation library itself is confirmed.

External custom graphics require separate verification.

Three-Layer Internal Design

The supplier describes a three-layer enclosure architecture.

The first layer is designed around the optical area and is described as sealed to reduce contamination from:

• Smoke

• Dust

• Venue haze residue

This is particularly relevant to laser projectors because optical contamination can reduce projection quality over time.

Dedicated Heat-Dissipation Layer

The second section combines the laser source with an integrated heat sink.

This is intended to improve thermal transfer away from the laser modules.

Heat management is important because high-output laser diodes generate significant thermal load during extended operation.

Enclosed Driver and Power-Supply Section

The supplier describes the third layer as containing:

• Driver electronics

• Power supply

inside a separate enclosed section.

This compartmentalised design is intended to separate the optical, thermal and electrical systems.

It is one of the more distinctive construction features of this 10W animation model.

Keep Optics Clean

Even with a sealed optical architecture, laser equipment should be maintained carefully.

Recommended practices include:

• Keep exterior lenses clean.

• Avoid touching optical surfaces.

• Keep vents free of dust.

• Inspect fans and ventilation.

• Do not open sealed optical sections unnecessarily.

• Allow the fixture to cool before transport.

Laser optical servicing should be performed by competent personnel.

Operating Temperature

The supplier specifies:

-10°C to 40°C

for environmental operating temperature.

For UAE installations, the 40°C upper listed operating temperature is particularly important.

Indoor venues are normally air-conditioned, but temporary stages, warehouses and unconditioned spaces can exceed this temperature.

Do not assume that a 40°C operating specification makes the fixture suitable for exposed UAE summer outdoor use.

Indoor Positioning Is the Safer Approach

The exact supplier does not publish an IP rating.

Therefore, Stagify should position this product for:

Dry indoor or properly protected controlled environments

rather than advertising it as a waterproof outdoor laser.

Do not claim:

• IP54

• IP65

• Waterproof

• Rainproof

based on another 10W laser projector.

AC100–240V Wide-Voltage Input

The fixture operates from:

AC100–240V / 50–60Hz

This covers normal UAE:

220–240V / 50Hz

mains supply.

Therefore, the published electrical input supports UAE operation.

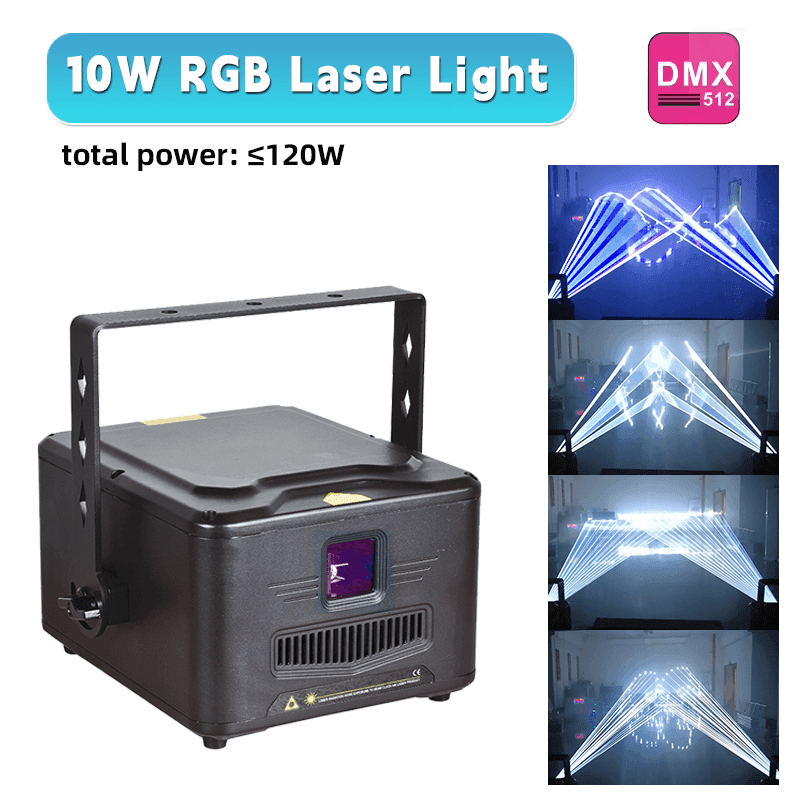

≤120W Complete Fixture Consumption

The exact supplier lists:

Total Power: ≤120W

This should be used for electrical planning.

It includes more than the 10W optical output because the complete fixture must power:

• Laser drivers

• Scanner motors

• Cooling

• Display

• Processing electronics

• Internal power supply

Optical Power vs Electrical Power

These values should never be confused.

10W: optical RGB laser output

≤120W: electrical mains consumption

A 10W laser projector does not consume only 10W from the wall.

UAE Plug Type Is Not Confirmed

Although voltage compatibility is confirmed, the actual supplied mains plug is not specified.

Do not claim:

UAE/UK Type G plug included

until current Stagify inventory is inspected.

320 × 300 × 170 mm Body

The exact fixture dimensions are:

320 × 300 × 170 mm

or:

32 × 30 × 17 cm

This makes the projector relatively compact considering its 10W RGB optical system.

The dimensions are confirmed as actual product size rather than carton dimensions.

6.6 kg Net Weight

The exact supplier publishes:

6.6 kg product weight

This provides useful information for:

• Truss planning

• Transport

• Flight-case selection

• Installation

• Rental inventory management

For overhead mounting, rigging hardware must be selected with suitable rated capacity.

7.2 kg Gross Packed Weight

The inner carton gross weight is:

7.2 kg

with an inner carton measuring:

37 × 35 × 33 cm

These values are useful for shipping and storage but should not be confused with the 6.6 kg fixture weight.

Two Units Per Outer Carton

For bulk inventory, the supplier publishes:

2 units per outer carton

with:

72.5 × 39 × 35.5 cm

outer-carton dimensions and:

15.5 kg

total gross weight.

This information is useful for warehouse and wholesale logistics.

Suitable for Clubs

The supplier specifically lists bars and entertainment venues among intended applications.

A 10W RGB animation laser can create a substantial visual layer in club environments, especially when used with controlled haze.

Possible placement includes:

• Behind the DJ

• Above rear-stage truss

• High-level club rigging

• Dedicated laser positions

Installation must ensure safe beam positioning.

DJ and Electronic Music Applications

Animation lasers work especially well for electronic music because their effects can follow:

• Beat changes

• Build-ups

• Drops

• Transitions

Sound mode provides a simple approach, while DMX gives more predictable cue control.

Banquet Hall and Event Applications

The exact supplier also lists banquet halls.

For larger weddings and corporate entertainment, the laser can provide effects during:

• Entrances

• Dance-floor openings

• Entertainment acts

• DJ sections

• Finales

It is not intended to replace proper white or wash lighting for speeches and photography.

Best For

The 10W Animation Laser Stage Light is particularly suited to:

• Nightclubs

• DJs

• Entertainment venues

• Banquet halls

• Concert stages

• Live events

• Wedding entertainment

• Laser-show installations

• Event-production companies

• Lighting rental businesses

Its clearest catalogue role is a high-output RGB animation projector with 30KPPS scanning and detailed 21/40CH DMX control.

What This Laser Is Not Best For

Consider another fixture where the requirement involves:

• Casual home parties

• Simple low-power decorative effects

• Outdoor rain exposure

• Audience scanning without specialist safety design

• Confirmed analogue modulation

• Confirmed ILDA computer control

• Moving-head pan/tilt operation

This is a high-output animation laser intended for controlled entertainment installations.

10W Animation Laser vs RGB 1W Animation Laser

Stagify also carries the RGB 1W Animation Laser Light.

These products occupy substantially different positions.

Choose the RGB 1W Animation Laser when:

• Compact output is sufficient

• Smaller venues are the main target

• Lower optical power is appropriate

• Portability is a priority

Choose the 10W Animation Laser when:

• 10W combined RGB output is required

• 30KPPS scanning matters

• Large animation effects are required

• 21/40CH DMX control is useful

• Larger entertainment installations are the target

The 10W unit should be viewed as a substantial step up in optical output.

10W Animation Laser vs 15W Full Color Laser

Stagify's 15W Full Color Laser Light has its own unusual specification issue: the published RGB modules total 12W despite the 15W product title.

This 10W animation laser is cleaner in that respect.

Its published sources total exactly:

10W

The two models should therefore be compared using actual verified optical and control specifications rather than relying only on the wattage written in their product titles.

10W Animation Laser vs 3D 10W Moving Head Laser

The 3D 10W Animation Moving Head Laser Light is intended for customers who also need moving-head-style physical movement.

This fixed projector instead focuses on:

• High-speed scanning

• Animation

• DMX pattern control

• Static projector installation

Choose the 3D moving-head laser where physical pan/tilt movement is central.

Choose this projector where animation scanning is the main requirement.

Haze Makes Laser Effects More Visible

A laser beam becomes much more visible through the air when controlled atmospheric haze is present.

Haze can reveal:

• Scanned lines

• Fan effects

• Geometric patterns

• Aerial shapes

Without haze, patterns may be most visible when projected onto walls or scenery.

Venue Haze Requirements

Before using haze:

• Confirm venue approval.

• Check smoke-detector requirements.

• Maintain clear emergency exits.

• Avoid excessive atmospheric density.

• Follow haze-machine operating instructions.

Hotels and banquet halls may apply stricter haze rules than dedicated clubs.

High-Power Laser Safety

This fixture has a documented 10W combined optical laser output.

That is not a low-power consumer laser.

Installation and operation require careful control.

Before use, inspect the physical fixture for:

• Formal laser classification

• Aperture labels

• Safety labels

• Manufacturer warnings

• Wavelength markings

• Interlock or key-switch features, if fitted

• Emergency-stop provisions, if fitted

Do not remove or defeat laser safety systems.

Do Not Promote Direct Audience Scanning

Stagify should not market this 10W animation laser for uncontrolled audience scanning.

Laser beams should be positioned to prevent hazardous direct eye exposure.

Audience scanning requires specialised exposure calculations, suitable safety controls and competent laser-show operation.

A high-output animation projector should be treated accordingly.

Laser Beam Positioning

Installation should consider:

• Audience height

• Balcony levels

• Reflective surfaces

• Mirrors

• Glass

• Venue geometry

• Projector movement area

Reflected laser energy can also present risks.

Operators should not consider only the direct forward beam.

Dubai Laser Display Requirements

Dubai Civil Aviation Authority guidance provides a service for obtaining a No Objection Certificate to conduct laser or pyrotechnic display activities in the Emirate of Dubai.

Event organisers should confirm applicable requirements for the actual:

• Venue

• Location

• Beam direction

• Dates

• Operating schedule

before conducting a public laser display.

Purchasing the equipment does not itself constitute regulatory approval.

Installation and Rigging

For overhead or truss installation:

• Use appropriately rated mounting hardware.

• Use an independent secondary safety attachment.

• Confirm the supporting structure.

• Secure power and DMX cables.

• Maintain ventilation.

• Keep the projector dry.

• Maintain safe beam positioning.

• Protect the optical aperture.

At 6.6 kg, the unit must be rigged with hardware selected for appropriate load and safety factors.

What's Included & Compatibility

Confirmed core product:

• 1 × 10W Animation Laser Stage Light

Compatible system categories include:

• DMX512 lighting controllers

• Compatible DMX infrastructure

• Stage truss

• Rated clamps

• Secondary safety hardware

• Haze machines

• Other stage-lighting fixtures

The exact supplier page does not provide a detailed single-unit accessory packing list.

Do not promise that the following are included without checking stock:

• DMX cable

• Safety cable

• Flight case

• ILDA cable

• Emergency stop

• Remote control

• Specific power lead/plug

Is the Laser Really 10W?

Yes.

The exact supplier specifies:

• 3W Green

• 3W Red

• 4W Blue

which totals:

10W

What Are the Laser Wavelengths?

The exact values are:

• 520nm Green

• 638nm Red

• 445nm Blue

What Is the Scanner Speed?

The exact specification confirms:

30KPPS

high-speed scanning.

Is It RGB?

Yes.

It uses separate red, green and blue laser sources for full-colour effects.

Does It Support DMX512?

Yes.

DMX512 is explicitly confirmed.

How Many DMX Channels Does It Use?

Two modes are confirmed:

• 21CH General Mode

• 40CH Professional Mode

Does It Work Without DMX?

Yes.

The fixture supports:

• Voice / Sound

• Automatic

• Master/Slave

in addition to DMX512.

Does It Have Built-In Patterns?

Yes.

The exact supplier lists:

2000+ programme effects

Does It Have an LCD Screen?

Yes.

An HD LCD display is explicitly documented.

Does It Support ILDA?

ILDA is not confirmed by the exact TOP PRO specification.

A closely matching manufacturer version has an ILDA DB25 interface, but Stagify should check the physical rear panel before advertising ILDA capability.

Can It Display Custom Logos?

Built-in animation effects are confirmed.

Computer-controlled custom logos or text require confirmation of the external animation interface.

Do not promise custom-logo projection solely from the built-in pattern specification.

Is the Modulation Analogue?

No analogue modulation is documented.

The exact specification states:

TTL modulation

What Is the Total Electrical Consumption?

The supplier lists:

≤120W

for the complete fixture.

Does It Work on UAE Voltage?

Yes.

Its AC100–240V / 50–60Hz input range covers standard UAE mains supply.

The supplied wall-plug type remains unconfirmed.

What Is the Operating Temperature?

The published range is:

-10°C to 40°C

What Are the Dimensions?

The exact product size is:

320 × 300 × 170 mm

How Much Does It Weigh?

The exact net/product weight is:

6.6 kg

What Is the Packed Weight?

The inner carton gross weight is:

7.2 kg

Is It Waterproof?

No IP rating is published for the exact supplier model.

Do not advertise it as waterproof or outdoor-rated.

Is It Suitable for Audience Scanning?

Do not market or install it for uncontrolled direct audience scanning.

This is a high-output laser projector and should be installed using appropriate laser-show safety practices.

Contact Stagify for current availability and confirmation of the exact supplied accessories before ordering.
