Professional 108 Led Moving Head Wash Stage Light

Professional 108 LED Moving Head Wash Stage Light

The Professional 108 LED Moving Head Wash Stage Light is a 350W moving wash fixture built with 108 × 3W RGBW LEDs for stages, weddings, concerts, clubs and event productions. It combines 540° pan, 270° tilt, 14-channel DMX control, electronic strobe and multiple operating modes for programmable colour washes and automated lighting movement.

Technical Specifications

The 350W power, 108 × 3W LED array, 14CH operation, 540°/270° movement, 11 kg gross weight and 43 × 34 × 41 cm packing size match the existing product data, while the RGBW configuration, voltage, zoom and 3-pin DMX connection are supported by a closely matching professional 108 × 3W fixture specification.

108 × 3W RGBW LED Wash System

The fixture uses 108 individual 3W LEDs arranged as red, green, blue and white sources. The documented RGBW configuration consists of 30 red, 30 green, 30 blue and 18 white LEDs, allowing the fixture to produce saturated colours as well as cleaner whites and pastel combinations.

For event-production teams, the large LED array is particularly useful when the requirement is to illuminate an area rather than create only a narrow beam. Multiple fixtures can be positioned across a stage or truss to provide balanced colour coverage for performers, backdrops, dance floors and scenic elements.

RGBW colour mixing also gives operators more flexibility than RGB-only fixtures because the dedicated white LEDs can be incorporated into cool whites, pastel tones and mixed-colour scenes.

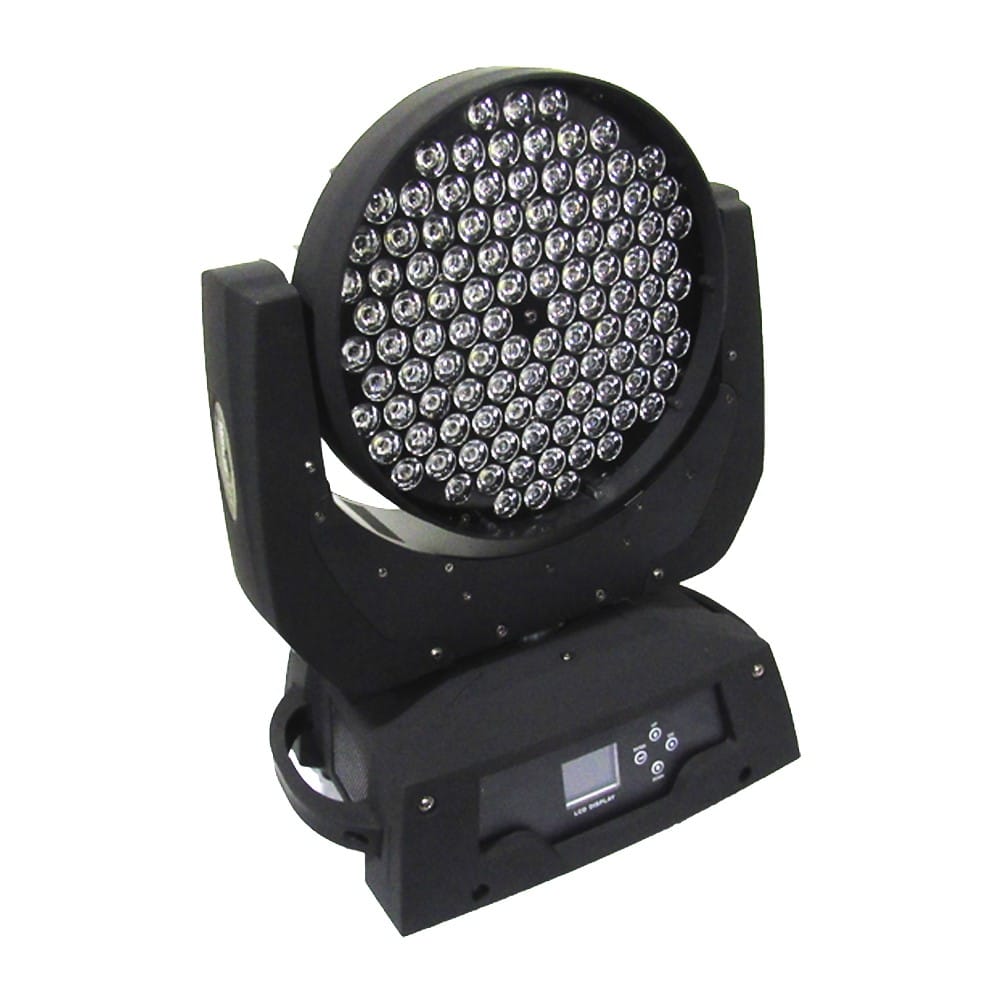

540° Pan and 270° Tilt Movement

The moving-head mechanism provides 540° horizontal pan and 270° vertical tilt, with 16-bit precision movement documented for both axes.

This range allows the fixture to cover different areas of a venue without physically repositioning the unit. A lighting programmer can move the wash from the performance area to a backdrop, audience-facing scenic surface or another part of the stage as a show progresses.

The movement also allows several units to be programmed together for symmetrical sweeps, crossing movements and coordinated scene changes.

15°–45° Zoom for Flexible Wash Coverage

The matching 108 × 3W RGBW fixture configuration provides a 15°–45° zoom range, allowing the light to change between a tighter wash and a wider field.

A narrower setting can concentrate output over a smaller stage area or scenic element, while wider settings are useful for washing larger backdrops, dance floors or performance zones.

This makes the fixture more adaptable when the same inventory is used across different venue sizes and stage configurations.

14-Channel DMX512 Control

The Professional 108 LED Moving Head Wash uses a 14-channel DMX configuration, giving lighting operators access to programmable movement, colour and effect functions from a compatible DMX controller.

DMX control is particularly valuable for:

• Concert lighting sequences

• Wedding stage cues

• Corporate presentations

• Theatre productions

• DJ performances

• Nightclub installations

• Synchronized multi-fixture setups

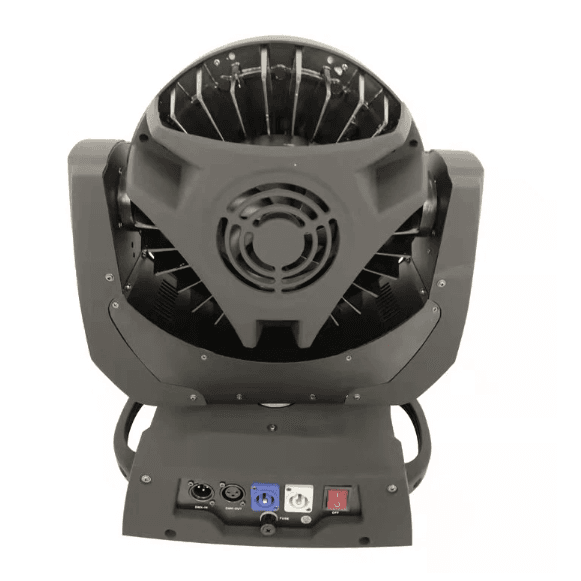

The fixture uses a 3-pin XLR DMX connection on the matching professional configuration.

Multiple Operating Modes

The fixture supports several control options:

• DMX512

• Master-slave

• Automatic operation

• Sound-active operation

DMX mode gives a lighting technician direct control from a console. Master-slave mode allows compatible fixtures to work together, while automatic and sound-active operation provide practical options for simpler DJ, party and entertainment setups where a dedicated lighting operator is not required.

Electronic Strobe Effects

The fixture provides electronic strobe operation at up to 25 flashes per second, including random strobe functionality.

Strobe effects can be incorporated into music drops, concert sequences, DJ performances and high-energy stage moments. Because the effect is electronically controlled, it can be incorporated directly into programmed lighting scenes through the fixture's control system.

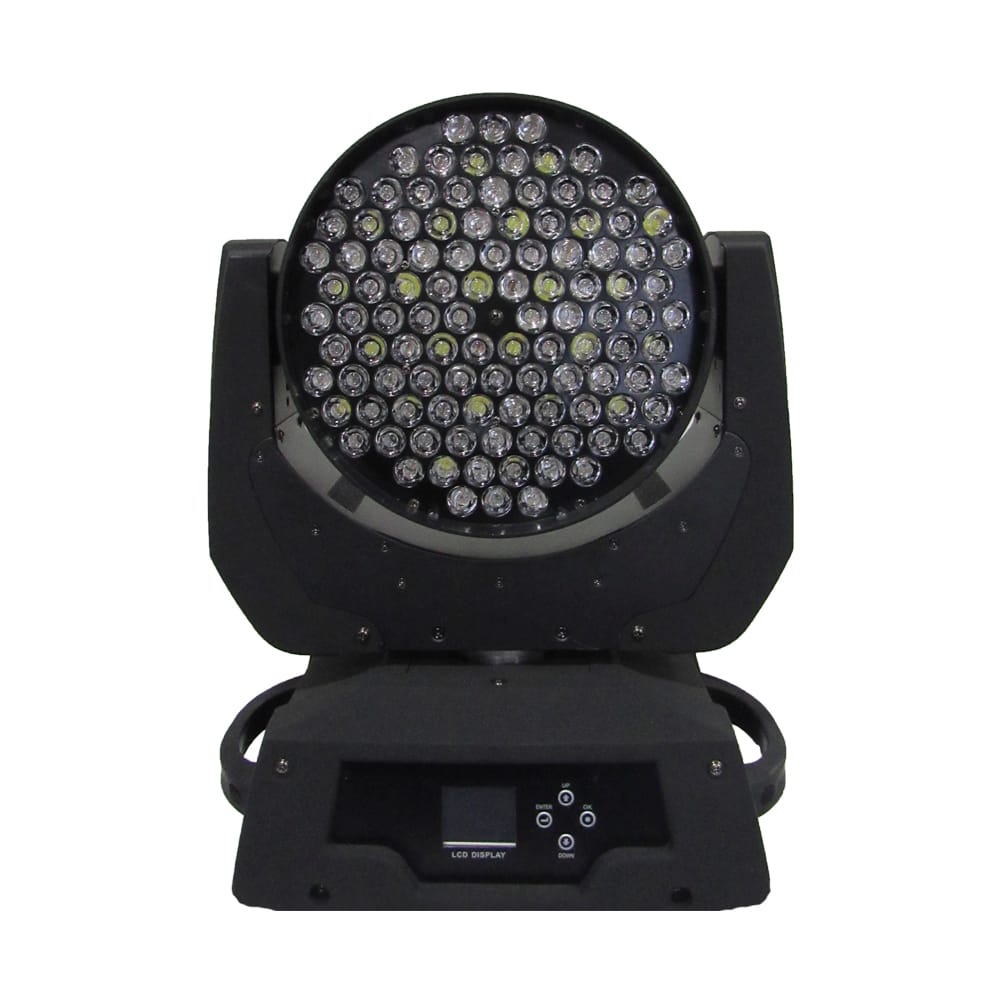

LCD Control Display

An integrated LCD display provides access to fixture settings and operating modes directly from the unit.

This makes addressing and configuring fixtures more convenient during setup, particularly when several moving heads are installed across a truss or stage structure.

Designed for Professional Event Lighting

The combination of a 108-LED wash engine, motorised pan and tilt, zoom, DMX control and RGBW colour mixing makes this fixture suitable for both temporary event productions and fixed entertainment installations.

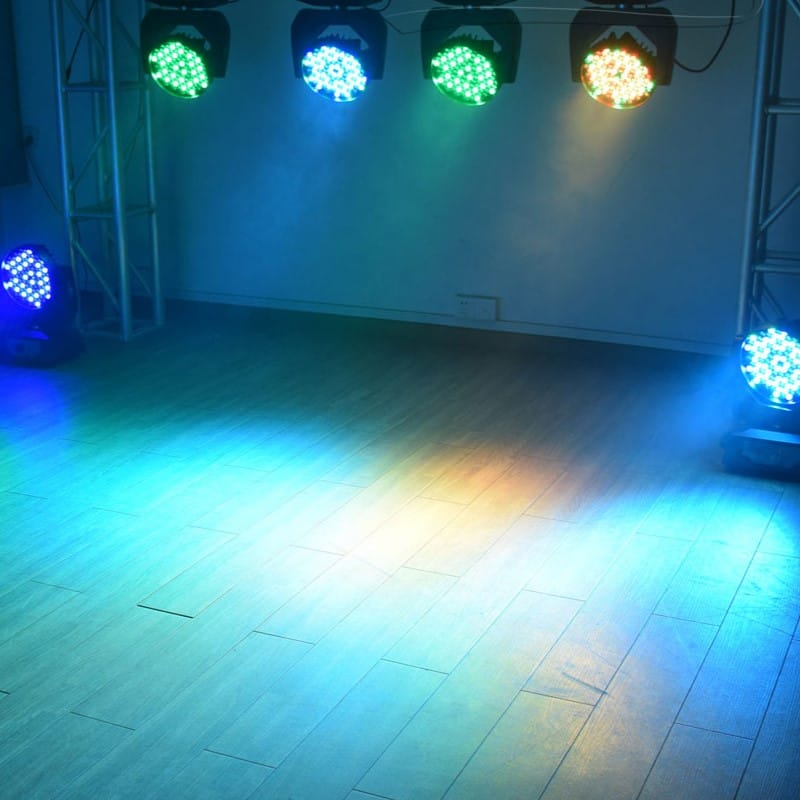

For larger stages, several fixtures can be distributed across front, side or overhead truss positions to create more even coverage and coordinated movement. For smaller venues, one or two units can provide moving colour effects while also functioning as general stage-wash fixtures.

Best For

• Wedding stages and ballroom productions

• Concerts and live performances

• DJ and mobile entertainment setups

• Nightclubs, lounges and bars

• Theatre and performance stages

• Corporate events and presentations

• Exhibition and activation stages

• Event-production companies

• AV rental companies

• Entertainment venues

What's Included & Compatibility

The fixture is designed to integrate with professional stage-lighting systems using:

• DMX512 lighting controllers

• 3-pin DMX cabling

• Lighting truss systems

• Lighting stands with suitable mounting hardware

• Other DMX moving heads

• LED PAR and wash fixtures

• Stage effects and programmed lighting systems

Always use correctly rated clamps and secondary safety attachments when installing a moving-head fixture overhead.

How Many LEDs Does This Moving Head Wash Have?

The fixture uses 108 × 3W LEDs, providing a large multi-LED source for stage and venue wash applications.

The matching professional specification uses an RGBW arrangement of 30 red, 30 green, 30 blue and 18 white LEDs.

What Is the Power of the 108 LED Moving Head Wash?

The fixture has a documented 350W power consumption.

Its LED light engine consists of 108 individual 3W LEDs, allowing the fixture to produce colour washes without using a traditional discharge lamp.

Does It Support DMX512?

Yes. The fixture supports DMX512 with 14 control channels as well as master-slave, automatic and sound-active operating modes.

This allows it to be incorporated into both programmed professional shows and simpler standalone lighting setups.

What Are the Pan and Tilt Angles?

The moving head provides 540° pan and 270° tilt, with 16-bit precision scanning documented for the movement system.

This provides a wide movement range for repositioning the wash across different areas of a stage or venue.

Does the Moving Head Have a Zoom Function?

Yes. The matching 108 × 3W RGBW configuration provides approximately 15°–45° motorised zoom, allowing operators to change the spread of the wash according to the required coverage.

Is It Suitable for Weddings and Stage Events?

Yes. Its moving wash format is suitable for wedding stages, concerts, DJs, corporate events, clubs and other entertainment productions.

For larger venues, multiple fixtures can be distributed across the lighting rig to create more consistent coverage.

What Voltage Does the Light Use?

The matching professional 108 × 3W RGBW configuration operates from AC 90–260V at 50–60Hz, which covers the UAE's nominal 230V mains supply.

The exact supplied plug type should be confirmed before the Stagify product page is published.

Installation & Safety

The fixture should be mounted using appropriately rated professional lighting hardware. For overhead truss installations, use a suitable clamp together with an independent secondary safety attachment.

Ensure adequate ventilation around the fixture and keep moving components clear of obstructions. Power and DMX cabling should be routed so that they do not interfere with pan or tilt movement.

Installation at height should be carried out by personnel experienced with professional stage lighting and rigging.

Professional Moving Head Wash Lights in the UAE

Stagify supplies professional moving head wash lights and stage-lighting equipment across Dubai and the UAE for event-production companies, wedding planners, DJs, venues, AV installers and rental businesses.

Contact Stagify for multi-unit requirements, complete lighting setups and project pricing for stages, venues and event-production installations.
