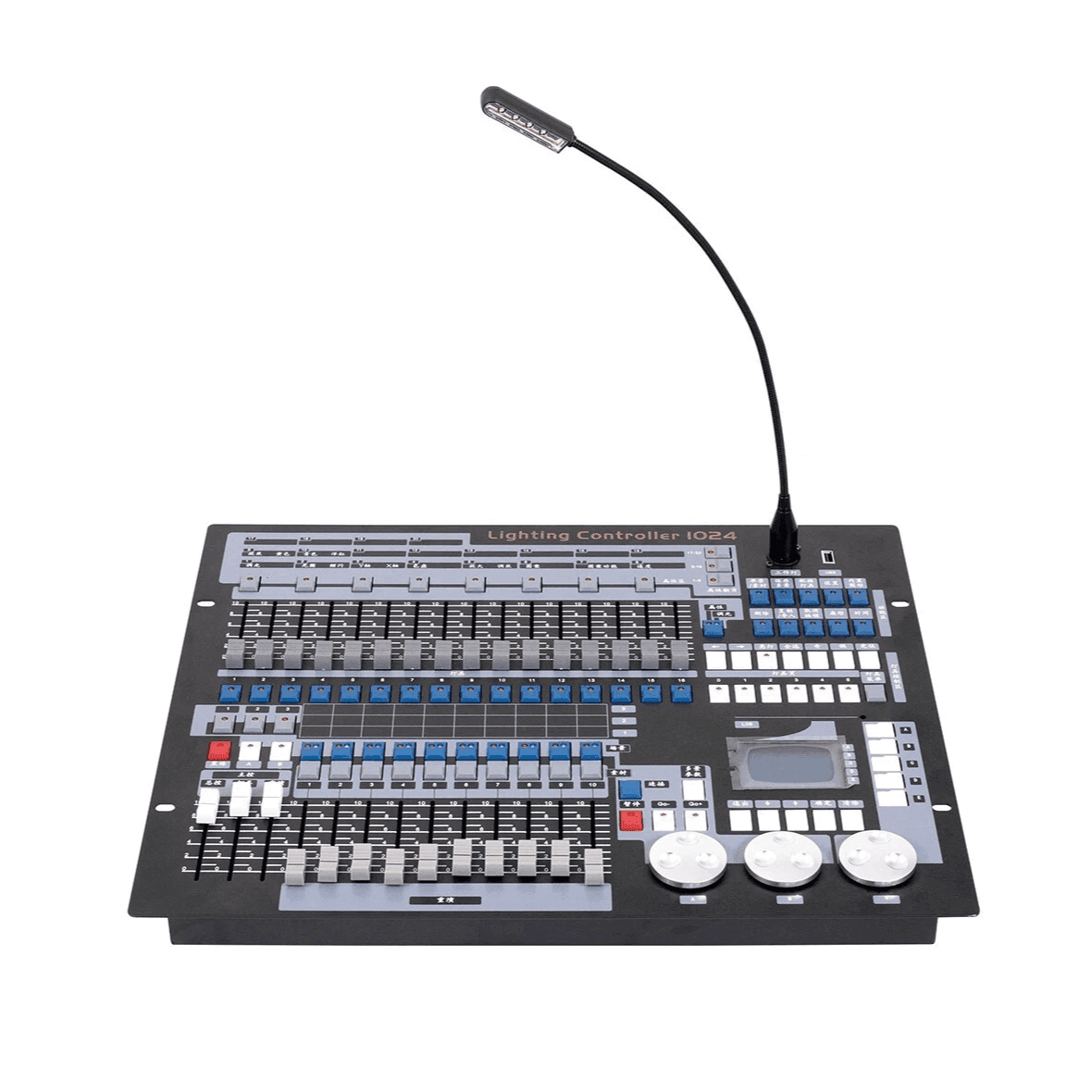

1024 DMX Controller Stage Lighting Console

1024 DMX Controller Stage Lighting Console for Professional Events UAE

The 1024 DMX Controller Stage Lighting Console is designed for professional lighting systems that need more programming capacity than a basic DMX desk. It controls up to 96 compatible fixtures across 1024 DMX channels, with 60 scene memories, 135 built-in effects, Pearl R20 fixture-library support and hands-on fader and wheel control for concerts, weddings, theatres and live productions.

Technical Specifications

1024 DMX Channels for Larger Lighting Systems

A small controller can become restrictive once a production starts adding moving heads, washes, beams, LED fixtures and effect lights with large DMX personalities.

This console provides 1024 DMX control channels, giving lighting programmers significantly more address space for medium and larger rigs.

The additional channel capacity becomes particularly useful when controlling modern fixtures that may require separate channels for:

• Pan and tilt

• Fine movement

• Dimmer

• Strobe

• RGB or CMY colour

• Gobos

• Prism

• Focus

• Zoom

• Pixel or effect functions

Instead of reducing fixture functionality to fit a smaller console, the operator has more room to patch devices using their required control modes.

Control Up to 96 Intelligent Fixtures

The lighting desk can manage up to 96 compatible intelligent fixtures.

This makes it suitable for production systems that combine several fixture types within the same show, such as:

• Beam moving heads

• Wash moving heads

• Spot fixtures

• LED PAR lights

• Stage effects

• Dimmer-controlled lighting

• Compatible DJ lights

Fixture capacity and DMX channel capacity should still be considered together. A complex moving head using many channels consumes more of the available DMX address space than a simple PAR fixture.

Pearl R20 Fixture Library Support

The console supports Pearl R20-format fixture libraries, helping programmers patch compatible stage lights without manually defining every channel each time.

Fixture personalities can contain information for parameters such as:

• Pan

• Tilt

• Colour

• Dimmer

• Gobo

• Focus

• Iris

• Other fixture functions

The controller also supports writing custom fixture libraries, which is useful when a particular moving head or stage effect is not already available in the existing library.

For rental companies working with different lighting brands, fixture-library flexibility can reduce setup time between productions.

135 Built-In Graphic Effects

A built-in graphic generator provides 135 preset effects for faster show programming.

Available effect styles include movement and colour-oriented graphics such as:

• Pan / tilt movements

• Dimmer effects

• RGB effects

• CMY effects

• Colour sequences

• Gobo effects

• Iris effects

• Focus effects

• Spiral-style movements

• Rainbow effects

• Chase sequences

Instead of programming every movement point manually, operators can start with a generated effect and then adjust its parameters.

Adjustable Effect Parameters

The graphic generator allows parameters such as amplitude, speed, interval, waveform and direction to be adjusted independently.

This gives lighting programmers a practical way to turn one basic movement shape into several different looks.

For example, a circular pan-and-tilt effect can be slowed for a wedding ballroom, enlarged for a concert stage or reversed across different fixture groups to create mirrored movement.

This type of parameter control is particularly useful during live programming when a show needs to be built quickly.

Store Up to 60 Lighting Scenes

The console can save up to 60 scenes for repeated playback.

A scene can represent a complete lighting state such as:

• Wedding entrance look

• First-dance lighting

• Corporate presentation scene

• Concert colour look

• Theatre cue

• DJ performance effect

• Stage blackout setup

Up to 10 scenes can run simultaneously, allowing different lighting layers to operate together.

For example, one scene can control the stage wash while another runs movement on beam fixtures and another manages decorative lighting.

Up to 600 Steps for Multi-Step Programming

More complex sequences can be created using multi-step scenes with up to 600 programmable steps.

This allows the console to build longer lighting changes rather than relying only on individual static looks.

Multi-step programming can be useful for:

• Concert sequences

• DJ chases

• Theatre transitions

• Automated venue lighting

• Wedding entertainment segments

• Repeated show programmes

Fade-in, fade-out and LTP timing controls provide additional control over how one programmed state moves into the next.

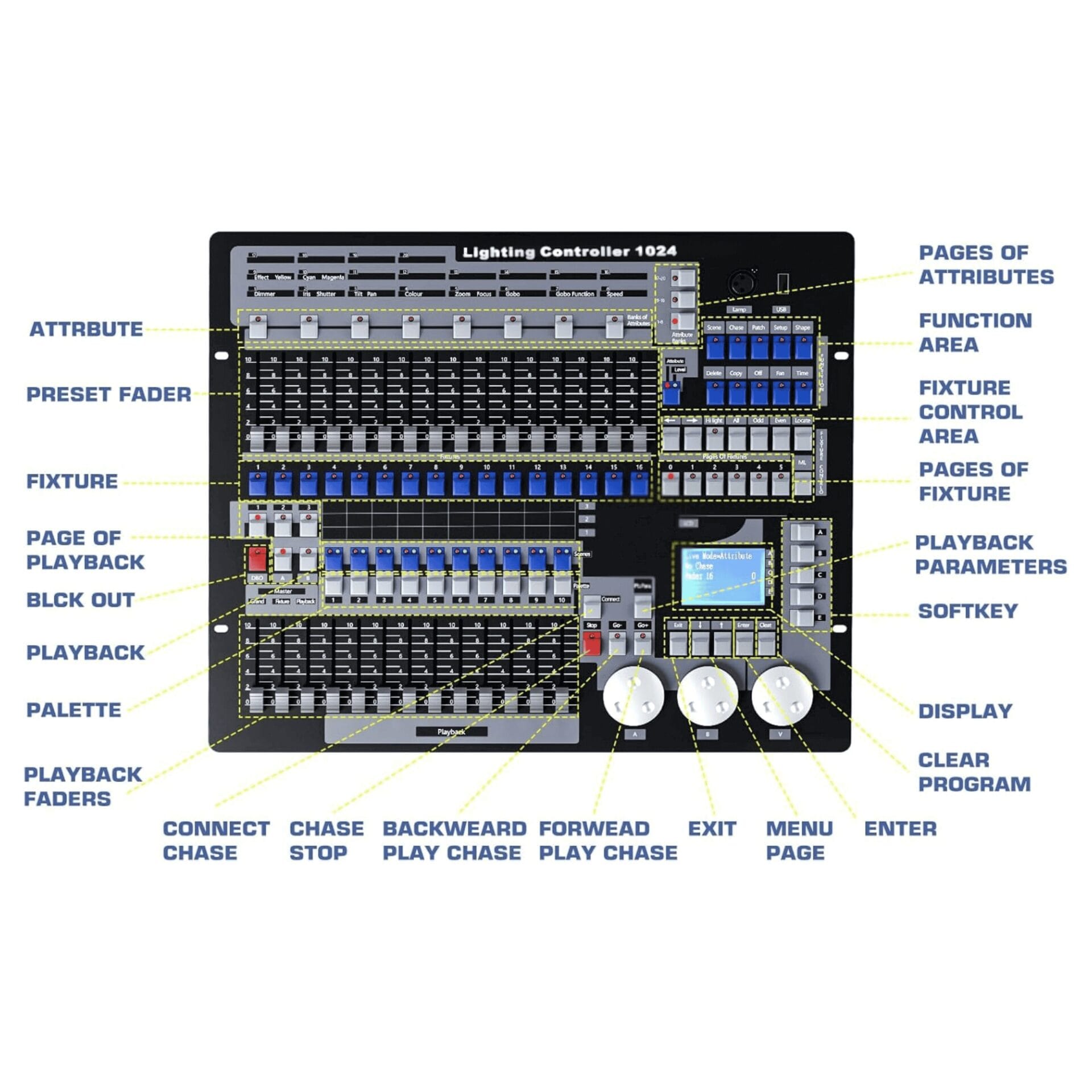

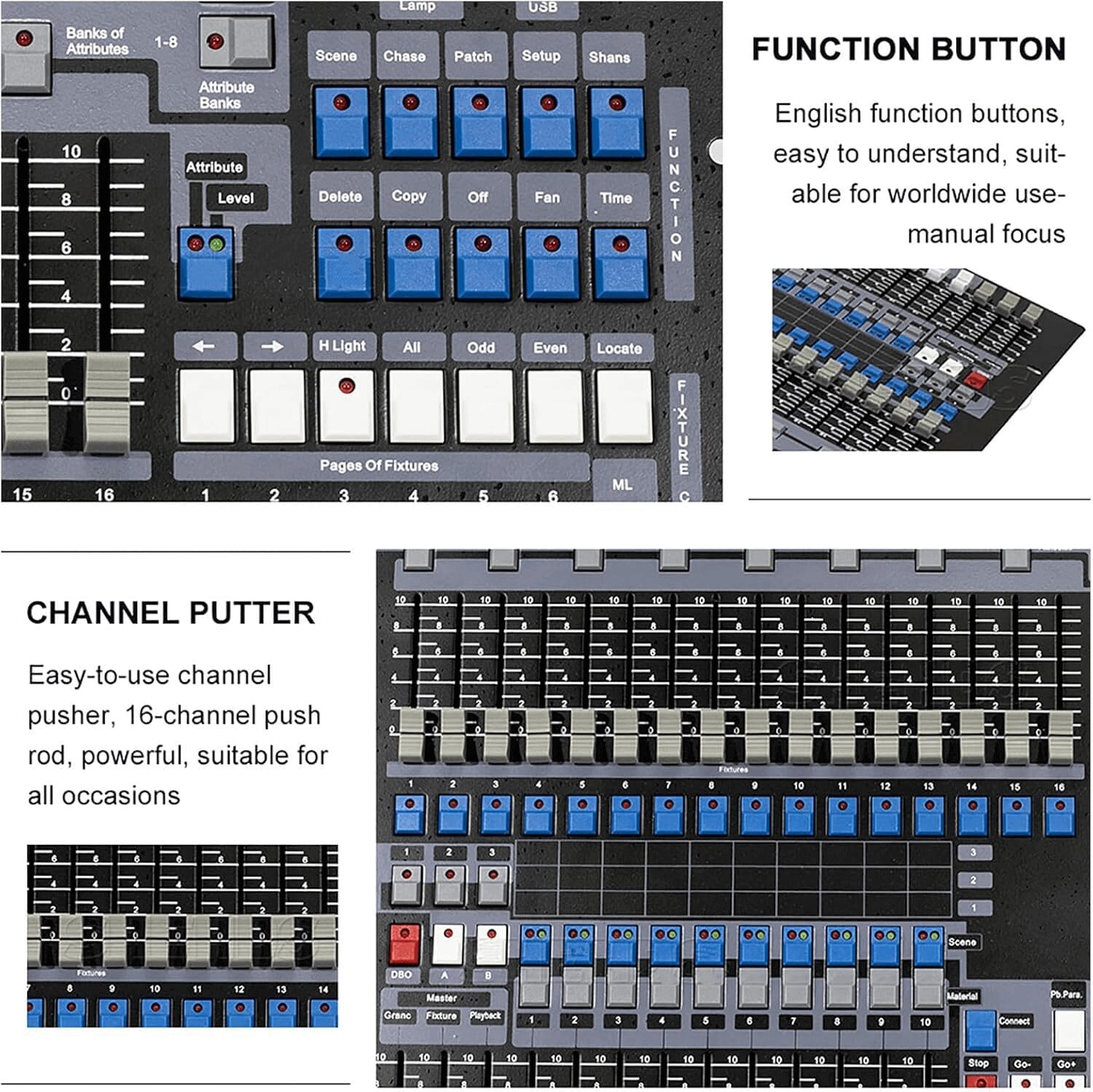

Hands-On Faders and Rotary Controls

Professional live lighting operation depends on being able to make changes quickly.

The console allows channel values to be adjusted using both physical faders and rotary controls, giving operators direct access to fixture parameters while programming or running a show.

Faders can also be used for:

• Scene playback

• Dimmer adjustment

• Master-level control

• Live lighting changes

This physical workflow is particularly useful during events where the operator needs to react immediately instead of navigating multiple software menus.

Blackout for Immediate Stage Control

A dedicated blackout function provides immediate control when the stage needs to go dark.

Blackout can be useful during:

• Performance transitions

• Artist entrances

• Stage resets

• Presentation changes

• Emergency production cues

• DJ drops

The feature allows the operator to cut lighting output quickly while preserving the programmed show data.

Fixture Re-Addressing and Movement Correction

Stage layouts often change between productions.

The console supports fixture address reconnection, pan/tilt exchange and channel-output reversal, helping programmers adapt existing shows to different fixture orientations.

This matters when moving heads are installed:

• Upside down

• On different truss positions

• Mirrored across a stage

• In a new venue layout

Rather than rebuilding the entire programme, selected fixture behaviour can be corrected from the console.

Backlit LCD for Programming and Live Operation

The controller uses a backlit LCD display to show programming and operational information.

The display assists with tasks such as:

• Channel editing

• Fixture selection

• Scene programming

• Effect setup

• Menu navigation

• Playback management

English and Chinese display options are supported.

The illuminated screen is particularly useful in front-of-house positions, control booths and production areas where ambient light may be intentionally kept low.

USB Backup and Fixture Data Management

FAT32 USB storage is supported for data backup, fixture-library management and system upgrades.

For production companies, keeping a copy of show data is important because programming can represent many hours of work.

USB support also allows programming data to be retained between productions rather than rebuilding frequently used shows from the beginning.

The console includes power-off memory so stored information remains available after the unit has been shut down.

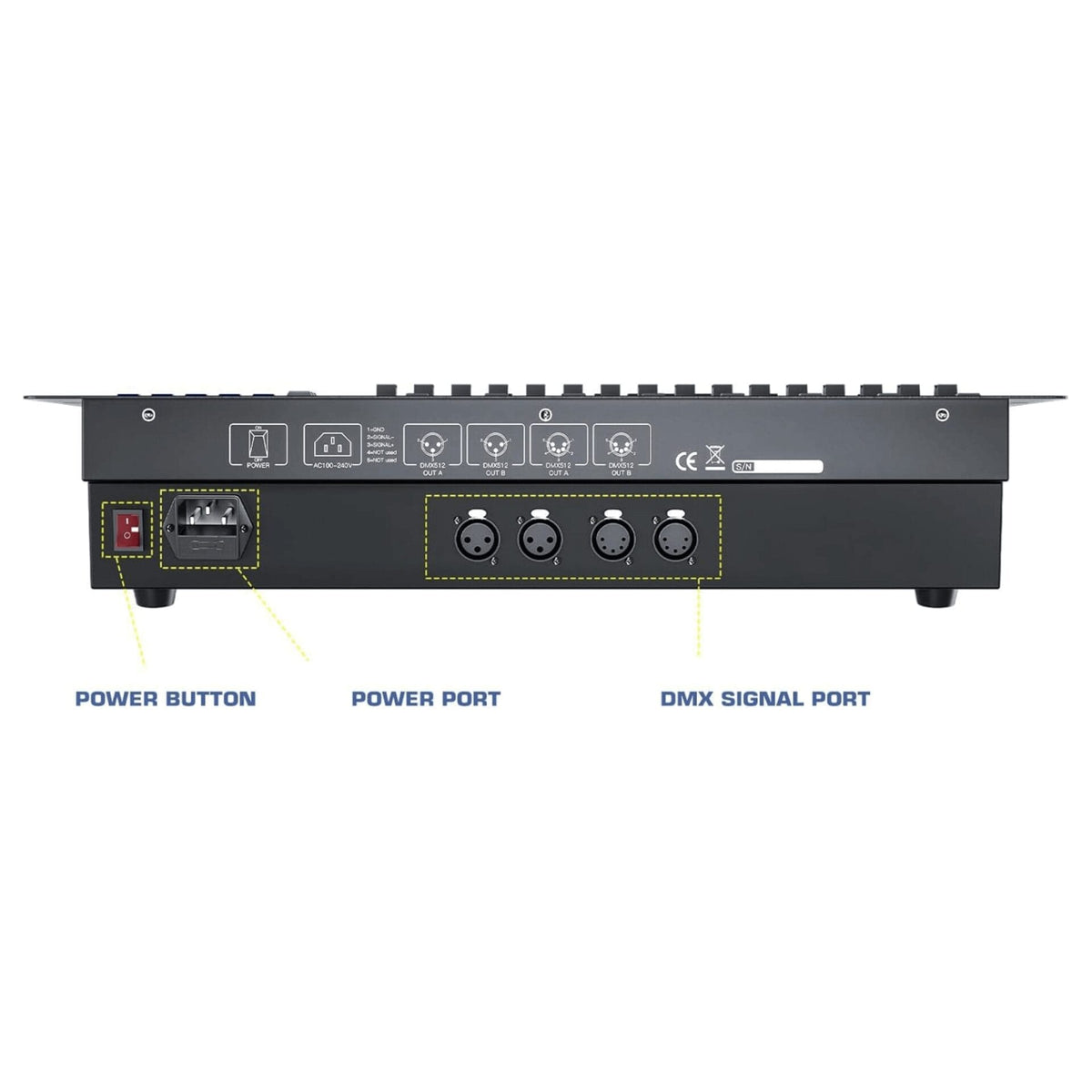

Optically Isolated DMX Output

The DMX signal output is optically isolated, adding electrical separation between the console's internal electronics and the downstream DMX line.

Optical isolation is useful in professional systems where many fixtures, long signal runs or multiple electrical circuits are present.

It does not replace correct DMX cabling and termination, but it adds another layer of protection between the control desk and connected lighting equipment.

AC100–240V Power for UAE Event Systems

The console accepts AC100–240V at 50/60Hz.

This operating range includes the UAE's standard 220–240V / 50Hz mains supply, allowing the controller to work within professional UAE event-power systems.

The supplied plug type should still be confirmed from the actual Stagify inventory before the final Shopify page is published.

Best For

The 1024-channel stage lighting console is especially suited to:

• Concert and live-event production

• Wedding stages and hotel ballrooms

• Nightclubs and DJ venues

• Theatre lighting

• Corporate events

• Houses of worship

• School and auditorium stages

• AV installation companies

• Event-production companies

• Professional lighting rental businesses

What's Included & Compatibility

The core product is:

• 1 × 1024 DMX Stage Lighting Console

The controller is designed for use with compatible:

• DMX512 beam moving heads

• Wash moving heads

• Spot moving heads

• LED PAR lights

• Strobes

• Stage effect fixtures

• Dimmer systems

• DMX-compatible LED fixtures

• Professional DMX signal cabling

The supplier also documents support for FAT32 USB storage.

Any USB drive, power cable, flight case or additional accessories should only be listed as included once the exact Stagify package contents are confirmed.

How Many Lights Can the 1024 DMX Controller Control?

The console supports up to 96 compatible intelligent fixtures.

The actual number depends on the DMX channel requirements of each fixture and the total 1024-channel capacity.

What Is the Difference Between a 512 and 1024 DMX Controller?

A 512-channel console provides 512 DMX addresses, while this controller provides 1024 channels of control capacity.

The larger capacity is useful when a lighting rig contains more fixtures or advanced moving heads with larger DMX personalities.

Does the Console Work with Moving Head Lights?

Yes.

It is designed to control compatible DMX moving heads and supports parameters including pan, tilt, dimmer, colour, gobo, iris and focus, depending on the selected fixture profile.

How Many Scenes Can Be Saved?

The console stores up to 60 scenes.

Up to 10 scenes can operate simultaneously, while multi-step programming supports up to 600 steps.

Does It Support Custom Fixture Profiles?

Yes.

The console supports Pearl R20-format fixture libraries and allows users to create custom fixture profiles for compatible equipment that is not already available in the library.

Can Show Files Be Backed Up?

Yes.

The controller supports FAT32 USB storage for data backup and fixture-library management.

Power-off memory also retains programmed data after the console is shut down.

Does the 1024 DMX Console Work in the UAE?

Yes. Its AC100–240V, 50/60Hz input range covers UAE 220–240V / 50Hz mains power.

The physical plug supplied with Stagify stock should be verified before publication.

Is This Controller Suitable for Beginners?

The physical faders, rotary controls and built-in graphic generator make common lighting functions accessible, but a 1024-channel console is primarily designed for users who need fixture patching, DMX addressing, scenes, effects and multi-step programming.

Operators should understand basic DMX512 concepts to use its full capabilities effectively.

Installation & Operating Requirements

The console should be positioned on a stable, dry operating surface where the lighting operator has clear access to the faders, controls and display.

Use professional DMX cables for signal connections rather than ordinary microphone cables when building larger or critical lighting networks.

DMX addressing should be checked before the show to prevent fixtures from overlapping unintentionally.

For installations with many fixtures, plan channel allocation before programming so that the complete system remains within the console's 1024-channel capacity.

Power, signal and USB connections should be inspected regularly in rental and touring environments.
