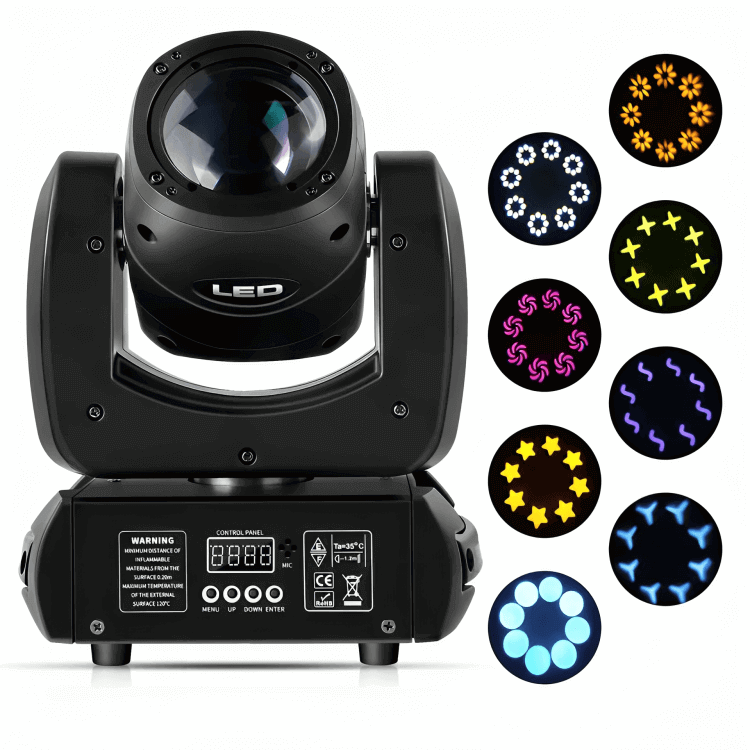

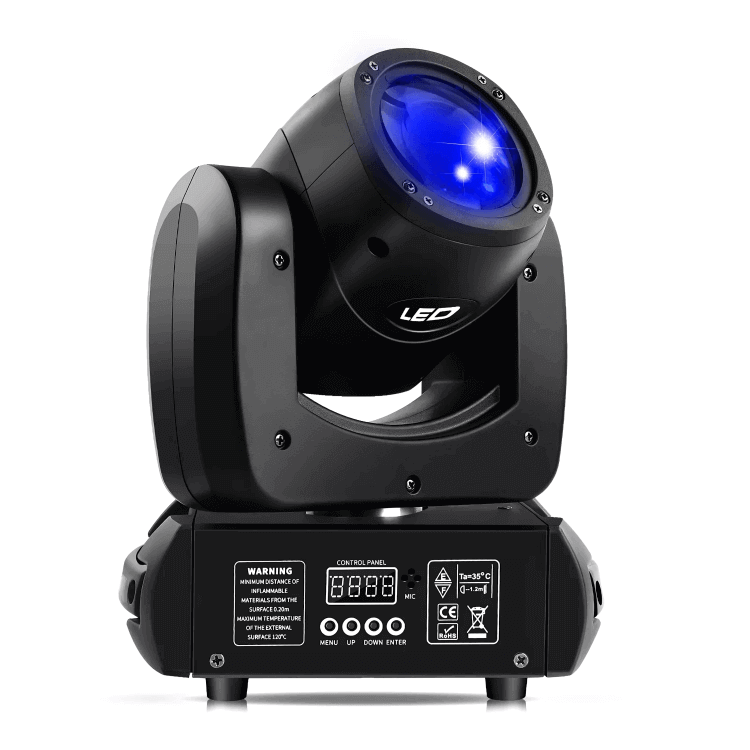

100W Stage Moving Head Beam Light

100W Stage Moving Head Beam Light for DJ & Events UAE

The 100W Stage Moving Head Beam Light is a compact LED moving-head fixture designed to create narrow, high-intensity aerial beams for stages, DJ setups, weddings, clubs and live events. A 100W white LED source, approximately 2° beam angle, DMX512 control and 540° pan movement make this type of fixture suitable for dynamic professional lighting setups where sharp beam effects and fast movement are required.

Technical Specifications

These specifications use features consistently documented across professional 100W LED beam fixtures. Exact gobo count, colour-wheel count, prism configuration, DMX channel count, tilt range, dimensions and weight vary significantly between 100W models, so they have not been assigned to this Stagify SKU without its exact model datasheet.

Sharp 100W LED Beam for Stage Effects

The 100W LED light source is designed to produce a concentrated beam rather than a wide wash of light. With an approximately 2° beam angle, the fixture creates narrow shafts of light that become especially visible when combined with haze or fog.

This makes the moving head particularly effective for building aerial lighting effects above stages, dance floors and DJ booths.

Compared with a PAR light or wash fixture, a beam moving head concentrates its output into a much tighter angle. Instead of illuminating a broad area, it creates defined moving beams that can sweep across a venue and form coordinated patterns when several fixtures are programmed together.

The LED source also eliminates the lamp-replacement requirements associated with traditional discharge-lamp moving heads, making this format practical for event companies and venues that regularly operate lighting equipment.

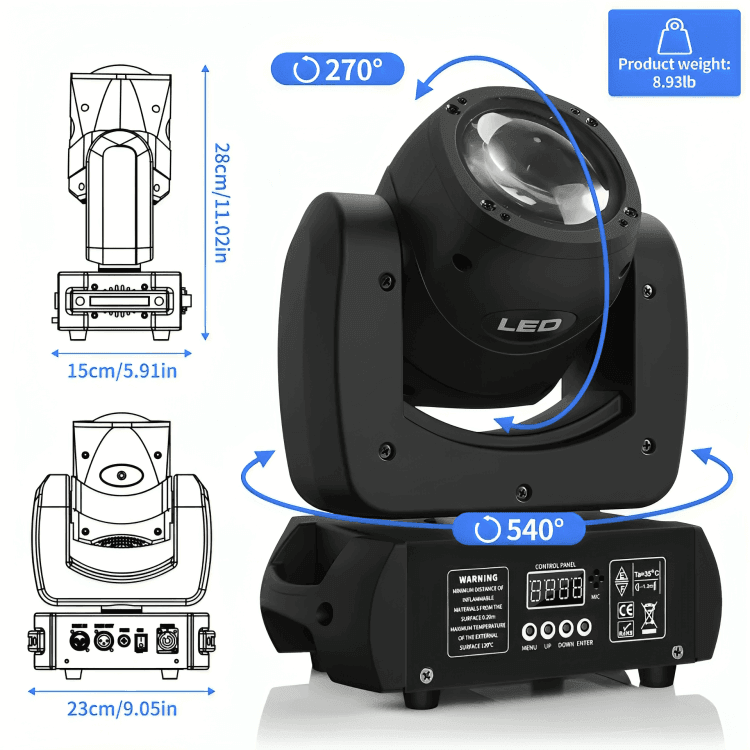

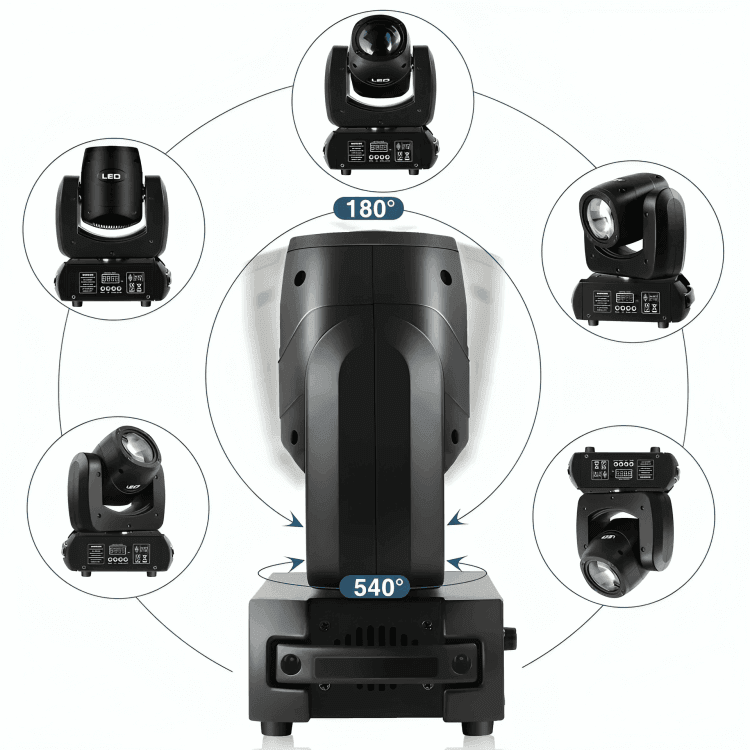

540° Pan for Dynamic Moving Effects

The fixture provides up to 540° horizontal pan movement, allowing lighting programmers to move the beam across a wide stage or dance-floor area.

Professional 100W beam fixtures also use precision movement control to create smoother positioning when operating through DMX. Multiple units can therefore be programmed into symmetrical movements, sweeps, chases and crossing-beam sequences.

For weddings and corporate events, slower movement can be used for entrances and presentation moments. DJs, clubs and live performances can use faster movement patterns to create energetic lighting effects synchronised with music.

DMX512, Auto and Sound-Active Control

The moving head supports the main operating modes used in professional and mobile stage-lighting systems.

DMX512 gives a lighting operator control from a compatible DMX console. Depending on the exact fixture configuration, functions such as movement, dimming, strobe, colour, gobos and beam effects can be controlled from the lighting desk.

Auto mode allows the fixture to run built-in programs without a dedicated controller.

Sound-active mode allows lighting sequences to react to music, making it particularly useful for DJs, parties and smaller entertainment installations.

Master/Slave operation can synchronise compatible units so several fixtures perform coordinated effects without individually programming every light.

Narrow Beam for Visible Aerial Lighting

The approximately 2° optical beam is one of the main differences between this fixture and a conventional moving-head wash.

A narrow beam produces a concentrated shaft of light that remains visually defined over distance. When haze or fog is present, the full path of the beam becomes visible through the air.

This effect is widely used for:

• Stage entrances

• DJ performances

• Concert lighting

• Wedding stages

• Dance floors

• Club installations

• Corporate launches

• Entertainment venues

For larger productions, several 100W beam fixtures can be positioned across a truss or stage to create coordinated aerial patterns.

Variable Dimming and Strobe Effects

Electronic 0–100% dimming provides control from blackout through to full output.

Variable strobe effects can add faster flashes and rhythmic accents during music-driven sections of a show. These functions can be combined with movement and other built-in optical effects through DMX programming.

For slower event moments, the same fixture can be programmed with controlled movements and lower intensity rather than fast club-style effects.

Compact Moving Head for Mobile Production

A 100W LED moving head sits below larger 230W, 295W and 350W-class beam fixtures in power and scale.

That makes it particularly practical for:

• Mobile DJs

• Smaller stages

• Wedding production companies

• Hotel ballrooms

• Lounges and clubs

• Rental inventories

• Schools and theatres

• Corporate AV setups

For productions that do not require the throw and intensity of larger moving heads, the 100W format provides beam effects in a more compact fixture.

Best For

The 100W Stage Moving Head Beam Light is suitable for:

• Wedding stages and entrances

• DJs and mobile entertainment

• Nightclubs and lounges

• Concerts and live performances

• Hotel ballrooms

• Corporate events

• School and theatre stages

• Exhibition entertainment

• Event-production companies

• AV rental businesses

• Permanent entertainment installations

Truss and Lighting Stand Installation

The moving head can be positioned on a suitable stage surface or mounted to compatible truss and lighting-support systems using the appropriate bracket and clamp.

For overhead installation, professional mounting hardware and an appropriate secondary safety cable should be used.

Fixture weight, truss loading, clamp capacity and the complete support structure must be considered before suspending stage-lighting equipment.

What's in the Box & Compatibility

A typical professional configuration includes:

• 1 × 100W LED moving head beam light

• 1 × mounting bracket

• 1 × power cable

The fixture can be integrated with compatible:

• DMX512 controllers

• DMX cables

• Stage truss systems

• Lighting stands

• Safety cables

• Fog machines

• Haze machines

• Other moving-head fixtures

• LED PAR and wash lights

Exact supplied accessories should follow the Stagify package configuration.

How Powerful Is a 100W Moving Head Beam Light?

The fixture uses a 100W white LED source designed around a narrow beam optical system.

Its practical advantage comes from concentrating the LED output into an approximately 2° beam rather than spreading it across a wide area. This creates clearly defined aerial effects for small and medium event environments.

What Is the Beam Angle?

Professional compact 100W beam fixtures commonly use an approximately 2° beam angle.

The narrow angle creates a concentrated shaft of light and makes the fixture suitable for aerial stage effects.

Does It Work With a DMX Controller?

Yes. The fixture uses the DMX512 control standard and can be integrated into a compatible lighting-control system.

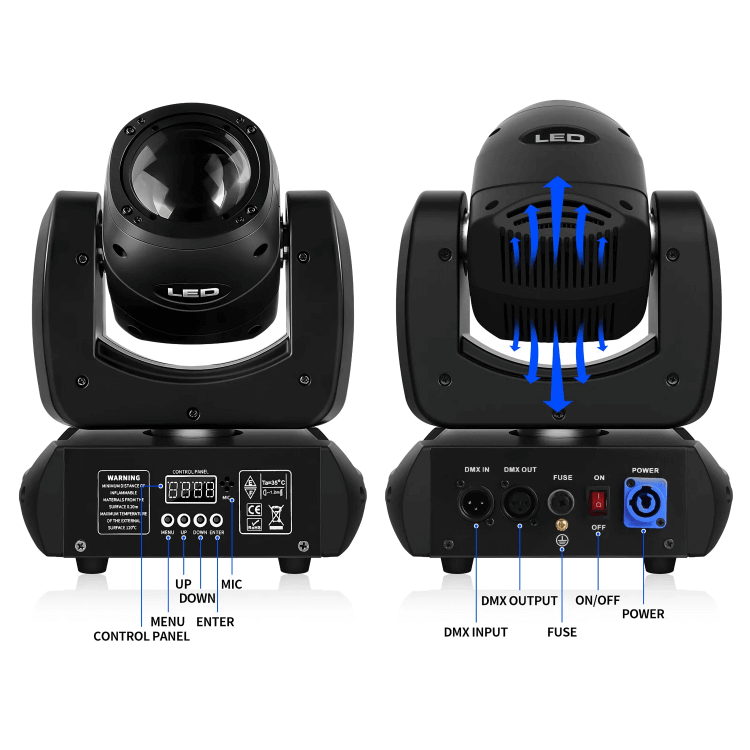

Professional models generally provide 3-pin XLR DMX input and output for connecting multiple fixtures in a DMX chain.

Can I Use It Without a DMX Controller?

Yes. This class of moving head commonly supports Auto, Sound Active and Master/Slave modes in addition to DMX control.

This makes it practical for DJs and smaller setups where a dedicated lighting console is not always required.

Is a 100W Beam Moving Head Suitable for Weddings?

Yes. A 100W moving-head beam can be used for wedding entrances, dance floors, stage backgrounds and entertainment lighting.

Using several fixtures across a stage or truss creates a more balanced and visually coordinated result than relying on a single unit.

Should I Use Fog or Haze With the Beam Light?

A beam fixture can operate without atmospheric effects, but haze or fog makes the path of the beam visible through the air.

For events where defined aerial beams are required, pairing the moving head with a suitable haze or fog machine can significantly improve the visual effect.

Electrical & Installation Requirements

The fixture class operates on a multi-voltage AC supply around 100–240V, 50/60Hz, which includes the UAE's electrical supply range.

The exact plug supplied with the Stagify unit should be confirmed before publication.

For overhead installation, use an appropriate lighting clamp and secondary safety attachment. Installation should be performed by personnel familiar with professional stage-lighting and rigging equipment.

Order 100W Moving Head Beam Lights in the UAE

Stagify supplies professional stage lighting and event-production equipment across Dubai and the UAE for DJs, wedding companies, venues, AV installers, rental houses and production contractors.

The 100W Moving Head Beam Light can be combined with compatible DMX controllers, truss systems, haze machines and additional moving heads to build coordinated event-lighting installations.

Contact Stagify for project requirements, multiple-unit orders and professional stage-lighting enquiries.
